10 Most Heat Resistant 3D Printing Materials

This article explores the most suitable 3D printing materials for high-temperature applications and their printing technologies, key features, and common applications.

author avatar

12 Jun, 2023. 5 min read

This article was first published on

xometry.eu

One of the many desirable characteristics of 3D printing as a manufacturing technology is its ability to produce fully functional parts for numerous applications across different industries and in various operating conditions. 3D printed parts are often used in high-temperature applications. However, in order to function properly in such environments, they need to be made from heat-resistant materials. This article covers some of the best heat-resistant 3D printing materials for use in high-temperature applications.

Best heat-resistant 3D materials

Acrylonitrile Butadiene Styrene (ABS)

ABS is capable of withstanding temperatures of up to 100°C. Its heat deflection temperature is between 88-89°C and its melting point of about 200°C. ABS is also known for its toughness and resistance to impact. These allow for the printing of parts to be subjected to high-stress applications. It has a glass transition temperature of about 105°C and is highly resistant to aqueous, phosphorus and hydrochloric acids.

  • Technology: Fused Deposition Modeling (FDM)
  • Key Features: Chemical resistance, impact resistance
  • Common applications: Drain/waste pipes, inhalers, housing for electrical components

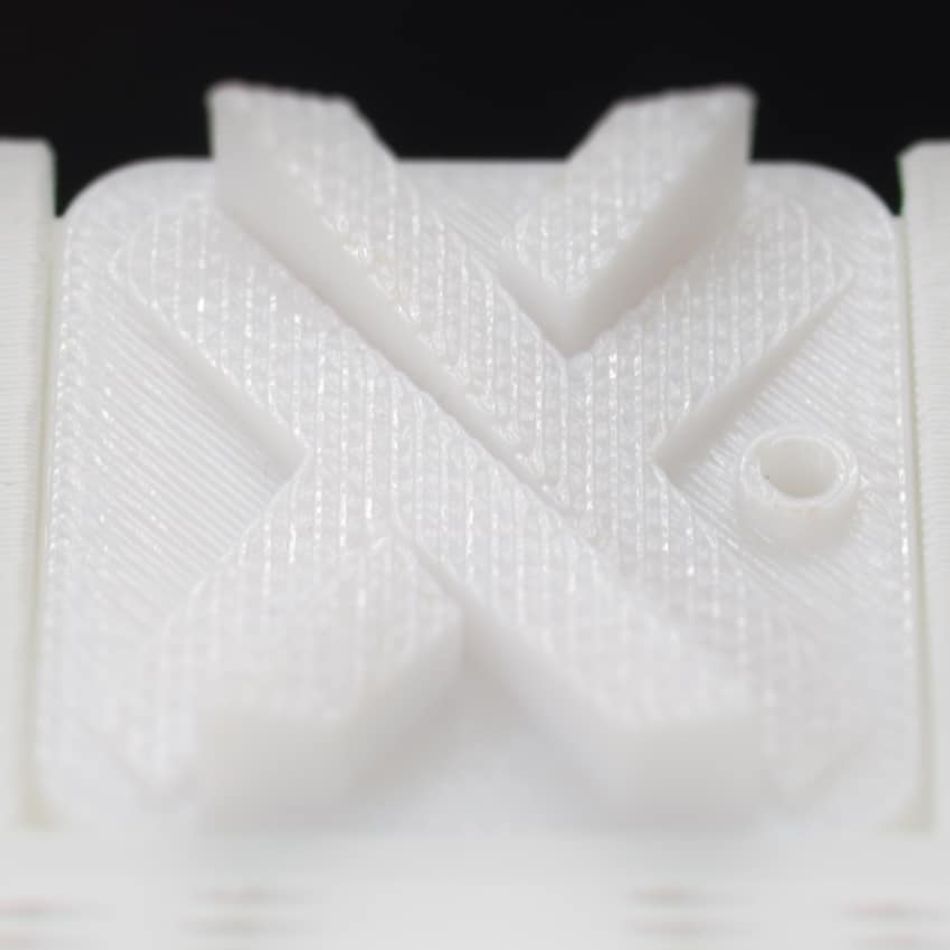

FDM 3D printed tile with ABS

ULTEM 1010

ULTEM 1010 has the highest heat resistance, chemical resistance and tensile strength compared to other FDM thermoplastics. It is available in transparent, opaque and glass-filled grades. This material has broad application in custom tools for metal or plastic parts fabrication, medical tools and temperature resistant dies.

It is a high-performance polyetherimide thermoplastic with a melting point of 340°C and a glass transition temperature of 216°C. ULTEM 1010 has the lowest coefficient of thermal expansion. It has food-contact and biocompatibility certifications, which makes it ideal for applications in the food industry.

  • Technology: Fused Deposition Modeling (FDM)
  • Key features: Excellent heat resistance, tensile strength, low coefficient of thermal expansion
  • Common applications: Medical tools, temperature resistant dies

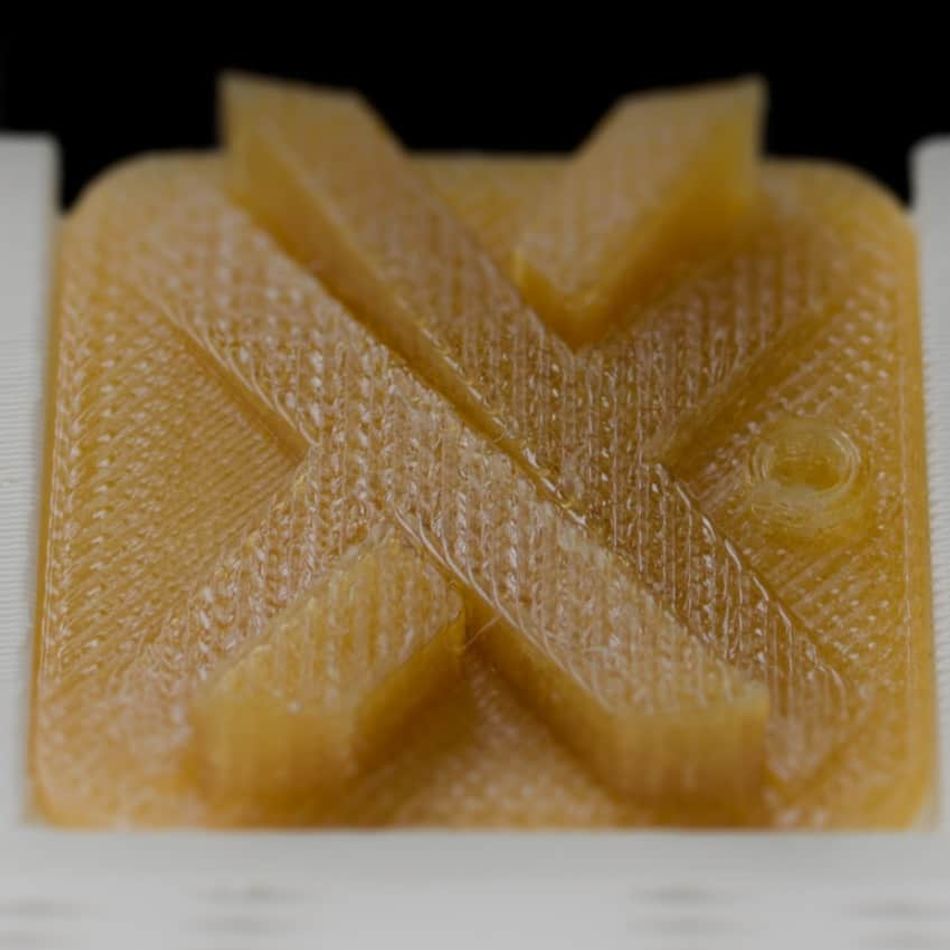

FDM 3D printed tile with ULTEM 1010

CE 221 (Cyanate Ester)

This material is known for its high-temperature resistance and rigidity. Due to its high heat-deflection temperature, it can be safely applied in applications with high thermal requirements.

The CE 221 resin has long-term thermal stability with a glass transition temperature of about 225°C and a heat deflection temperature of 231°C. This material is capable of withstanding high pressure and giving a highly precise surface finish.

  • Technologies: Carbon DLS
  • Key Features: Thermal stability, rigid, high pressure resistance
  • Common applications: Industrial products, electronic assembly components, fluid manifolds

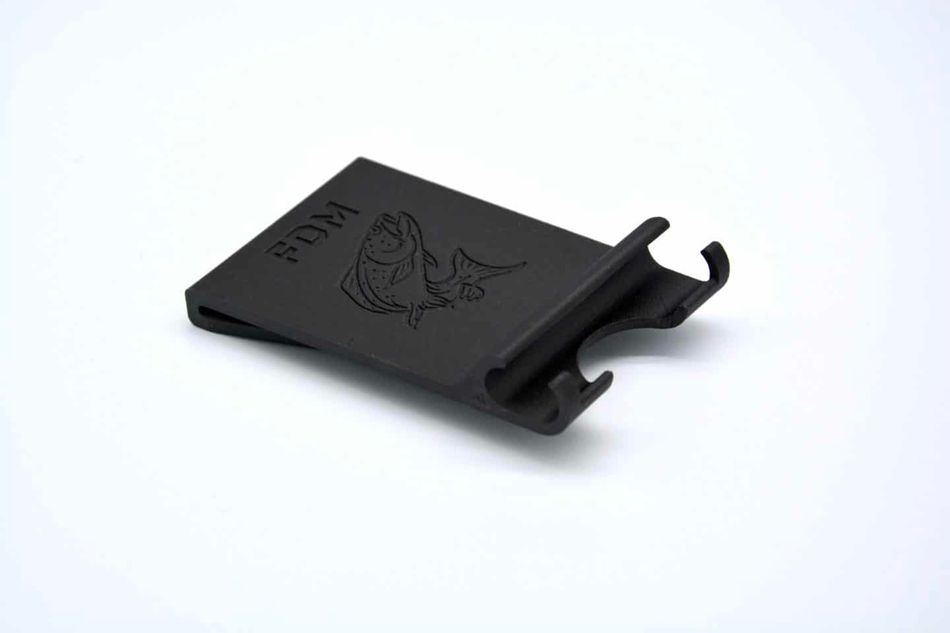

Carbon DLS 3D printed tile with CE 221

ULTEM 9085

This has a high strength–to–weight ratio, high impact strength with good heat resistance. ULTEM 9085 is highly flame retardant. It is used in the production of prototypes as well as tools in the aerospace and automotive industries. This has a glass transition temperature of 186°C and a heat deflection temperature of 153°C.

ULTEM 9085, with its superior mechanical strength and lightweight, is suitable for the production of end-use components.

  • Technology: Fused Deposition Modeling (FDM)
  • Key Features: Flame retardant, impact resistance
  • Common applications: Jigs, fixtures, composite moulds

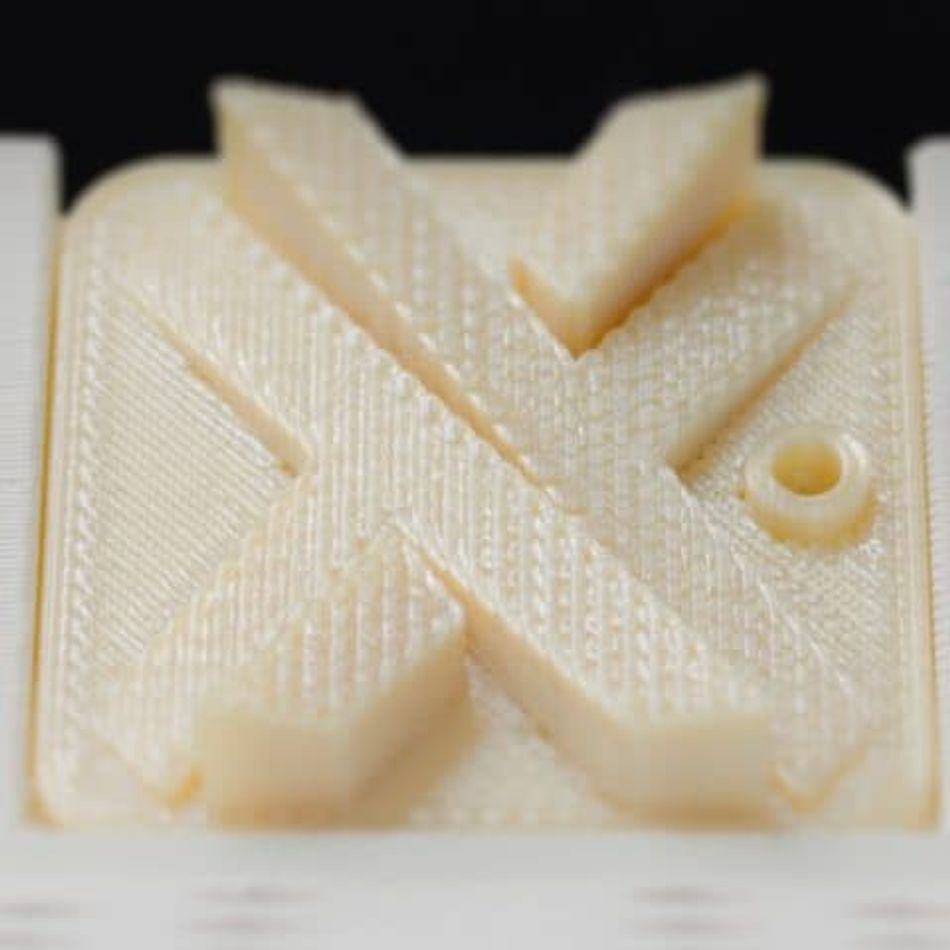

FDM 3D printed tile with ULTEM 9085

Polycarbonate (PC)

This material has a crystalline melting point of about 230°C – 260°C and a glass transition temperature of 147°C. Polycarbonate is a tough and amorphous material with high impact strength, stability and good electrical properties. It has a wider temperature range of usage with a heat deflection temperature of 140°C. It is widely used for the production of safety helmets, lenses for car headlamps and bulletproof glasses.

  • Technology: Fused Deposition Modeling (FDM)
  • Key Features: Translucence, pliability
  • Common applications: Plastic lenses in eyewear, protective gear, automotive components

FDM 3D printed tile with polycarbonate

PEEK

It has excellent resistance to harsh chemicals with high mechanical strength and dimensional stability. Its melting temperature is at 343°C and it has a glass transition temperature of 143°C. PEEK has the ability to retain its stiffness at elevated temperatures and can be applied for continuous use at temperatures up to 170°C. It is used in aerospace, oil and gas and semiconductor production.

  • Technology: Fused Deposition Modeling (FDM)
  • Key Features: Chemical resistance, good stiffness, resistance to steam and water
  • Common applications: Semiconductor components, valve and pump components, food processing machinery

PC – Like Heat Resist Translucent / Accura 48

This is a high-temperature resistant material that is best suited for parts that require high strength and stiffness. It is widely used for the manufacturing of prototypes of electronic and lighting components. It provides enhanced feature details.

At 0.46MPa test pressure, PC-Like Heat Resist Translucent has a heat deflection temperature that ranges from 70 – 85°C. This heat deflection can be enhanced to about 135°C with a thermal post-cure.

  • Technology: Stereolithography (SLA)
  • Key Features: Temperature resistance, high strength, stiffness
  • Common applications: Electronic and lighting components

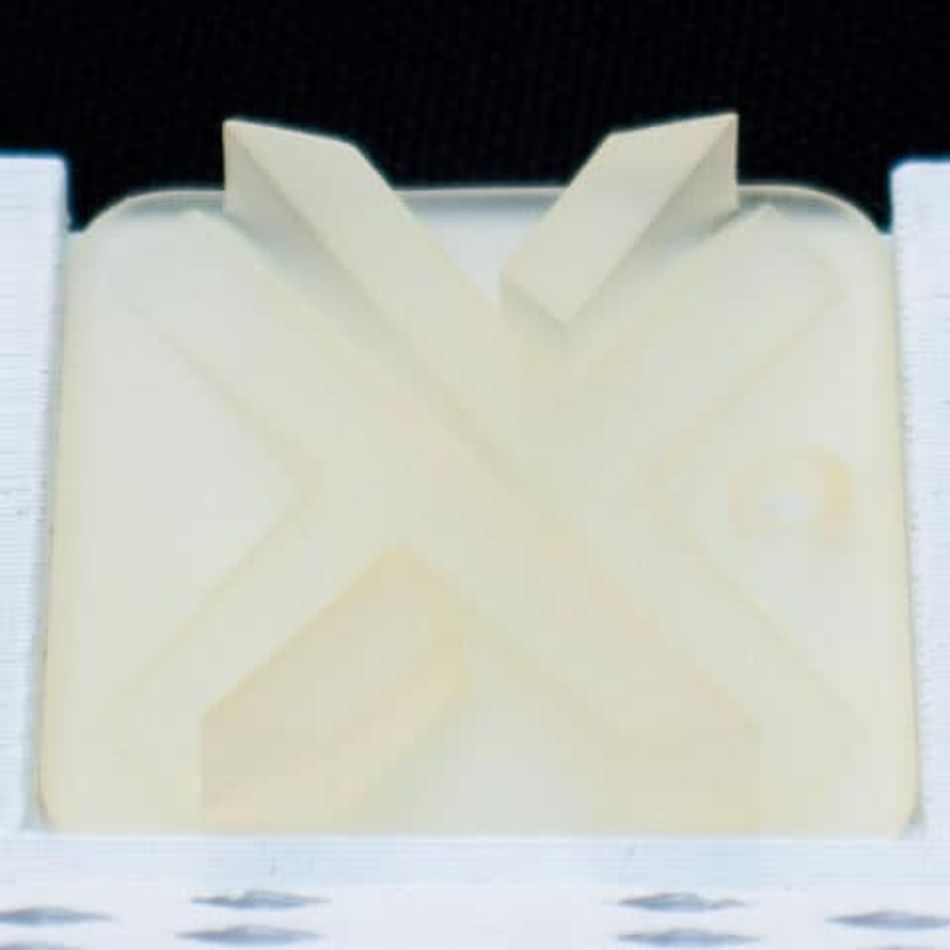

SLA 3D printed tile with PC – Like Heat Resist Translucent / Accura 48

Aluminuum AlSi10Mg

Aluminium AlSi10Mg has excellent strength at elevated temperatures (about 200°C). It has good resistance to corrosion and can be easily polished. It has good workability and good heat crack resistance with a melting point of 670°C. The fatigue strength is excellent at 110N/mm2

Its characteristics allow for complex geometries to be printed and are widely applied in parts for vehicles, machines and aircraft. It has a tensile strength of 450 MPa at room temperature.

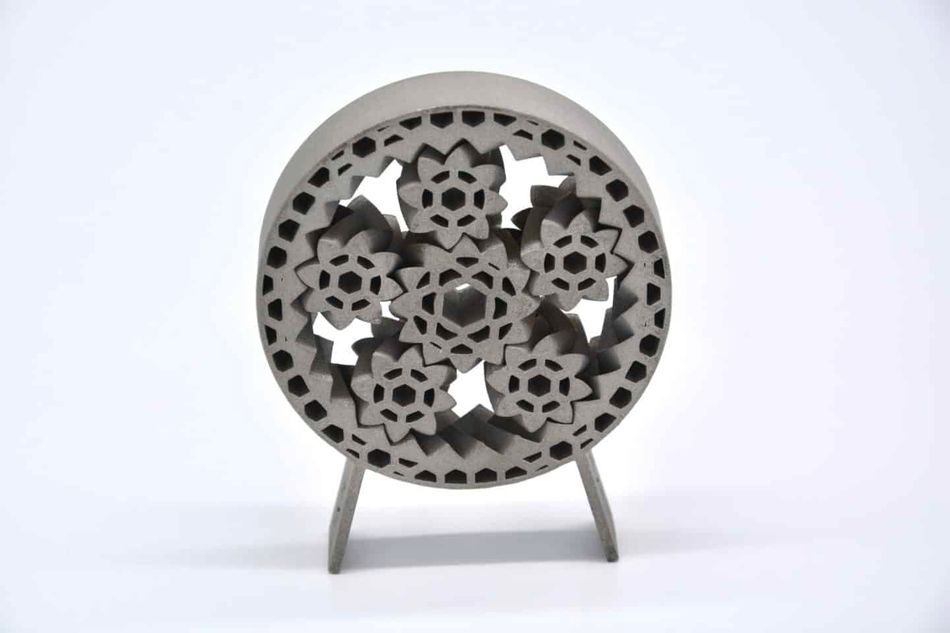

DMLS 3D printed tile with aluminium 1706

Stainless Steel 316L / 1.4404

Stainless steel 316L can be used in continuous service in temperatures of up to 550°C. This material has low carbon content and is chromium-nickel-molybdenum stainless steel with a melting point of 1400°C. It has excellent corrosion resistance and stability against chlorine-based media and non-oxidizing acids. Its corrosion resistance and ductility make it ideal for applications in several industries such as aerospace, medical and automobile.

  • Technology: Direct Metal Laser Sintering (DMLS)
  • Key Features: Corrosion resistance, ductility
  • Common applications: Laboratory equipment, heat exchangers, nuts and bolts

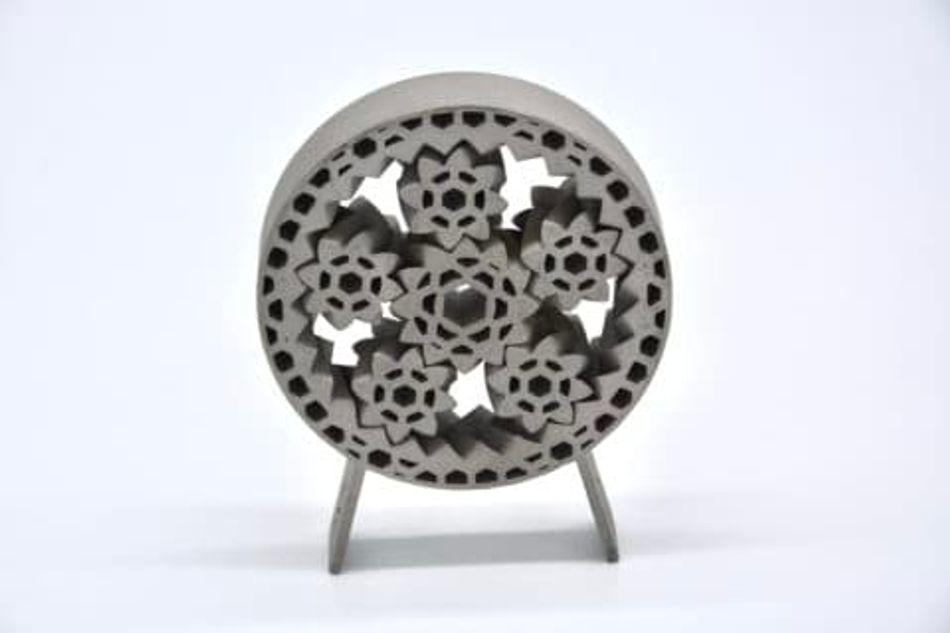

DMLS 3D printed part with stainless steel 316L

Inconel 718 (Nickel-Chromium superalloy)

Inconel 718 is a nickel-chromium based high-strength superalloy. It is resistant to corrosion, extreme pressure and elevated temperatures of up to 700°C. This material melts at about 1400°C. It has a tensile strength of 1035 MPa. However, it is brittle and has good machinability with a hard cutting tool. It is widely applied in manufacturing, military equipment and the aerospace industry.

  • TechnologyDirect Metal Laser Sintering (DMLS)
  • Key Features: Corrosion resistance, brittle, mechanical strength
  • Common applications: Gas turbine engine parts, compressor casings, die holders

Properties of heat-resistant 3D materials

The following table compares the melting point and glass-transition temperature of the 10 best heat-resistant materials for 3D printing:

MaterialMelting pointGlass transition temperatureTensile strength
ABS200°C105°C42.5 – 44.8 MPa
ULTEM 1010340°C216°C105 MPa
CE 221225°C92 MPa
ULTEM 9085186°C71.6 MPa
PC230 – 260°C147°C60 MPa
PEEK343°C143°C110 MPa
Aluminium AlSi10Mg670°C450 MPa
Stainless Steel 316L1,400°C520 – 690 MPa
Inconel 7181,370 – 1,430°C965 MPa
PC – Like Heat Resist Translucent / Accura 48Heat deflection temperature at 0. 46 MPa after thermal post-curing: 170 – 250°CGlass transition temperature UV and thermal post cure: 122°C50 MPa

Heat-resistant 3D printing materials cost comparison

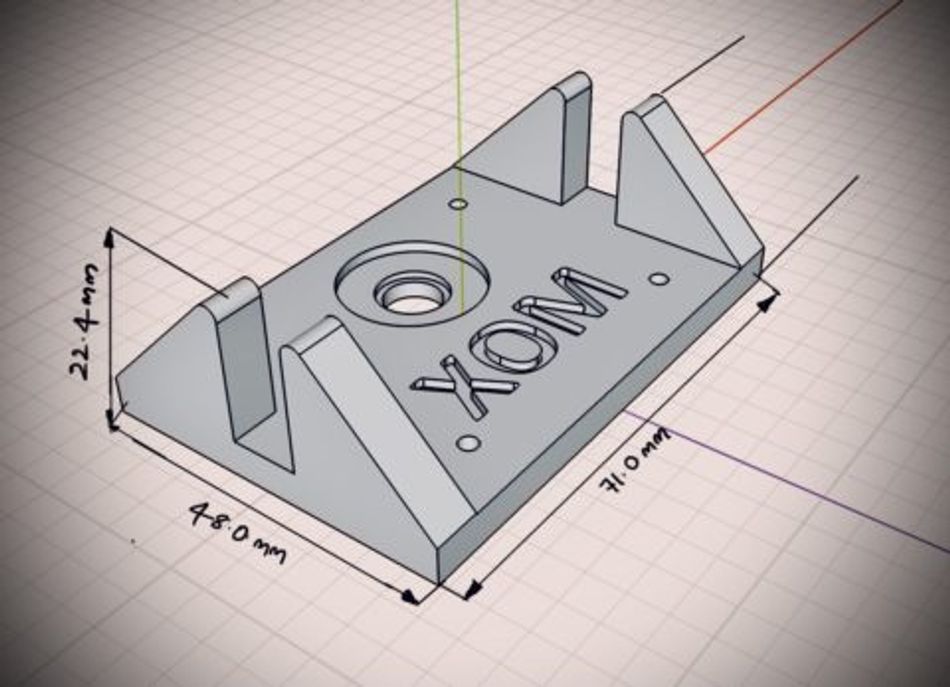

Let’s have a cost comparison of the three resins from Xometry’s quote engine for the CAD model:

Material3D printing technologyCost per one unitUnit cost per 10 piecesUnit cost per 100 pieces
ABSFDM€ 9.13€ 6.34€ 2.57
ULTEM 1010FDM€ 50.03€ 35.80€ 34.61
CE 221Carbon DLS€ 645.21€ 171.58Price on demand
ULTEM 9085FDM€ 53.20€ 23.83€ 13.66
PCFDM€ 34.45€ 25.89€ 25.03
PEEKFDM€ 88.42€ 64.65€ 47.12
PC – Like Heat Resist TranslucentSLA€ 72.87€ 21.64€ 18.03
Aluminium AlSi10MgDMLS€ 174.76€ 89.19€ 87.80
Stainless Steel 316LDMLS€ 387.12€ 294.83Price on request
Inconel 718DMLS€ 487.77€ 333.16Price on request

Conclusion

Xometry Europe offers fast, reliable, and highly accurate 3D printing online services with these technologies and heat-resistant materials. Through our Instant Quoting Engine and our network of over 2,000 manufactures, we ensure that you experience a seamless part production process, from quoting to doorstep delivery.
