Introduction
Diode symbols are essential elements in electronic circuit diagrams, representing diodes and their functions within a circuit. Diodes play a vital role in modern electronics by controlling the direction of current flow, ensuring that circuits operate safely and efficiently. They are used in various applications such as rectifiers, voltage regulators, signal protection, and more, making them indispensable components in electronic design.
Diodes allow current to flow in one direction while blocking it in the opposite direction, making them crucial for controlling current flow and protecting components. Understanding diode symbols is vital for anyone working with electronics, as it enables accurate reading and design of circuit diagrams, ensuring correct component placement and functionality.
Understanding Diode Symbols and Their Meaning
Diode symbols are used in circuit diagrams to represent the function and orientation of diodes visually. These symbols are crucial in communicating how diodes will control the flow of current in an electronic circuit, ensuring correct component functionality.

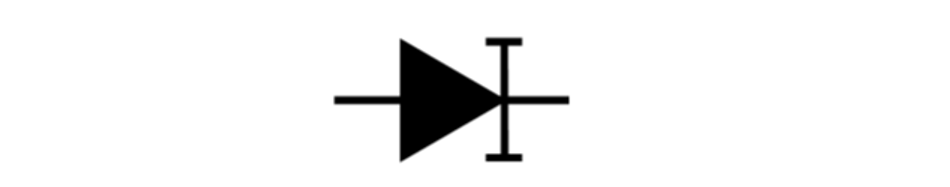

A typical diode symbol consists of an arrow pointing toward conventional current flow (positive to negative) and a line representing the cathode. The arrow indicates the permissible direction of current flow, while the line marks the terminal where the current cannot flow.
The differences between diode symbols help convey their specific applications. For instance, the LED symbol includes rays to indicate light emission, whereas the Zener diode has a bent line to show its unique reverse breakdown property.
Types of Diodes and Their Symbolic Representations

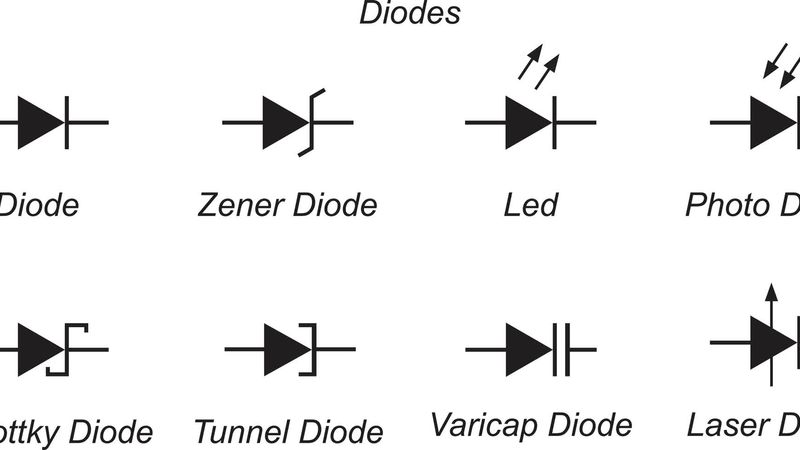

There are several types of diodes, each with a unique symbol and specific function in electronic circuits. Understanding the minor differences between various diode types is important because each type serves a unique function in electronic circuits, making them suitable for specific applications. Below is a breakdown of common types of diodes:

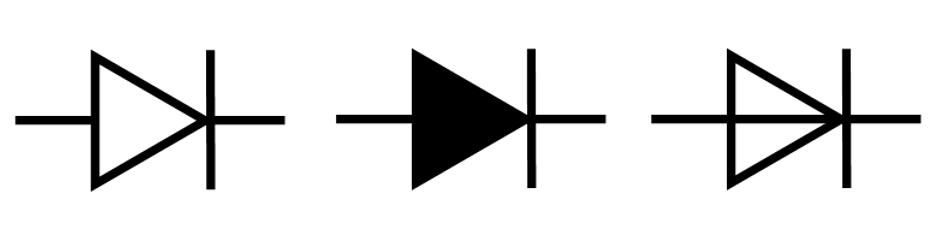

Rectifier Diode - A rectifier diode is has the same symbol as a generic diode. While there may be a few variations, it is almost always represented with a an arrow and a line. These diodes are primarily used for converting alternating current (AC) to direct current (DC). They are crucial in power supplies, where they help in ensuring that the electronic device receives a steady, unidirectional current. Rectifier diodes are also employed in many household appliances, making them an indispensable component for converting high-voltage AC into usable DC.

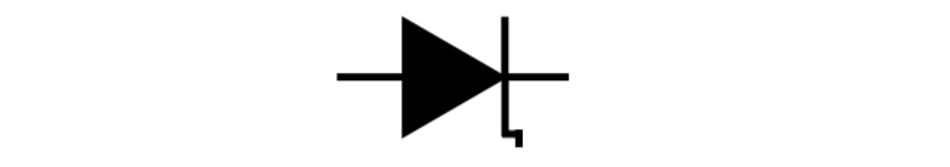

Zener Diode - A Zener diode is represented with an arrow with a bent line. This type of diode allows reverse current when the reverse-bias voltage reaches a specific level. Hence, it is used for voltage regulation applications becuase of its ability to maintain a constant voltage. Therefore, Zener diodes are commonly used for protective applications in sensitive electronic circuits. They are frequently utilized in voltage reference circuits and stabilizers to ensure consistent performance.
LED (Light Emitting Diode) - A Light emitting diode is one of the more commonly used diode symbols and may come with several variations. Typically, an LED symbol features a generic diode with two arrows pointing away from it, signifying the emission of rays. An LED emit light when current flows through it, used for indicators and lighting. LEDs are popular in consumer electronics as visual indicators, such as power-on lights.
LEDs are also widely used in displays, digital clocks, and as energy-efficient light sources in residential and commercial lighting applications, thanks to their long lifespan and low power consumption.
Suggested Reading: Fully 3D-printed flexbile organic LED display hints at a future of desktop manufacturing
Schottky Diode - Schottky diodes are special types of diodes. Their symbol features an additional arrow with a slanted line. Schottky diode is known for its low forward voltage drop, making it useful in high-speed switching applications. Schottky diodes are critical in circuits that require rapid switching, such as in RF and microwave systems. Their lower voltage drop helps improve efficiency in power conversion systems, and they are commonly used in solar panel arrays and battery chargers to minimize power losses.

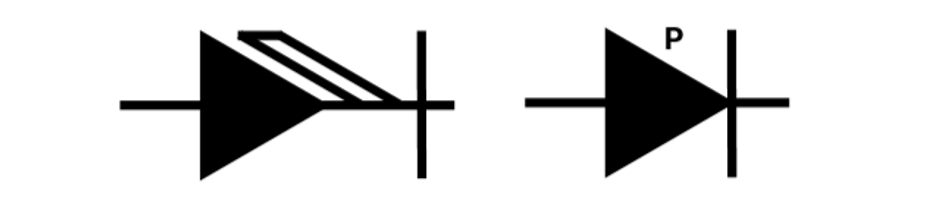

PIN Diode - A PIN Diode is a special type of diode with an additional I-layer. It’s a three-layer device where ‘I’ represents an intrinsic semiconductor layer. The symbol for a PIN diode features a small intrinsic barrier placed between the cathode and the anode. It works under high-level injection and is widely used in RF and microwave applications, attenuators, and photodetectors.
Tunnel Diode - A tunnel diode is made from heavily doped semiconductors and exhibits a tunneling effect. It is a process where the electrons escape the junction due to heavy doping. These diodes have a negative resistance region where the current decreases with the increase in voltage. These diodes are commonly used in oscillator applications and high-frequency operations. They are a regular part of trigger circuits, television tuners, and oscilloscopes.
Varactor/ Varicap Diode - A varicap diode is a voltage-controlled capacitor diode featuring variable PN junction capacitance. It operates in a reverse-bias state as the thickness of the barrier controls the capacitance. The change in capacitance also depends on the doping profile. Varactors have many symbols and are commonly used in tuning applications, oscillators, and multiplier circuits. They are regularly found in phase locked loops, and frequency modulation circuits.
Transient Voltage Suppression (TVS) Diode - TVS diodes are commonly used for suppression voltage spikes that are typically induced on connecting wires. They are used as a clamping device which shunts excessive current.

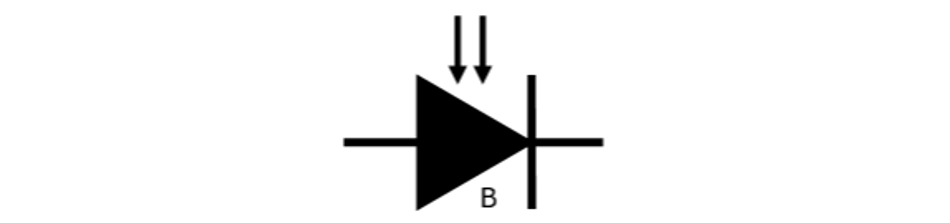

Photo-Diode - A photodiode converts light into electrical current. When light strikes the photodiode's semiconductor material, it generates electron-hole pairs. These charge carriers are then collected to produce an electrical current, proportional to the intensity of the incident light. This principle is used in a wide range of applications, such as fiber-optic communication systems, digital cameras, remote control devices, light meters, and solar cells. Several types of photo diodes are commonly used such as bi-directional and common cathode photo diodes.
Laser Diode - A laser diode is a semiconductor device that emits light in the form of a laser beam. When an electric current is passed through the diode, it stimulates the emission of photons, resulting in coherent light amplification. This amplified light is emitted as a narrow, intense beam. Laser diodes are widely used in various applications, including optical fiber communication, laser pointers, barcode scanners, laser printers, and medical devices for surgery and therapy.
Magnetically Sensitive Diode - A magnetically sensitive diode is a relatively new device that allows the unidirectional flow of magnetic fields. Unlike traditional electrical diodes, which control the flow of electric current, magnetic diodes control the flow of magnetic flux. This innovative technology has the potential to revolutionize various fields, including electronics, energy, and information technology. By enabling precise control over magnetic fields, magnetic diodes could lead to the development of more efficient and powerful devices.

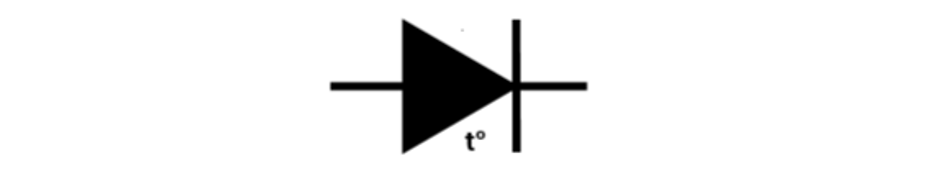

Thermal Diode - A thermal diode conducts heat more efficiently in one direction than the other. This directional heat flow is achieved through various mechanisms, such as phase change materials or asymmetric structures. Thermal diodes find applications in numerous fields. In electronics, they can be used to efficiently dissipate heat from components, preventing overheating and improving performance. In energy harvesting, thermal diodes can capture waste heat and convert it into useful energy. Additionally, they can be employed in temperature control systems to regulate heat flow and maintain desired temperatures.
Backward Diode - A backward diode is a type of semiconductor diode that exhibits a negative resistance characteristic over a specific voltage range. This means that as the voltage across the diode increases, the current through it decreases. This unique property makes backward diodes useful in various electronic circuits, including oscillators, mixers, and frequency multipliers. By exploiting their negative resistance behavior, these devices can generate and amplify signals at high frequencies. In the forward mode, it operates as a tunnel diode and in the reverse mode, it operates as a Zener diode.
Step Recovery Diode - A step recovery diode, also known as a snap diode, is a specialized type of diode that exhibits a unique characteristic of storing charge during forward conduction and releasing it rapidly during reverse recovery. This rapid release of charge results in a sharp, step-like current pulse. This property makes step recovery diodes ideal for generating high-frequency signals, particularly in microwave and millimeter-wave applications. They are commonly used in frequency multipliers, pulse generators, and mixers, where their ability to produce fast-rising and falling edges is essential.
How to Read and Interpret Diode Symbols in Circuit Diagrams
Diodes in circuit diagrams are typically positioned to indicate the direction of current flow, which is represented by the arrow in the symbol.
The arrow points from the anode (positive side) to the cathode (negative side), showing the direction of conventional current. The line at the end of the arrow marks the cathode, which is crucial for understanding how the diode will behave in the circuit.

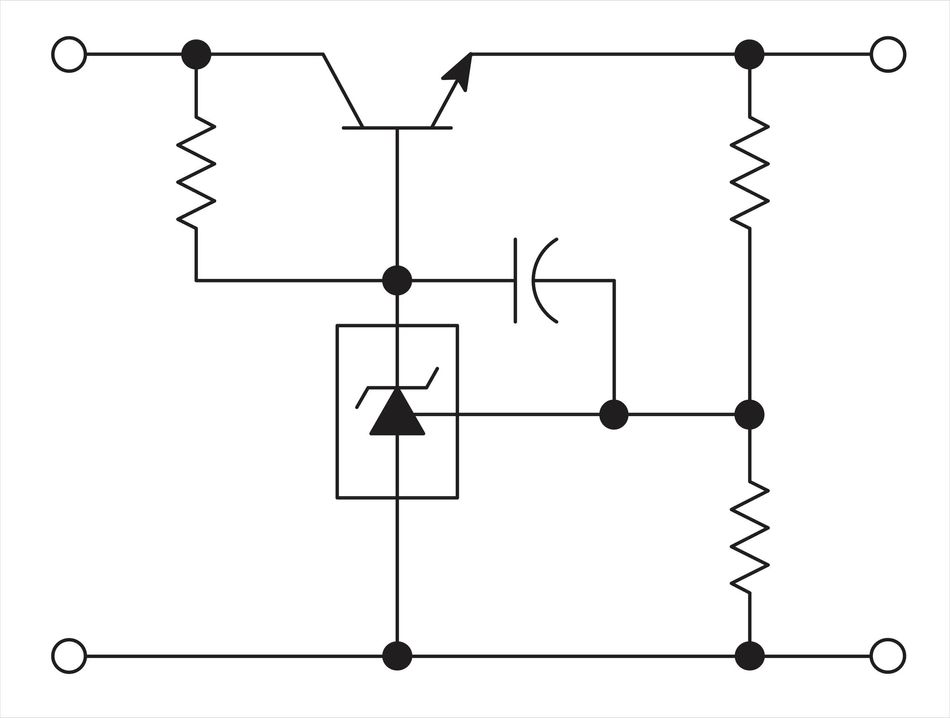

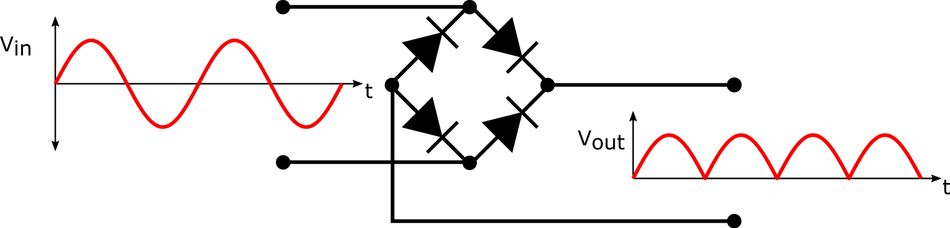

Here is an example of a simple circuit diagram featuring a diode, which helps illustrate the correct orientation and practical placement of diodes in a circuit to ensure proper current flow. The condition is also known as forward-bias configuration.
To interpret diode symbols correctly, follow these steps:
Identify the arrow in the diode symbol – it shows the direction of conventional current flow.
Locate the line marking the cathode – this represents the negative terminal where current cannot flow in the reverse direction.
Determine the type of diode based on additional features of the symbol, such as bent lines for Zener diodes or rays for LEDs.
In terms of current flow, diodes allow current to pass only when the anode is at a higher potential than the cathode, known as forward bias. When reverse-biased, the diode prevents current from flowing. This characteristic is what makes diodes effective at directing current and protecting sensitive components in circuits.
Suggested Reading: Forward Bias, Reverse Bias and their effects on Diodes
Common Mistakes When Interpreting Diode Symbols
Misinterpreting diode symbols is a common issue for beginners, often leading to incorrect circuit functionality, potential component damage, or even complete circuit failure. Below are some typical mistakes and how to avoid them:
Misunderstanding Polarity - Beginners often confuse the anode and cathode, which can lead to incorrect placement in a circuit. The arrow in the symbol indicates the direction of conventional current flow, while the line marks the cathode (negative side). Ensure that the cathode is properly identified to avoid reversing the diode's intended function.
Using the Wrong Type of Diode - Another common mistake is using a standard rectifier diode when a Zener or Schottky diode is required. Each diode type has specific characteristics, such as reverse voltage regulation for Zener diodes or low forward voltage drop for Schottky diodes. Always confirm the requirements of your circuit and use the appropriate type of diode.
Misreading the Symbol for LEDs - Beginners might not recognize the rays on an LED symbol and could confuse it with a standard rectifier diode. LED symbols include rays to indicate light emission, which is a crucial visual distinction. Using a rectifier diode instead of an LED will result in the component failing to emit light.
Incorrect Orientation in Circuit Diagrams - Diodes must be oriented correctly in circuit diagrams to ensure proper current flow. If placed backward, the diode will block current when it should be allowing it to pass. Double-check the orientation of the arrow and line in the symbol to match the intended current path.
Practical Applications of Diode Symbols in Circuit Design
Diode symbols are used in a variety of practical circuit designs to illustrate how current flows through electronic systems and to protect sensitive components. They are commonly found in communication circuits to handle signal modulation, in automotive electronics for voltage regulation and protection, and in power supply circuits to convert AC to DC. Below are some examples of where diodes play a crucial role:
Power Supplies - Diodes are used in rectifier circuits to convert AC voltage to DC voltage. This is essential for powering most electronic devices, which operate on DC.
Signal Protection - Diodes are used for signal protection, such as clamping and voltage suppression, to prevent sensitive components from damage due to voltage spikes.
Current Steering - In digital logic circuits, diodes are used to steer current along specific paths, ensuring correct operation of the circuit.
Reverse Polarity Protection - Diodes are placed in circuits to protect against accidental reverse connections, which could otherwise damage the components.
Voltage Regulators - A Zener diode is commonly used as a voltage regulator. When connected in reverse bias, it maintains a constant voltage across its terminals, even when the input voltage fluctuates. This property is crucial in electronic circuits to protect sensitive components from damage due to voltage spikes.
Tips for Drawing Diode Symbols Correctly
To accurately draw diode symbols in your own circuit diagrams, follow these steps:
Draw the Arrow:
Start by drawing an arrow pointing in the direction of current flow. This represents the anode to cathode direction (positive to negative).
Add the Cathode Line:
Draw a vertical line at the tip of the arrow. This line indicates the cathode (negative terminal).
Add Specific Features for Different Diode Types:
For a Zener diode, add a bent line to the cathode.
For an LED, include rays around the arrow to signify light emission.
Best Practices:
Ensure that all symbols are drawn consistently, with the correct orientation and labeling, especially in complex circuits where multiple diodes are present.
Use a ruler or drawing tool to maintain clean lines and avoid confusion.
Numbered Steps:
Draw the arrow to indicate current direction.
Add the vertical line for the cathode.
Modify the symbol based on the type of diode (e.g., bent line for Zener, rays for LED).
Challenges in Using Diodes in Circuit Design
Using diodes in circuit design comes with several challenges that must be addressed to ensure reliable performance. Below are common challenges and considerations for dealing with them:
Voltage Drops:
Diodes inherently have a forward voltage drop, typically around 0.7V for silicon diodes and 0.3V for Schottky diodes. This voltage drop can lead to reduced efficiency, especially in low-voltage circuits.
Solution: Choose diodes with lower forward voltage drops, such as Schottky diodes, when efficiency is critical.
Heat Management:
During operation, diodes can generate heat due to power dissipation. If not managed properly, this can lead to thermal runaway and damage to the component.
Solution: Use heat sinks or ensure proper ventilation to dissipate heat effectively. Additionally, select diodes with appropriate power ratings for the intended application.
Incorrect Placements:
Diodes must be placed with the correct polarity; incorrect placement can lead to circuit malfunction or component damage. Reverse polarity can prevent current flow or damage other components in the circuit.
Solution: Double-check the orientation of diodes during installation. Use clear labeling on circuit boards to indicate the correct placement.
Technical Dive:
Forward Voltage - The forward voltage (Vf) is the minimum voltage required for the diode to conduct. This voltage varies based on the diode type and material. Silicon diodes typically have a forward voltage of 0.7V, while Schottky diodes have a lower Vf of about 0.3V.
Reverse Breakdown Voltage - When a diode is reverse-biased, it blocks current up to a certain voltage known as the reverse breakdown voltage. If this voltage is exceeded, the diode may conduct in reverse, potentially leading to damage. Zener diodes are designed to operate in reverse breakdown mode at specific voltages, making them suitable for voltage regulation applications.
Conclusion
This guide has covered the fundamentals of diode symbols, including their meanings, types, and practical applications in electronic circuits. Understanding diode symbols is crucial for accurately reading circuit diagrams and ensuring correct component placement, which ultimately leads to effective circuit design. We encourage you to practice interpreting and using diode symbols in your projects to gain confidence and proficiency in circuit analysis and design.
Frequently Asked Questions
What is the significance of the arrow in a diode symbol?
The arrow in a diode symbol represents the direction of conventional current flow, which is from the positive terminal (anode) to the negative terminal (cathode). It indicates the allowable direction of current when the diode is forward-biased.
How do I differentiate between a Zener diode and a standard diode symbol?
A Zener diode symbol has a bent line at the cathode, while a standard diode symbol has a straight line. The bent line in the Zener diode indicates its ability to allow reverse current under specific conditions, which is a key functionality for voltage regulation.
Can diodes be used for voltage regulation?
Yes, diodes can be used for voltage regulation, specifically Zener diodes. Zener diodes are designed to maintain a constant voltage across their terminals when reverse-biased, making them ideal for use in voltage reference and regulation circuits.
What happens if a diode is placed backward in a circuit?
If a diode is placed backward in a circuit, it will be reverse-biased and block current flow. In most cases, this will prevent the circuit from functioning as intended. In some cases, especially with high reverse voltages, the diode may break down and become damaged.
How do I determine the voltage and current ratings of a diode from its symbol?
The diode symbol itself does not provide information about voltage and current ratings. These ratings are typically specified in the device's datasheet or marked on the diode's physical body.
Are there any specific guidelines or standards for drawing diode symbols?
Yes, there are industry standards and guidelines for drawing electronic symbols, including diode symbols. Adhering to these standards ensures consistency and clarity in circuit diagrams. The Common standards include IEC (International Electrotechnical Commission) and IEEE (Institute of Electrical and Electronics Engineers).
