Half Duplex vs Full Duplex: The Role of Transmission Modes in Networking

Introduction

In the realm of data transmission, a clear understanding of half duplex vs. full duplex is essential. These terms refer to the ways in which data can be transmitted between devices in a network. Half duplex allows for data transmission in both directions, but not simultaneously, whereas full duplex allows for simultaneous data transmission in both directions. This fundamental knowledge is key for anyone involved in designing, implementing, or managing communication systems. In this regard, before diving deeper into the half duplex vs. full duplex analysis, let’s clarify some basics.

Understanding Data Transmission Modes- Simplex vs. Half Duplex vs. Full Duplex

Data transmission modes refer to the ways in which data can be sent and received between devices in a communication system. These modes are fundamental to the operation of any network, as they dictate the directionality and simultaneity of data transmission. There are three primary types of data transmission modes: simplex, half duplex, and full duplex. Though we are only concerned about half duplex vs. full duplex, understanding all these data transmission modes is imperative to create a solid foundation.

What is Duplex?

In the context of data transmission, 'duplex' refers to the ability of a communication system to transmit and receive data. The term 'duplex' itself is derived from Latin, with 'du' meaning 'two' and 'plex' meaning 'fold'. Thus, in a duplex communication system, data can be transmitted in two directions.

However, the term 'duplex' on its own does not specify whether this transmission can occur simultaneously or not. This is where the distinctions between 'half duplex' and 'full duplex' come in. These terms further specify the nature of the two-way transmission in a duplex system, with 'half duplex' allowing for two-way transmission but not simultaneously and 'full duplex' allowing for simultaneous two-way transmission. This distinction is critical to the functioning of many modern communication systems, including telecommunication networks, computer networks, and certain wireless communication systems.

Simplex Transmission Mode

Simplex transmission mode is the most basic form of communication in which data flows in one direction only. The term 'simplex' is derived from Latin, meaning 'simple' or 'single', reflecting the one-way nature of this mode. In this mode, one device is designated as the transmitter and the other as the receiver. The transmitter can only send data, and the receiver can only receive data. There is no provision for the receiver to send data back to the transmitter.

One of the main examples of simplex transmission mode is a keyboard connected to a computer. The keyboard can only send data (the keystrokes) to the computer, and there is no provision for the computer to send data back to the keyboard. Similarly, a television receiver and a radio receiver are examples of simplex devices as they only receive signals and do not send any signals back.

Half Duplex Transmission Mode

In a half duplex transmission mode, data can be transmitted in both directions between two devices, but not simultaneously. This mode of communication is like a one-lane road where cars can travel in both directions but not at the same time. In other words, if a device is transmitting data, it cannot receive data at the same time, and vice versa.

Walkie-talkies are a classic example of half duplex communication. When one person speaks (transmits), the other person listens (receives). The person speaking must stop transmitting (pressing the push-to-talk button) in order to allow the other person to respond.

Full Duplex Transmission Mode

In full duplex transmission mode, data can be transmitted in both directions between two devices simultaneously. This mode is akin to a two-lane road where cars can travel in both directions at the same time. In the realm of communication technology, a telephone conversation is a prime example of full duplex communication. Both parties can speak and listen at the same time without having to take turns.

Full duplex communication is utilized in a wide range of applications, from telecommunication networks and mobile communication systems to wireless local area networks (LANs) and broadband data services. Its capacity to handle simultaneous bidirectional communication makes it an ideal choice for these data-intensive applications. However, separate transmission and reception paths can make it less suitable for certain situations, particularly where resources are limited or the communication devices are simple or low-cost.

Half Duplex vs. Full Duplex: A Comparative Analysis

The choice between half duplex and full duplex depends on several factors such as the data transmission requirements, the complexity and cost of the communication system, and the specific use case or application. Let’s dive deeper.

Key Differences

Data Transmission

When comparing half duplex and full duplex modes, the primary difference lies in the direction and simultaneity of data transmission. In half duplex mode, data transmission can occur in both directions but not simultaneously. It's a sequential process, similar to a one-lane road where cars must wait for the road to be clear before moving in the opposite direction.

On the other hand, full duplex mode allows for simultaneous data transmission in both directions. This is similar to a two-lane road, where vehicles can move in both directions simultaneously without waiting.

Cost & Infrastructure Requirement

Full duplex systems require more complex hardware and software to manage data's simultaneous transmission and reception. This is due to the need for separate paths for transmitting and receiving data. On the other hand, half duplex systems can use the same path for both data transmission and reception, alternating as required. This makes the system less complex and potentially more cost-effective, especially for applications where the amount of data to be transmitted is not very high or simultaneous communication is not required.

Efficiency

In terms of efficiency, full duplex mode has the upper hand. It effectively doubles the potential data transmission capacity compared to half duplex mode. On the other hand, the need to alternate between transmitting and receiving reduces overall efficiency in half duplex mode. It is not suitable for scenarios requiring continuous, real-time communication. This is why full duplex mode is commonly used in high-speed, data-intensive applications like broadband data services and wireless local area networks.

However, half duplex mode still has its advantages. It's a more suitable choice for situations where resources are limited, or the communication devices are simple or low-cost. Half duplex communication also works well in environments where the volume of data transmission is low or where the conversation is largely one-sided, such as in walkie-talkies and CB radios.

Collision Detection

Due to shared communication resources, collisions can occur in half duplex if devices attempt to transmit data simultaneously. But as full duplex devices can send and receive data independently, collisions are less likely to occur.

Advantages and Disadvantages of Half Duplex

Half duplex mode, while not as robust as full duplex, has its own set of advantages and disadvantages depending on the specific use case.

Advantages

Simplicity

One of the notable advantages of half duplex mode is its simplicity. It allows communication in both directions using a single path for transmitting and receiving data. This can significantly reduce the complexity and cost of the communication system, making it an appealing option for budget-constrained scenarios or in the development of simpler, more affordable devices. For instance, two-way radios or walkie-talkies, which operate on a press-to-talk, release-to-listen mechanism, employ half duplex mode.

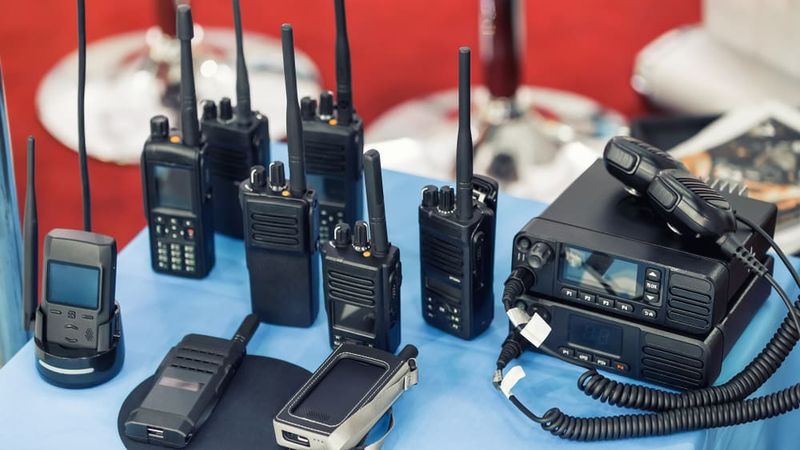

Image Portable radio transceiver sets Caption

Resource savings

Another advantage of half duplex is its suitability in environments where simultaneous transmission and reception are not required. In such cases, the system does not need to expend resources managing simultaneous data flows, thus optimizing efficiency under specific conditions.

However, half duplex mode comes with its own set of disadvantages.

Disadvantages

Unidirectional

The most significant one is the lack of simultaneous bidirectional communication. Since a half duplex system can only transmit or receive data at any given time, it can lead to inefficiencies in situations where real-time, bidirectional communication is necessary. This could manifest as delays in communication, especially in systems where large volumes of data need to be transmitted and received.

High Waiting Time

Furthermore, the waiting times caused by the turn-taking nature of half duplex can lead to lower data throughput compared to full duplex. This could result in slower data transmission rates in data-intensive applications, which might not be suitable for high-speed, real-time communication requirements, especially in fast ethernet.

In conclusion, the utility of half duplex mode is largely context-dependent. It may be the ideal choice for some applications, while it may not be suitable for others. The choice between half duplex and full duplex should consider the specific requirements and constraints of the communication system.

Advantages and Disadvantages of Full Duplex

Advantages

Improved Collaboration

The advantage of full duplex transmission lies in its ability to avoid performance issues related to contention over bandwidth between senders and increased transmission collisions. This is achieved by allowing channels to operate in full-duplex mode, facilitating simultaneous data transmission and reception, thereby optimizing the use of the communication medium. This feature is advantageous in team-based environments, virtual meetings, and collaborative workspaces.

Full-duplex functionality

Full duplex channels often rely on two separate channels between communicating systems. This dual-simplex approach combines pairs of simplex channels, each functioning like a full-duplex channel for bidirectional communication.

Increased Efficiency

Full duplex communication maximizes the utilization of the communication channel, leading to enhanced efficiency. Since data can be transmitted and received concurrently, there is no wasted time waiting for a response. This attribute is particularly beneficial in situations where time-sensitive information needs to be exchanged quickly, such as file transfers or video streaming.

Disadvantages

Complex Hardware Requirements

Implementing full duplex communication requires more complex hardware setups than half duplex or simplex communication. It necessitates using specialized equipment, such as transceivers, that can transmit and receive signals simultaneously. This can result in higher costs and maintenance requirements.

Increased Risk of Collision

In certain scenarios, where multiple devices share the same communication channel, full duplex communication can be prone to collision. Collisions occur when multiple devices attempt to transmit data simultaneously, leading to data corruption or loss. Thus, collision detection and avoidance mechanisms must be implemented to mitigate this risk.

Bandwidth Requirements

Full duplex communication requires higher bandwidth than half duplex or simplex communication. Since data is transmitted and received simultaneously, the communication channel must accommodate the combined upstream and downstream data streams. This requirement may pose challenges when bandwidth availability is limited or costly.

Complexity in Protocol Design

Developing protocols for full duplex communication can be challenging. Ensuring synchronized transmission and reception, managing acknowledgments, and handling potential errors or collisions require careful protocol design and implementation. This complexity can lead to higher development and maintenance efforts.

Real-World Applications

Applications of Half Duplex

The applications of half-duplex communication systems are prevalent and crucial in various fields. Let’s discuss some common applications.

Walkie-talkie

One of the most prominent examples of a half-duplex system is the walkie-talkie, a two-way radio that operates on a push-to-talk basis. When a user wishes to communicate, they press a button, which activates the transmitter and deactivates the receiver. This operation prevents the user from hearing the remote person while speaking. Upon releasing the button, the transmitter is turned off, and the receiver is activated, allowing the user to listen to the remote person. The mechanism ensures that communication only occurs in one direction at a time, hence the term 'half-duplex.'

Citizen Band (CB) Radio

CB radios are popular among truckers, emergency services, and hobbyists. They enable short-distance communication and work in half-duplex mode, where users take turns transmitting and receiving messages.

citizen band radio station with microphone

Two-Way Radio Systems

Many professional two-way radio systems, such as those used by police, fire departments, and public transportation, operate in half-duplex networks. Users can speak and listen, but not simultaneously.

Internet Relay Chat (IRC)

IRC is a text-based communication protocol used for group chat and real-time discussions over the internet. While IRC clients can support multiple simultaneous conversations, the communication itself is half-duplex, with users taking turns typing and reading messages.

Push-to-Talk (PTT) Applications

PTT applications, often used in industries like logistics and field services, allow users to communicate with one another via smartphones or other devices. They typically operate in half-duplex mode, emulating traditional walkie-talkie functionality.

Air Traffic Control

Air traffic control communication involves pilots and air traffic controllers communicating critical information. It typically operates in half-duplex mode, with controllers and pilots taking turns transmitting and receiving messages.

Amateur Radio (Ham Radio)

Amateur radio operators communicate with each other using a wide range of frequencies and modes, including half-duplex voice transmissions. Ham radio enthusiasts often participate in contests, emergency communications, and experimentation.

Applications of Full Duplex

The potential of full-duplex communications opens up possibilities for a unified communication, sensing, and computing platform due to its inherent capability to support simultaneous uplink and downlink communications within the entire frequency band. This is particularly beneficial in the following communications.

Telecommunication

The use of full-duplex data transmission is apparent in modern telecommunications networks such as ethernet switches. In full-duplex ethernet cables, each node is cabled to a switch with a pair of circuits. One circuit is used for transmitting data to the switch, and the other for receiving data from it. Simultaneous transmission is the default setting but only occurs between the Ethernet cables switch and each node. This system eliminates network collisions, ensuring smooth data transfer.

Recommended reading: The Future of Wired Communication Infrastructure: Single Pair Ethernet

Wireless Communication

In wireless communication systems, full duplex technology is utilized to enable devices to transmit and receive signals simultaneously. This is particularly useful in applications like cellular networks, where base stations and mobile devices can communicate concurrently, improving network capacity and efficiency.

Video Conferencing

Video conferencing relies on full duplex communication to facilitate real-time, interactive conversations between participants. Full duplex technology enables simultaneous transmission and reception of audio and video data, allowing participants to see, hear, and respond to each other in real time.

Networking

Multiple network devices are connected to a computer network and exchange data packets. Full duplex communication enables these devices to send and receive data simultaneously, improving the overall network throughput and efficiency. It is particularly beneficial when large amounts of data need to be transferred quickly, such as file transfers, video streaming, and database synchronization.

Internet of Things (IoT)

In IoT applications, full duplex communication enables devices and sensors to send and receive data simultaneously. This is useful for scenarios where real-time data exchange is required, such as smart home systems, industrial automation, and environmental monitoring.

Satellite Communication

Full duplex communication is extensively used in satellite systems, where signals are transmitted from Earth to satellites and vice versa. Satellites can receive signals while simultaneously relaying them back to the Earth station, enabling seamless communication across long distances.

Choosing Between Half Duplex and Full Duplex

The selection between half-duplex and full-duplex communication modes is contingent upon the specific requirements of your network, the characteristics of your communication system, and the kind of data you intend to transmit. Both modes have their distinct advantages and disadvantages, and understanding these can guide your decision-making process.

Factors to Consider

Several factors must be weighed when deciding between half-duplex and full-duplex modes of communication.

Nature of Data Transmission

One primary consideration is the nature of the data being transmitted. If the communication involves a back-and-forth exchange where only one party must speak at a time, half-duplex might be preferable. However, full-duplex would be the more fitting option if your network requires simultaneous data transmission and reception.

Bandwidth

Bandwidth requirements are another important factor. Half-duplex systems conserve bandwidth, requiring only a single communication channel alternately shared between the two directions. Conversely, full-duplex systems, especially those operating on dual-simplex, require two separate channels for simultaneous transmission, thereby using more bandwidth. Therefore, the available bandwidth and the network's capacity to handle bandwidth demand should be considered.

Recommended reading: New tech can double spectral bandwidth in some 5G systems

Cost and Network Complexity

Moreover, the complexity and cost of the equipment might also affect the decision. Full-duplex systems often necessitate more sophisticated and costly equipment, like switches capable of handling simultaneous bidirectional communication, and might be more challenging to set up and manage due to the intricacies involved in managing simultaneous bidirectional communication.

Traffic

Half-duplex systems are prone to collisions if multiple parties transmit simultaneously, potentially leading to lost or distorted messages. Full-duplex systems, on the other hand, effectively eliminate such collisions, offering more reliable communication if managed properly.

Date Rate and Latency

Full-duplex communication is often the preferred choice for networks where high data rates and low latency are paramount. It is ideal for high-bandwidth applications like video streaming or large data file transfers. However, implementing full-duplex communication is technically challenging and can be more expensive due to the need for more sophisticated hardware and signal-processing techniques.

Half-duplex communication has lower data rates and is simpler and cheaper to implement. It is suitable for networks where data transmission is sporadic, time-sensitive, or conserving bandwidth is a priority. Additionally, it may be a more viable option in situations where the installation of the additional infrastructure required for full-duplex communication is not feasible.

Future Flexibility

When choosing between full-duplex and half-duplex, it's also important to consider the future trajectory of these technologies and how they might align with the network's long-term goals. For example, a network might start with half-duplex communication due to budget constraints and later upgrade to full-duplex as the need for higher data rates increases. Should any further complications arise, you can also take the help of emerging technologies and research that are continuously improving full-duplex communication, such as innovations in antenna and transceiver designs, advanced self-interference cancellation techniques, and the development of full-duplex-enabled UAV/satellite/non-terrestrial networks, among others. These advancements can address the challenges associated with full-duplex communication and make it increasingly attractive and feasible for a wider range of applications.

It's worth noting that the ultimate choice between half-duplex and full-duplex communication should be guided by a thorough understanding of your specific network requirements and the capabilities and limitations of each mode.

Conclusion

In the realm of communication protocols, understanding the distinctions between half duplex and full duplex is crucial. Each mode has its strengths and weaknesses, and understanding these will help make an informed choice. For instance, a half-duplex is suitable when data flow occurs in a sequential manner, allowing participants to take turns transmitting and receiving information. On the other hand, full-duplex is preferred when real-time and simultaneous data transmission is crucial, ensuring efficient and uninterrupted communication. Thus, the choice between the two depends on the specific requirements of the communication system and the desired level of data flow efficiency.

Frequently Asked Questions

What is the main difference between full-duplex and half-duplex?

The key difference between full-duplex and half-duplex lies in the direction of communication. Full-duplex supports bidirectional transmissions simultaneously, while half-duplex supports bidirectional transmissions but not at the same time.

What is the main difference between full-duplex and half-duplex?

The key difference between full-duplex and half-duplex lies in the direction of communication. Full-duplex supports bidirectional transmissions simultaneously, while half-duplex supports bidirectional transmissions but not at the same time.

What happens if more than one party transmits at the same time in a half-duplex system?

In half-duplex systems, if more than one party transmits simultaneously, a collision occurs, resulting in lost or distorted messages.

What is the future of half-duplex communication?

Despite its limitations, half-duplex communication continues to have a role in certain applications. For instance, it is commonly used in IoT applications where devices must communicate intermittently, and data transmission is usually not simultaneous. Notably, half-duplex communication is a key component in low power wide area network (LPWAN) technologies like Long Range (LoRa) and narrowband IoT (NB-IoT).

Are there ways to improve full-duplex communication?

Yes, there are several research areas focused on improving full-duplex communication, including the development of advanced antenna and transceiver designs, improved self-interference cancellation techniques, new full-duplex MIMO techniques for multiuser interference cancellation, and machine learning techniques for self-interference cancellation.

How to enable full-duplex functionality without using simplex channels?

Alternative methods for enabling full-duplex functionality without pairing simplex channels include Time-division multiplexing (TDM) and Frequency-division duplexing (FDM). TDM combines multiple data streams in a single communication channel by dividing the individual streams into small segments scheduled for transmission across the channel at different times. FDM combines multiple signals on a single communication channel by assigning each signal to a different frequency, or subchannel, within the main channel.

Should you use Half Duplex or Full Duplex for your WiFi?

When considering whether to use half duplex or full duplex for your WiFi router, it is important to understand the nature of wireless communication. WiFi networks typically utilize full duplex communication due to the need for simultaneous data transmission and reception. Full duplex allows for efficient and uninterrupted WiFi connectivity, enabling devices to send and receive data concurrently. This is particularly important in scenarios where multiple devices are connected to the network, and efficient data flow is essential for smooth operation. Half duplex communication, with its one-way-at-a-time approach, may lead to increased latency and reduced overall network performance. Therefore, full duplex is the preferred choice for WiFi networks to ensure optimal data transmission and seamless connectivity for users.
