IoT Connectivity Architecture: Engineering Guide to Enterprise-Scale Implementation

Introduction

IoT is more than a buzzword; it's a technological revolution transforming industries. From streamlining supply chains [1] to enabling predictive maintenance, its potential lies in how effectively devices communicate. But scaling IoT for enterprises isn’t as simple as plugging in devices. It demands mastery over IoT connectivity architectures.

At the heart of IoT's power is connectivity: the systems, protocols, and architectures that ensure seamless data exchange between millions of devices. However, enterprise-scale IoT deployments face unprecedented challenges. Networks are expanding beyond traditional limits, managing an average of 27,000 devices per installation, with a 35% annual growth rate in device density. This growth strains conventional architectures, with protocol overhead consuming up to 40% of bandwidth in poorly designed systems and latency variations from 100ms to 3 seconds, disrupting real-time applications.

Whether you’re an engineer designing robust IoT systems or a technophile eager to understand the backbone of modern connectivity, this is your step-by-step resource for building IoT solutions that are both efficient and future-ready.

Recommended Readings: Internet of Things: A Comprehensive Guide to its Engineering Principles and Applications

Fundamentals of IoT Connectivity Architecture

Star Topology

The star topology in IoT networks is the simplest and most commonly used topology, where devices connect to a central hub, such as router or a gateway. The central hub serves as a conduit, routing all communication between devices and external networks.

You can consider a use case of a residential apartment complex where smart meters measure electricity consumption for each unit. These meters communicate directly with a central server that consolidates utility billing and monitoring data.

The main advantage of a star topology is its simplicity. It is easy to set up, manage, and troubleshoot. Moreover, it’s cost-effective for small-scale deployments.

However, the architecture has a critical downside—a single point of failure. If the hub goes down, the entire network collapses. Additionally, scalability becomes challenging as the number of devices increases, potentially overwhelming the central hub.

Recommended Readings: A Comprehensive Guide to Understanding Star Topology in Computer Networks

Mesh Topology

In mesh topology, devices communicate with each other directly, forming a decentralized network. This design allows data to be routed dynamically, creating redundancy and resilience.

Consider a use case of smart manufacturing plants where automation systems use mesh networks to connect sensors and actuators across the floor. This enables machines to communicate directly for tasks like monitoring temperature, vibration, and operational efficiency.

Advantages: Mesh networks excel in dynamic environments. They are highly resilient because even if one device fails, data can reroute through alternative paths. This self-healing ability makes mesh networks ideal for complex and high-density IoT deployments.

Limitations: The complexity of setup and maintenance is higher, and devices may require more power to manage multiple connections, making it less suitable for battery-powered IoT devices.

Recommended Readings: Mesh Topology: A Deep Dive into Principles and Applications

Hybrid Topology

A hybrid topology combines the best features of star and mesh designs, creating a flexible, scalable network. It’s particularly useful for large-scale IoT implementations.

You can consider its use case in a smart city deployment that might use cellular networks like LTE-M for asset tracking, while public Wi-Fi hotspots provide local connectivity. This integration ensures robust communication for various devices across the urban landscape.

Advantages: Hybrid networks are scalable and robust, handling localized and large-scale device interactions.

Limitations: The main drawback is cost. Implementing and managing hybrid networks requires significant investment, and their complexity can make troubleshooting challenging.

Recommended Readings: Understanding IoT Architecture: Key Layers and Core Technologies Explained

Recommended Readings: Types of Network Topology in Computer Networks

IoT Connectivity Technologies Overview

Choosing the right connectivity solutions is one of the most critical decisions in any IoT deployment. Each technology comes with unique features, strengths, and limitations.

Core IoT Connectivity Technologies

Wi-Fi

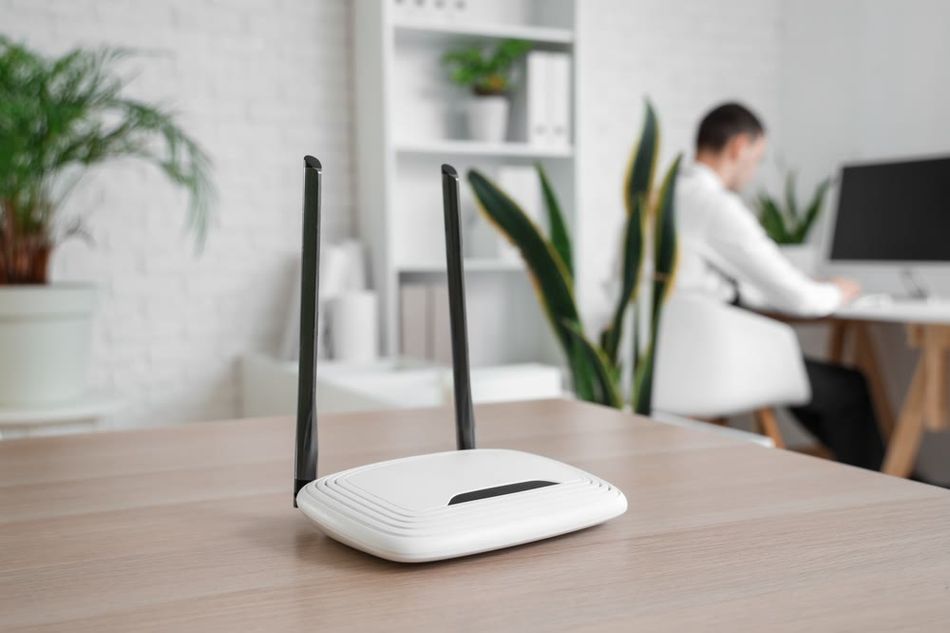

Wi-Fi Router

Wi-Fi, based on IEEE 802.11 standards, operates on 2.4 GHz and 5 GHz frequency bands, offering high-speed data transfer over medium distances (up to 50 meters indoors). Devices connect to a wireless access point (router), which acts as the central hub for data transmission and communication with the Internet. Wi-Fi networks establish a two-way communication channel between devices and a router. Data packets are transmitted using radio waves, with encryption protocols like WPA2 or WPA3 ensuring security.

It is the go-to technology for IoT systems that demand high data throughput and robust connectivity, particularly in environments where power consumption isn’t a concern. Wi-Fi is best suited for smartphones, security cameras, and home ecosystems like Nest Thermostats [2], where power and bandwidth are not constraints.

Pros

• Wi-Fi’s high-speed data transfer capability makes it ideal for applications like video streaming and file transfer.
• Its widespread adoption ensures compatibility and ease of setup.

Cons

• Wi-Fi has a limited range (approximately 50 meters), which may not suffice for outdoor areas without additional access points.

It consumes significant power, making it unsuitable for battery-powered devices that require longevity.

Suggested Readings: The Evolution of Wi-Fi networks: from IEEE 802.11 to Wi-Fi 6E

Cellular IoT Connectivity (LTE-M and NB-IoT)

Cellular IoT leverages existing mobile networks to provide large-scale connectivity for IoT deployments. Technologies like LTE-M and NB-IoT specialize in IoT applications requiring mobility, low latency, and widespread coverage [3].

LTE-M (Long-Term Evolution for Machines)

LTE-M operates on 4G LTE infrastructure, balancing high bandwidth and low power consumption. It supports mobility, allowing seamless handovers between cellular towers. LTE-M is commonly used in asset tracking, fleet management, and mobile health monitoring systems.

Pros

• Mobility and Coverage: Ideal for use cases where devices move frequently, such as vehicle tracking.
• Low Power Use: Power-saving features make it efficient for IoT devices.

Cons

• Higher Costs: Initial setup and operational costs may be higher than other IoT-specific networks.

NB-IoT (Narrowband IoT)

NB-IoT focuses on low-bandwidth applications, transmitting small packets of data over long distances. It achieves ultra-low power consumption by optimizing the transmission schedule. Utility companies deploy NB-IoT for smart meters, while smart cities use it for environmental monitoring and street lighting.

Pros

• Power Efficiency: Devices can operate for years on a single battery.
• Penetration: Strong signal penetration enables usage in underground or dense urban environments.

Cons

• Limited Bandwidth: Not suitable for high-speed data applications.

Low Power-Wide-Area Network (LPWAN)

Low Power-Wide-Area Network (LPWAN) encompasses technologies like LoRaWAN and IPWAN, designed for IoT devices that require long-range, low-bandwidth connectivity with minimal power usage. It transmits small packets of data over long distances using unlicensed frequency bands. Devices "wake up" only when they need to send or receive data, conserving energy.

LPWAN is a natural fit for remote automation, such as agricultural monitoring (soil sensors) or environmental tracking in hard-to-reach areas.

Pros

• Extended Range: Coverage can exceed 10 km in rural areas.
• Energy Efficiency: Devices can last up to a decade on standard batteries.

Cons

• Low Data Throughput: Unsuitable for real-time or high-bandwidth applications.

Bluetooth

Bluetooth, based on IEEE 802.15.1, enables short-range wireless communication using frequency-hopping spread spectrum (FHSS) within the 2.4 GHz band. The protocol supports both classic Bluetooth for higher data rates and Bluetooth Low Energy (BLE) for energy-efficient IoT use cases. The bluetooth technology pairs through a secure handshake process, establishing a personal area network (PAN). BLE further optimizes power by transmitting data in bursts rather than continuous streams.

Bluetooth excels in connected devices like fitness trackers, medical devices, and asset tracking tags, where portability and low power are crucial.

Pros

• Energy Efficiency (BLE): Enables years-long battery life in low-data applications.
• Interoperability: Bluetooth is supported by nearly all smartphones and wearables.

Cons

• Limited Range: Typically effective within 10–30 meters.
• Susceptible to Interference: Operating in the crowded 2.4 GHz band increases the risk of signal degradation.

Zigbee

Zigbee operates on IEEE 802.15.4 standards, primarily within the 2.4 GHz frequency band. Designed for low power-wide-area network applications, it facilitates short-range communication between devices in a mesh or star topology. Zigbee-enabled devices communicate with a coordinator (central hub) or each other in a mesh network. The protocol supports low data rates and prioritizes energy efficiency, enabling devices to enter sleep mode when not in use.

It is ideal for automation systems, including smart lighting, environmental sensors, and industrial monitoring where energy efficiency is critical [4].

Pros

• Low Power Consumption: Perfect for devices with limited energy sources, such as smart meters or lighting systems.
• Resilience in Mesh Networks: The ability to route data dynamically through multiple nodes ensures reliability.

Cons

• Low Bandwidth: Not suitable for real-time applications requiring high data throughput.
• Limited Range: Devices must be within 10–20 meters of one another.

Wi-Fi vs Zigbee vs Bluetooth: Choosing the Right Solution

Each technology plays a unique role in the IoT ecosystem. For high-speed connectivity and easy access, Wi-Fi is a clear choice. In environments requiring energy efficiency, Zigbee and Bluetooth excel. Cellular technology like LTE-M and NB-IoT brings mobility and cost-effective scalability to the table. Finally, LPWAN technologies are indispensable for long-range and low-power applications.

Key Considerations for Enterprise IoT Connectivity

Building a reliable IoT system for businesses requires careful planning around three critical factors: bandwidth, power efficiency, and scalability. Let’s break these down in simple terms, incorporating key technologies and their functionality.

Bandwidth Needs

Bandwidth is the amount of data a network can handle at one time. Different IoT applications have unique needs, so choosing the right connectivity options is crucial for smooth operations.

High Bandwidth Applications
Some IoT systems, like smart home security cameras or healthcare devices that transmit real-time vitals, need high-speed data transfer. Technologies such as Wi-Fi and LTE-M are ideal for these.

• Wi-Fi: Offers fast speeds, perfect for streaming video or large data packets.
• LTE-M: Provides reliable iot connectivity solutions for mobile or remote devices, like asset trackers or wearable healthcare gadgets.

Low Bandwidth Applications
Other devices, like soil sensors in agriculture or temperature monitors, send small bits of data occasionally. These can use LPWA (Low-Power Wide-Area) networks, like NB-IoT, which are optimized for low-power operation and long-distance communication.

Example

A hospital might use high-bandwidth Wi-Fi for patient monitoring but switch to LPWA networks for tracking low-data devices like wheelchair positions.

Power Efficiency

Many IoT devices run on batteries and are deployed in areas where frequent maintenance is difficult. Ensuring these devices last for years is a major consideration. Devices like remote environmental sensors or smart door locks in homes need to conserve power to reduce the need for battery replacements. Technologies with low power consumption are critical here.

Optimized Connectivity Options

• LPWA Networks: Use very little power while sending small data packets over long distances. Perfect for devices like smart meters or agricultural sensors.
• Bluetooth Low Energy (BLE): Great for short-range applications such as wearable fitness devices or medical trackers in healthcare.
• NB-IoT: Specifically designed for long-lasting battery performance in systems that only need occasional communication.

Example
A city deploying smart parking sensors uses LPWA to ensure the devices run for years without needing maintenance, saving costs on replacements.

Scalability

As businesses grow, so do their IoT systems. A small network today might handle hundreds of devices, but it could grow to thousands or even millions of modules in a few years.

Challenges with Growth

• Adding more devices can overwhelm a network, causing slower data transfer.
• Managing so many devices requires smart planning to avoid chaos.

Scalable IoT Connectivity Solutions

• Hybrid Networks: Combining satellite connectivity for remote areas with technologies like Wi-Fi or LTE-M ensures a smooth operation across regions.
• Gateways and Routers: Act as middle points, collecting data from nearby devices and sending it to the cloud. These help reduce the load on individual devices.
• eSIM Modules: Businesses can easily add or remove devices from their network without needing physical SIM cards.

Example

A logistics company uses a combination of LTE-M for vehicle tracking and satellite connectivity for monitoring shipping containers in remote areas.

Tech Specs for Key Technologies

Designing IoT Connectivity for Enterprise-Scale Implementation

Deploying IoT systems at an enterprise level requires strategic planning to address the complexities of large-scale networks. To ensure seamless performance, enterprises must balance bandwidth, energy efficiency, and security, while tailoring the network to specific use cases. Here's a detailed guide to help organizations design reliable connectivity for their IoT projects.

Step 1: Assess Business Needs

Before selecting the technology stack, it’s critical to understand the unique demands of your IoT applications.

• Analyze Bandwidth Requirements
  Bandwidth needs can vary significantly. For instance, industrial automation applications using Ethernet for wired connections demand high-speed data throughput, while agricultural sensors may rely on LoRa networks for low-bandwidth data transfer over long distances.
  • Example: A manufacturing plant with IoT-driven robotics will require low latency and high bandwidth. Conversely, an agriculture monitoring system might prioritize extended range and minimal energy consumption.
• Evaluate Power and Energy Efficiency
  Devices like environmental sensors or wearable healthcare gadgets often operate in remote locations where battery life is a priority. Technologies such as LoRa or NB-IoT are ideal for these scenarios, as they offer low energy consumption while maintaining connectivity.
• Understand Latency Tolerance
  Latency needs depend on application criticality. Global IoT connectivity for logistics often tolerates slight delays, while systems like autonomous vehicles need real-time responsiveness. Matching these needs with suitable technologies like LTE-M or Ethernet ensures smooth operations.

Step 2: Choose the Right Technology Mix

A successful IoT implementation often involves combining multiple connectivity options to meet diverse requirements.

• Integrate Cost-Effective Solutions
  High-bandwidth applications, such as video surveillance, are well-suited for Wi-Fi or Ethernet connections due to their speed and stability. In contrast, LoRa and LPWAN networks are cost-effective choices for monitoring applications requiring sporadic data transmissions.
• Scalable Technology Selection
  • LTE-M: Ideal for mobile applications like fleet management and asset tracking, as it supports long-range and moderate energy use.
  • LoRa: Perfect for rural deployments like agricultural monitoring, thanks to its extended range and low power use.
  • Ethernet: Still a go-to for stationary systems requiring ultra-reliable and high-speed data transfer, such as smart manufacturing units.
• Example Technology Mix
  A smart city project might use:
  • LoRa for utility meters to monitor water usage.
  • LTE-M for connected vehicles to manage traffic in real time.
  • Wi-Fi for public-facing systems like kiosks and surveillance cameras.

Step 3: Ensure Robust Security

Security is paramount in IoT projects to safeguard sensitive data and prevent cyber threats.

• Encrypt Data Across Systems
  Data exchanged via routers, gateways, and cloud platforms must be encrypted end-to-end to prevent breaches. Robust encryption ensures the confidentiality of real-time data, especially in critical industries like healthcare and finance.
• Deploy Secure Communication Protocols
  Protocols such as MQTT and HTTPS are standard for ensuring secure device-to-cloud communication. When combined with hardware security modules, they protect against unauthorized access.
• Use White Papers and Best Practices
  Organizations can leverage white papers published by IoT industry leaders to understand and implement best practices for security. These often include guidelines on secure data transfer and device authentication.
• Example Security Measures:
  • Use VPNs for cloud communications.
  • Implement access control on Ethernet-connected devices to prevent unauthorized network entry.

Bringing it Together: Practical Application

A global logistics company could design its IoT connectivity system as follows:

1. Assess Needs: Analyze the required global IoT connectivity for real-time fleet tracking while maintaining low energy consumption for battery-powered sensors in shipping containers.
2. Choose the Mix:

• LTE-M for fleet tracking and communication.
• LoRa for warehouse inventory tracking, minimizing costs over large areas.
• Ethernet for stationary control centers that demand high-speed, reliable data processing.
• Secure the Network: Encrypt data from all connected devices, monitor vulnerabilities, and follow white paper guidelines for IoT cybersecurity.

Conclusion

Building a strong IoT system requires choosing the right connectivity options for your needs. From LPWA for long-range sensors to LTE-M for mobile devices, each technology has its strengths. By focusing on bandwidth, power use, and security, businesses can create reliable and scalable IoT networks.

FAQs

1. What is IoT connectivity architecture?
   It’s the system that connects IoT devices so they can share data effectively using the right technologies and networks.
2. Which technology works best for remote sensors?
   Technologies like LPWA, such as LoRa or NB-IoT, are great because they use less power and work over long distances.
3. How does LTE-M help IoT systems?
   LTE-M offers good coverage, low delay, and moderate power use, making it perfect for tracking items or devices that move.
4. What’s the difference between LoRa and Wi-Fi in IoT?
   LoRa is used for long-range, low-data jobs like farming, while Wi-Fi works for high-speed tasks like streaming or smart home gadgets.
5. How can I keep my IoT system secure?
   Encrypt data, use secure communication methods like HTTPS, and follow trusted guidelines to protect your system from threats.
