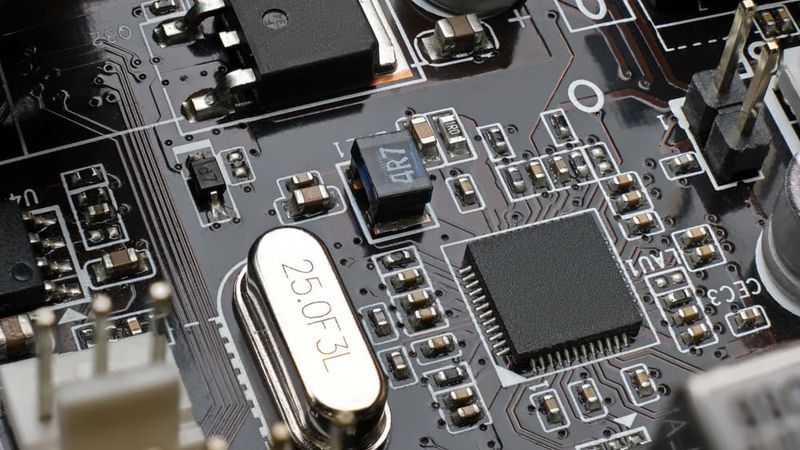

Microcontroller Programming: Mastering the Foundation of Embedded Systems

Introduction

Microcontroller programming involves writing software that enables microcontrollers to control and execute tasks within an embedded system. It is a computer system that is integrated into a device or product to perform specific functions. The components of an embedded system typically include a microcontroller, memory, input/output interfaces, power supply, real-time clock, analog-to-digital and digital-to-analog converters, peripherals, etc. As technology evolves, microcontroller programming plays an increasingly important role across various industries, including IoT, industrial robotics, automation, consumer electronics, automotive, and industrial applications.

What is a Microcontroller?

A microcontroller is a compact integrated circuit designed to perform specific tasks within an embedded system. It typically consists of a processor, memory, and input/output (I/O) peripherals that work together to control and execute tasks. A single microprocessor has most of the in-built embedded system component requirements. Unlike microprocessors, which are general-purpose computing devices, microcontrollers are designed for specific applications and can be found in a wide range of devices. Popular applications include home appliances, computers, medical equipment, and automotive systems.

Microcontrollers offer several advantages over microprocessors like lower power consumption, smaller size, and lower cost. They are also easier to program and can be customized for specific tasks, making them ideal for various applications. In the following sections, we will explore popular microcontroller platforms, programming languages, tools, and techniques to help you master the technique of microcontroller programming.

Popular Microcontroller Platforms

When it comes to microcontroller programming, there are several platforms available with unique features and capabilities. In this section, we will explore some of the most popular microcontroller platforms- Arduino, Raspberry Pi, STM32 PIC and AVR.

Arduino

Arduino Uno is a microcontroller with a microprocessor ATmega328P

The Arduino platform is a popular choice for microcontroller programming because of its user-friendly interface and extensive community support. Arduino was first introduced in 2005 and has become a go-to platform for budding electronics engineers, hobbyists and professionals alike. The platform offers a variety of boards with different features and capabilities, making it suitable for a wide range of electronic projects involving sensors, motion control, LEDs, etc.

Some of the advantages of using Arduino for a microcontroller development board include its open-source nature, extensive library support, IDE environment and ease of use. However, Arduino boards may not be suitable for all applications due to their limited processing power and memory storage.

Raspberry Pi

The Raspberry Pi platform is another popular choice for microcontroller programming, known for its versatility and powerful processing capabilities. Launched in 2012, the Raspberry Pi was initially designed as an affordable computer for educational purposes but has since evolved into a widely-used platform for embedded systems development.

The platform's advantages include its powerful processing capabilities and large community support. Raspberry Pi has its own operating system known as “Raspbian” based on Linux distribution and installer for “Pi-apps’. However, Raspberry Pi boards may be more challenging for beginners due to their complexity, storage limitation and higher power consumption compared to other microcontroller platforms.

STM32

The STM32 platform is a family of microcontrollers developed by STMicroelectronics. It is known for its high-performance microcontrollers, which offer a range of features and capabilities suitable for various applications like printers and complex circuit boards. The STM32 platform was first introduced in 2007 and has since become popular among engineers, professionals and hobbyists alike.

Some of the advantages of using STM32 for microcontroller programming include its high processing power, energy efficiency, and extensive peripheral support. However, the STM32 platform may have a steeper learning curve compared to Arduino and Raspberry Pi, making it more challenging for beginners.

PIC

Developed by Microchip Technology, the PIC platform is a family of microcontrollers that has been widely used in embedded systems for decades. First introduced in the early 1980s, PIC microcontrollers are known for their simplicity, and low cost, making them a popular choice for various applications in peripherals and audio systems.

The advantages of using PIC for microcontroller programming include its ease of use and extensive community support. However, PIC microcontrollers are less suitable for complex applications due to limited processing power and memory compared to other platforms.

AVR

The AVR microcontroller was developed by ATMEL in 1996 to support a wide range of hardware applications. These 8-bit microcontrollers have a modified Harvard architecture, a reduced instruction set, an EEPROM for semi-permanent storage and compiler AVR GCC. AVR microcontrollers are the best choice for hobbyists and engineers to execute firmware and hardware projects with ease.

The advantages of AVR microcontrollers include 8-16 bit timers, 8-bit and 16-bit timers, internal oscillators, 10-12 bit ADC and DAC, etc. But AVR Microcontrollers offer low-power operation with a reduced clock speed ranging from 0 to 20 MHz.

Microcontroller Programming Languages

When it comes to microcontroller programming, there are several programming languages to choose from. Each microcontroller programming language offers unique features, complexity, and advantages. In this section, we will discuss some of the most popular programming languages for microcontrollers like C/C++, Python, and Assembly-level languages.

C/C++

C and C++ are popular languages for microcontroller programming due to their low-level access to hardware and high performance. These languages are widely used in embedded systems development and offer a range of features and libraries that make them suitable for various applications. Contrary to popular belief, c programming and C++ are two different languages for programming microcontrollers.

The benefits of using C/C++ for microcontroller programming are quite the same that include high performance, extensive library support, and compatibility with various MCU platforms. However, C/C++ can be more challenging to learn and use compared to other languages like Python. This is because the code for C/C++ is too long for the compiler to execute.

Python

Python is becoming increasingly popular for microcontroller programming due to its simplicity and ease of use. While not traditionally used for embedded systems, Python has gained traction in recent years for developing real-time applications on microcontrollers. Systems like MicroPython are compatible with Python 3 and are used widely to control firmware and hardware devices. Embedded Python is another programming language used for embedded systems.

The benefits of using Python for microcontroller programming include its error-handling capabilities, simplicity, ease of use, high readability, low maintenance and extensive library support. However, Python may not be as performant as C/C++ and may not be suitable for applications that particularly require low-level hardware access or high performance.

Microcontrollers are more like a “computer on a chip”

Assembly level language

Assembly language is a low-level programming language that is used for microcontroller programming in certain situations for machine-level instructions. It provides direct access to the CPU and hardware, allowing developers to write highly optimized code for specific applications. While assembly language can be challenging to learn and use, it offers unparalleled control over the hardware and can be beneficial for certain legacy microcontrollers like 8051.

The benefits of using assembly-level language for microcontroller programming include its high performance and direct hardware access. However, assembly language can be challenging to learn and use because of hex and binary codes. One of the drawbacks of assembly-level language is that higher-level languages like C/C++ and Python can achieve similar results with less complexity.

Microcontroller Programming Tools

Effective microcontroller programming requires a variety of tools to help developers write, debug, and deploy their code. In this section, we will discuss some of the most important tools for microcontroller programming including Integrated Development Environments (IDEs), debuggers and emulators, and version control systems.

Integrated Development Environments (IDEs)

Integrated Development Environments (IDEs) are essential tools for microcontroller programming that provide a unified interface for writing, debugging, and deploying code. In short, IDE is a software suite where IoT and hardware developers can write and test code efficiently. Popular IDEs for microcontroller programming include the Arduino IDE, MPLAB X for PIC microcontrollers, and STM32CubeIDE for STM32 microcontrollers. These IDEs offer various features and capabilities, such as code completion, syntax highlighting, and debugging tools for developers to write and troubleshoot code.

Debuggers and Emulators

Debuggers and emulators are essential tools for microcontroller programming to help developers identify and fix issues in their code. Debuggers, such as JTAG and GDB, allow developers to step through their code, set breakpoints, and inspect variables to identify malfunctioning code. Emulators simulate the behaviour of a microcontroller before the physical execution, allowing developers to test their code without the need for hardware implementation. An emulator is hardware or software on the host side that behaves like another system for testing code and associated peripherals.

Using debuggers and emulators can help developers optimize their code, identify issues, and ensure that their applications run smoothly on the target hardware without wasting time.

Version Control Systems

Version control systems are essential tools for microcontroller programming that enable developers to manage, document and collaborate on code. Popular version control systems include Git, SVN, and Mercurial. These tools allow developers to track changes to their code, create branches for new features, and merge changes from multiple contributors. It ensures that the codebase remains organized and up-to-date.

Using version control systems can help developers collaborate more effectively, avoid code conflicts, and maintain a clean and organized codebase.

Microcontroller Programming Techniques

To create efficient and responsive applications, developers must master various microcontroller programming techniques. In this section, we will explore some of the most important techniques, including interrupts, timers and counters, Pulse Width Modulation (PWM), and communication protocols such as I2C, SPI, and UART.

Interrupts

Interrupts are essential in microcontroller programming that allows developers to handle asynchronous events and ensure that their applications remain responsive. Interrupts are signals that temporarily pause the execution of the main program to handle a specific high-priority task like a button press or a timer expiration. 8259a PIC (programmable interrupt controller) is a great example to understand the working of interrupts.

Using interrupts can help developers create more efficient and responsive applications, as they allow the microcontroller to handle high-priority events as they occur instead of constantly polling for changes. However, interrupts can also introduce complexity and potential issues like race conditions and resource contention. Hence, it is essential to use interrupts carefully and understand their implications.

Timers and Counters

Timers and counters are essential tools for microcontroller programming that enable developers to measure time and control the execution of their applications. Timers can be used to generate periodic events, such as toggling an LED or updating a display, while counters can be used to count events or measure the duration of a signal.

Using timers and counters can help developers create more accurate and efficient applications for having precise control over the timing and execution of tasks. However, it's essential to understand the limitations and capabilities of the microcontroller's timers and counters that can vary between different platforms and models.

PCB with a microcontroller board

Pulse Width Modulation (PWM)

Pulse Width Modulation (PWM) is a technique used in microcontroller programming to control the output of digital signals. By varying the duty cycle of a square wave, PWM can be used to control the brightness of an LED, the speed of a motor, the position of a servo and other applications.

Using PWM can help developers create more versatile and efficient applications because it offers control over the output of digital signals. However, it's essential to understand the limitations and capabilities of the microcontroller's PWM hardware that too can vary between different platforms and models.

Communication Protocols

I2C

The I2C (Inter-Integrated Circuit) communication protocol is a widely-used protocol for microcontroller programming that enables the communication between multiple devices over a simple two-wire interface. I2C is suitable for various applications, such as connecting sensors, displays, or other peripherals to a microcontroller.

Using I2C can help developers create more efficient and modular applications because it allows easy communication between devices. However, I2C has some limitations like its relatively slow speed and limited range, making it unsuitable for certain high-speed applications.

SPI

The SPI (Serial Peripheral Interface) communication protocol is another popular protocol for microcontroller programming that enables high-speed communication between devices over a simple four-wire interface. SPI is suitable for various applications, such as connecting high-speed sensors, memory devices, or displays to a microcontroller.

Using SPI can help developers create more efficient and high-performance applications, as it allows for fast communication between devices. However, SPI has some limitations that make it unsuitable for certain applications. These limitations include its relatively complex wiring and lack of error detection.

UART

The UART (Universal Asynchronous Receiver/Transmitter) communication protocol is a widely-used protocol for microcontroller programming that offers simple, asynchronous communication between devices over a two-wire interface. UART is suitable for various applications, such as connecting GPS modules, Bluetooth devices, or other peripherals to a microcontroller.

Although UART supports easy communication between devices, it has some limitations like sensitivity to timing errors and the potential for data loss.

Conclusion

Microcontroller programming is a critical skill in the world of embedded systems development. By understanding popular platforms, programming languages, tools, and techniques, developers can create efficient and responsive applications for various industries. As technology continues to advance, mastering microcontroller programming will become increasingly important, enabling developers to create innovative solutions that meet the demands of an ever-evolving landscape.

Frequently Asked Questions (FAQs) about Microcontroller programming

1. Which microcontroller platform is best for beginners?

Arduino is often considered the best microcontroller platform for beginners, due to its user-friendly interface, extensive community support, and wide range of available resources. However, it's essential to choose a platform that best suits your specific needs and application requirements.

2. What is the difference between a microcontroller and a microprocessor?

A microcontroller is a compact integrated circuit designed for specific tasks in embedded systems, whereas a microprocessor is a general-purpose computing device. Microcontrollers typically include a processor, memory, and I/O peripherals, while microprocessors require external components to perform similar tasks.

3. Can I use Python for microcontroller programming?

Yes, Python can be used for microcontroller programming, especially with platforms like Raspberry Pi and MicroPython. While Python may not be as performant as C/C++, it offers simplicity and ease of use, making it suitable for certain applications.

4. What are some common communication protocols used in microcontroller programming?

Some common communication protocols used in microcontroller programming include I2C, SPI, and UART. Each protocol has its unique features, advantages, and limitations, making them suitable for different applications.

5. How can I debug my microcontroller code?

Debugging microcontroller code can be done using various tools, such as debuggers (e.g., JTAG, GDB) and emulators. These tools allow developers to step through their code, set breakpoints, and inspect variables to identify and fix issues.
