ASRS System Revolution: Transforming Warehouse Automation

Introduction

Automated Storage and Retrieval Systems (ASRS) are revolutionizing warehouse operations with computer-controlled systems for storing and retrieving items from specified cubes amidst the racks. These systems are transforming logistics and supply chain management by utilizing technologies such as cranes, shuttles, and robotic systems. ASRS adoption is rapidly growing across industries, from manufacturing and e-commerce to pharmaceuticals and cold-chain logistics. For engineering professionals, ASRS offers compelling benefits: increased storage density, improved inventory placements, reliable worker safety, and significant operational cost reductions.

By automating repetitive tasks like fetching similar SKUs and optimizing space utilization, ASRS enables businesses to meet the escalating demands of modern commerce. As a cornerstone of smart warehousing, ASRS is poised to play a crucial role in shaping the future of logistics and distribution centers worldwide.

The Anatomy of ASRS: Unraveling the Core Components

Structural Frameworkof ASRS

The structural framework forms the critical foundation of any Automated Storage and Retrieval System (ASRS), providing the necessary support and organization for efficient storage and retrieval operations. This framework determines the system's storage capacity, accessibility, and overall performance.

ASRS racking systems come in various configurations to suit different operational needs:

• Single-deep racking offers direct access to each storage location but may sacrifice some storage density.
• Double-deep racking increases storage capacity by allowing pallets to be stored two-deep, though it requires specialized handling equipment.
• Multi-deep racking systems, such as drive-in or drive-through racks, maximize storage density but may limit selectivity.

Vertical space utilization is a key consideration in ASRS design, allowing warehouses to significantly increase their storage capacity without expanding their footprint. By leveraging tall racking structures, often exceeding 30 meters in height, ASRS can efficiently use vertical space that would be impractical or unsafe for traditional forklift operations.

Key structural components of an ASRS include [1]:

• Steel racking structures
• Support columns and beams
• Guide rails for storage and retrieval machines
• Load-bearing floors or elevated platforms
• Seismic bracing systems
• Protective barriers and safety enclosures
• Pallet support rails or shelving
• Picking and replenishment stations

Function of AS/RS System

In a modern warehouse scenario, Automated Storage and Retrieval Systems (ASRS) play a crucial role in streamlining operations and ensuring efficiency. Here are the basic functions of ASRS:

Automated Storage: Organizes and stores items using automated systems, ensuring each item is placed in an optimal location within the warehouse. This system reduces the time needed to store incoming goods and organizes them systematically for easy access.

Automated Retrieval: Picks and retrieves items on demand through computer-controlled systems. When an order is placed, the ASRS quickly locates and brings the required items to a designated picking station, streamlining the order fulfillment process.

Inventory Tracking: Monitors and records inventory levels continuously. The system keeps an accurate and real-time count of all items, ensuring that stock levels are always up-to-date and reducing the risk of overstocking or stockouts.

Item Sorting: Sorts items for easy access and organization. The ASRS categorizes and arranges products based on size, weight, and demand frequency, making it easier for warehouse staff to locate and manage inventory.

Order Fulfillment: Prepares and dispatches orders efficiently by automatically gathering the required items and packaging them for shipment. This function speeds up the process of getting products to customers and reduces manual handling.

System Integration: Connects with other warehouse management systems for seamless operations. The ASRS integrates with existing warehouse software, facilitating smooth communication and coordination between different systems and ensuring the entire warehouse operates cohesively.

Storage and Retrieval Machines: The Workhorses of Automation

Storage and Retrieval (S/R) machines are the core components of Automated Storage and Retrieval Systems (ASRS), responsible for the warehouse's movement and handling of inventory. These machines come in various types, each designed to meet specific operational requirements.

Crane-based systems are the traditional workhorses of ASRS. These rail-guided vehicles operate in narrow aisles, moving along three axes to store and retrieve items. Aisle-bound cranes are designed for high-power applications, capable of handling loads up to 3,000 pounds and reaching heights of 30 meters or more. They offer high positioning accuracy and can achieve speeds of up to 3 meters per second horizontally and 1 meter per second vertically. Curve-negotiable cranes, while less common, provide flexibility by operating across multiple aisles using a switch system.

Shuttle systems represent a more dynamic approach to storage and retrieval. These robotic devices travel independently on rails at each storage level, offering high-speed retrieval with throughput ranging from 200 to 700 lines per hour. Shuttle systems excel in handling cases, totes, or trays weighing between 35 to 110 pounds. Their modular and scalable nature allows for easy expansion as business needs change, with the potential to achieve throughput of 300 to 1,000 lines per hour by adding more shuttles.

Robotic cube storage systems represent the newest ASRS technology. In these systems, inventory is stored in bins stacked within a cube structure. Smart robots operate at the top of the cube, shuffling, sorting, and retrieving bins as needed. These systems offer unparalleled flexibility and scalability, as the grid can be built to any shape or size, and additional robots can be easily added to increase throughput.

Each type of S/R machine [2] offers unique advantages and limitations.

• Crane-based systems excel in handling heavy loads with high precision but are typically limited to single-aisle operations.
• Shuttle systems offer greater flexibility and scalability but are better suited for lighter loads.
• Robotic cube storage systems provide the highest level of flexibility and scalability but may require a higher initial investment.

The choice of S/R machine depends on factors such as inventory characteristics, throughput requirements, and available space.

Types of AS/RS

These systems come in various types, each designed to cater to specific storage needs, load capacities, and operational environments. Understanding the distinct characteristics, mechanisms, and advantages of each ASRS type is essential for selecting the right solution for your storage requirements. Below, we will explore the different types of ASRS, detailing their architecture, load weight capabilities, typical usage scenarios, limitations, and key benefits to help you make an informed decision for your warehousing needs.

Vertical Lift Modules (VLMs)

Vertical Lift Modules (VLMs) [3] are advanced automated storage & retrieval systems (AS/RS) featuring two vertical columns of trays and a central inserter/extractor mechanism. When an operator requests an item, the inserter/extractor swiftly moves to the designated tray, retrieves the item, and delivers it to an access point at the front of the module. VLMs can adapt the tray positions based on the height of the stored items, optimizing vertical space utilization. This makes them ideal for environments where floor space is limited, such as urban warehouses and distribution centers.

Appearance: Envision a tall, narrow tower akin to a multi-story parking garage, with shelves stacked vertically. The central mechanism operates like a robotic arm, moving vertically between trays, similar to an elevator delivering goods to different floors.

Application: VLMs are extensively used in e-commerce fulfillment centers and pharmaceutical storage. For instance, a pharmaceutical company might store various medications in a VLM to ensure quick retrieval while maintaining compliance with stringent storage regulations.

Vertical Carousels

Vertical Carousel ASRS

Vertical Carousels [4] consist of bins mounted on a vertical track that rotates to bring the requested bin to the access point when an operator inputs a request. The system is controlled via a user-friendly interface displaying item locations, facilitating quick and easy retrieval. Vertical Carousels are particularly effective for storing small to medium-sized items and can be integrated with other rs systems for a comprehensive solution.

Appearance: Imagine a Ferris wheel, but instead of seats, it has bins filled with items. As the carousel rotates, the desired bin moves smoothly into position for picking.

Application: Commonly used in parts distribution for manufacturing and retail environments, Vertical Carousels efficiently store small components such as automotive parts, enabling quick access for assembly line workers.

Mini-Load AS/RS

Mini-load Automated Storage & Retrieval Systems (AS/RS) [4] are designed for efficient storage and retrieval of small items. They use automated shuttles or cranes that navigate through multi-level storage racks. Upon item request, the system identifies its location, and the shuttle or crane retrieves and delivers it to a picking station. This allows for high-density storage and rapid access to frequently needed items. Mini-load AS systems often work alongside VLMs and Vertical Carousels for a comprehensive small item storage solution.

Appearance: Think of a compact shelving unit with small robotic vehicles zipping around, picking up and delivering items like a miniaturized delivery service within a warehouse.

Application: Ideal for warehouses handling a high volume of small parts, such as electronics or automotive components, a Mini-load AS enhances picking efficiency and accuracy, often integrating with other systems to streamline operations.

Unit Load AS/RS

Unit Load AS/RS systems are designed to handle larger loads, typically using stacker cranes to store and retrieve pallets. The system operates on fixed or movable aisles, with cranes moving vertically and horizontally to access storage locations. When a pallet is needed, the crane retrieves it from the racks and transports it to a designated area for picking or shipping. This system is ideal for high throughput and efficient bulk storage, suitable for environments managing large quantities of goods.

Appearance: Picture a large warehouse with towering shelves and a robotic crane gliding smoothly along tracks, effortlessly lifting and moving heavy pallets as if they were lightweight boxes.

Application: Commonly used in large distribution centers for bulk storage, such as food products or industrial supplies, Unit Load AS/RS enhances throughput and reduces manual handling. It can complement Mini-load systems by clearly distinguishing between bulk and small item storage.

Pallet Shuttle Systems

Shuttle ASRS

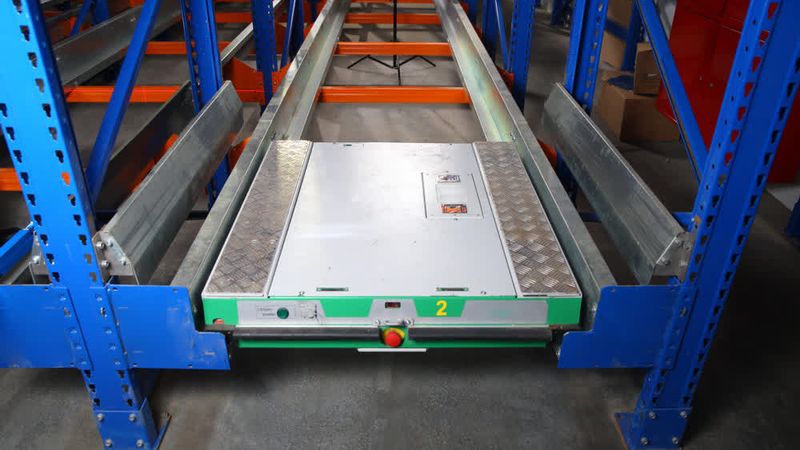

Pallet Shuttle systems [2] utilize autonomous shuttles that move along tracks within racking systems. When a pallet needs to be stored or retrieved, the shuttle moves to the appropriate lane, picks up the pallet, and transports it to the desired location. This system allows for high-density storage and quick access to pallets without requiring a forklift. Pallet Shuttles can work in tandem with Unit Load AS/RS, providing a flexible solution for both high-density and high-throughput environments.

Appearance: Imagine a multi-level parking garage where small, robotic vehicles navigate the aisles, parking and retrieving pallets as needed, maximizing warehouse space efficiency.

Application: Ideal for cold storage applications or high-volume distribution centers, especially for perishable goods. For example, a frozen food distributor might use Pallet Shuttle systems to efficiently manage the storage and retrieval of frozen pallets, ensuring quick access while maintaining optimal storage conditions.

Horizontal Carousels

Horizontal Carousels [4] consist of bins that rotate along a horizontal track. When an operator requests an item, the carousel rotates to bring the corresponding bin directly to the operator's access point. This system is designed for quick retrieval and is often used for small to medium-sized items. Horizontal Carousels can complement Vertical Carousels and VLMs by providing additional flexibility in item retrieval and storage.

Appearance: Imagine a conveyor belt that moves in a circular motion, with bins filled with products sliding into reach, making it easy for workers to pick items without unnecessary movement.

Application: Commonly used in retail and distribution centers for storing small to medium-sized items, such as clothing or electronics. For instance, a clothing retailer might use Horizontal Carousels to store seasonal apparel, allowing staff to quickly access items during peak shopping periods.

Robotic Storage Systems

Robotic Storage System [3] employ autonomous robots to navigate through storage areas, retrieve items, and transport them to picking stations. These robots can operate independently or in coordination with other systems, optimizing the flow of goods. Equipped with advanced sensors and navigation systems, they avoid obstacles and operate safely in dynamic environments. Robotic Systems can be integrated with other AS/RS types for a more flexible and efficient operation.

Appearance: Imagine small, intelligent robots gliding across the warehouse floor, seamlessly navigating around shelves and other robots, picking up items and delivering them to waiting operators.

Application: Ideal for e-commerce fulfillment centers where quick and efficient order processing is essential. For instance, an online retailer might implement Robotic Storage Systems to handle the rapid influx of orders during peak shopping seasons, improving overall efficiency and customer satisfaction.

Cube-Based Storage Systems

Cube-based Storage Systems utilize modular storage units that can be stacked and rearranged to maximize space. Items are stored in cube-shaped compartments, which are accessed by automated retrieval systems. This design allows for flexible storage solutions that can adapt to changing inventory needs and can be integrated with other AS/RS types for enhanced efficiency.

Appearance: Imagine a giant Rubik's Cube where each section can be opened to reveal neatly organized compartments filled with various items, ready to be accessed by automated systems.

Application: Suitable for warehouses with a diverse range of small items, such as hardware or office supplies. For example, an office supply distributor might use Cube-based Storage Systems to organize and quickly retrieve a variety of products, from paper to stationery, enhancing order fulfilment efficiency.

These descriptions provide a comprehensive overview of the operations, visualizations, and practical scenarios for each type of Automated Storage & Retrieval Systems (AS/RS), highlighting their unique characteristics and applications in various environments. Each system is designed to improve efficiency, accuracy, and productivity in modern warehouse operations, often working in conjunction with one another to create a seamless storage and retrieval process.

Below is a table distinguishing the features between these ASRS types:

ASRS in Action: Applications Across Industries

Manufacturing: Streamlining Production Logistics

Automated Storage and Retrieval Systems (ASRS) have revolutionized production logistics in manufacturing environments. These systems seamlessly integrate with production lines, creating a continuous flow of materials and components. ASRS can be directly connected to assembly lines, providing just-in-time delivery of parts and subassemblies. This integration is achieved through sophisticated software that communicates between the ASRS, production planning systems, and shop floor control systems.

A typical ASRS-enabled manufacturing process follows these steps:

• Raw materials and components are received and scanned into the ASRS.
• The ASRS software assigns optimal storage locations based on usage frequency and physical characteristics.
• Production orders are generated and communicated to the ASRS.
• The ASRS retrieves required materials and components.
• Automated guided vehicles or conveyors transport retrieved items to production lines.
• Assembly or manufacturing processes are carried out with just-in-time material supply.
• Finished products are automatically stored in the ASRS or moved to shipping areas.
• The ASRS continuously updates inventory levels and triggers replenishment orders as needed.
• Quality control checks are integrated, with non-conforming items automatically segregated.
• The system generates real-time reports on inventory levels, production rates, and efficiency metrics.

This integration of ASRS in manufacturing processes not only enhances efficiency but also improves traceability, reduces errors, and provides valuable data for continuous process improvement.

E-commerce: Meeting the Demands of Digital Retail

Automated Storage and Retrieval Systems (ASRS) have become indispensable in the fast-paced world of e-commerce fulfillment. These systems excel at handling the high-volume, high-variety nature of online retail by efficiently managing vast inventories of diverse products. ASRS can store and retrieve thousands of different SKUs, from small electronics to large appliances, in a compact, vertically optimized space.

In e-commerce warehouses, ASRS systems are designed to handle rapid fluctuations in demand. They can quickly scale operations during peak seasons or flash sales, retrieving items at speeds far exceeding manual picking methods. The systems use sophisticated algorithms to optimize storage locations based on product velocity, ensuring that fast-moving items are easily accessible.

ASRS plays a crucial role in reducing order processing times and improving accuracy in e-commerce fulfillment. By automating the storage and retrieval process, these systems eliminate time-consuming manual searches and reduce human errors. ASRS can locate and retrieve items in seconds, significantly cutting down on pick times. Moreover, the system's precision ensures that the correct items are picked for each order, drastically reducing error rates and improving customer satisfaction.

Integration of ASRS with other automation technologies is key to creating a seamless e-commerce fulfillment process. ASRS systems often work in conjunction with:

1. Warehouse Management Systems (WMS) for overall inventory control and order management
2. Automated Guided Vehicles (AGVs) for transporting goods between ASRS and packing stations
3. Robotic picking systems for item selection from ASRS-retrieved bins
4. Automated packaging systems for efficient order preparation
5. Conveyor systems for smooth movement of goods throughout the facility

Here's a flow chart illustrating the e-commerce order fulfillment process with ASRS:

    A[Customer places order] --> B[Order received by WMS]

    B --> C[WMS sends retrieval request to ASRS]

    C --> D[ASRS locates and retrieves items]

    D --> E[Items transported to picking station]

    E --> F[Order picked and verified]

    F --> G[Order packaged]

    G --> H[Shipping label applied]

    H --> I[Order sorted for shipping]

    I --> J[Order shipped to customer]

This integrated approach allows e-commerce businesses to handle large volumes of orders with speed and precision, meeting the ever-increasing demands of digital retail.

Suggested Readings:  What is an Autonomous Vehicle: A Comprehensive Guide to its Engineering Principles and Applications

Advanced ASRS Technologies: Pushing the Boundaries of Automation

AI and Machine Learning Integration: Enhancing ASRS Intelligence

Artificial Intelligence (AI) and Machine Learning (ML) are revolutionizing Automated Storage and Retrieval Systems (ASRS), significantly enhancing their decision-making capabilities and operational efficiency. These advanced technologies enable ASRS to evolve from rule-based systems to intelligent, adaptive solutions that continuously learn and improve.

In the realm of decision-making and predictive maintenance, AI and ML algorithms analyze vast amounts of historical and real-time data from sensors and IoT devices. These algorithms can detect subtle patterns and anomalies that might indicate potential equipment failures or performance degradation. For instance, machine learning models can predict when a specific component of an ASRS, such as a robotic arm or conveyor belt, is likely to fail based on its operational data. This predictive capability allows for proactive maintenance, reducing unplanned downtime and extending equipment lifespan.

AI plays a crucial role in optimizing storage strategies and order picking sequences. Advanced algorithms can dynamically adjust storage locations based on factors such as item velocity, size, weight, and order frequency. This dynamic slotting ensures that high-demand items are stored in easily accessible locations, reducing retrieval times. For order picking, AI can analyze historical order data and current inventory levels to determine the most efficient picking routes and sequences, significantly reducing travel time and increasing throughput.

Several examples demonstrate the tangible improvements AI brings to ASRS performance:

1. A major e-commerce warehouse implemented an AI-driven ASRS that reduced order processing times by 30% through optimized storage and retrieval paths.
2. An automotive parts distributor used ML algorithms to predict seasonal demand fluctuations, allowing their ASRS to preemptively reorganize inventory, resulting in a 25% increase in order fulfillment speed during peak periods.
3. A pharmaceutical company integrated AI-powered computer vision with their ASRS, achieving a 99.9% accuracy rate in item identification and reducing picking errors by 80%.

The integration of AI and ML in ASRS represents a significant leap forward in warehouse automation, offering unprecedented levels of efficiency, accuracy, and adaptability.

Robotics and ASRS: The Next Frontier in Warehouse Automation

The integration of mobile robots with traditional Automated Storage and Retrieval Systems (ASRS) represents a significant leap forward in warehouse automation. Autonomous Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) work seamlessly with ASRS to enhance flexibility and efficiency. AGVs follow predefined paths, often guided by markers or wires embedded in the floor, to transport goods between ASRS and other warehouse areas. AMRs, equipped with advanced sensors and AI, navigate dynamically, adapting their routes based on real-time environmental data. These mobile robots interface with ASRS through wireless communication protocols, receiving instructions for pickup and delivery tasks directly from the warehouse management system.

Hybrid ASRS-robotics systems offer significant advantages in flexibility and scalability. Unlike traditional fixed ASRS installations, hybrid systems can easily adapt to changing warehouse layouts and inventory profiles. The combination of stationary ASRS for high-density storage and mobile robots for flexible transport allows warehouses to optimize space utilization while maintaining agility. Scalability is enhanced as additional robots can be deployed during peak periods without major infrastructure changes. This modular approach enables warehouses to incrementally increase automation levels, balancing capital investment with operational needs.

Emerging robotic technologies specifically designed for ASRS environments are pushing the boundaries of warehouse automation. Robotic shuttle systems, capable of three-dimensional movement within storage racks, are revolutionizing goods-to-person operations. These shuttles can navigate complex rack structures, retrieving items from multiple levels and delivering them to picking stations. Advanced robotic arms with computer vision capabilities are being integrated into ASRS picking stations, enabling automated item selection from bins delivered by the ASRS. Swarm robotics concepts are also being applied, where multiple small robots collaborate to perform tasks traditionally handled by larger machines, offering increased redundancy and adaptability.

The following diagram illustrates the interaction between robots and ASRS components:

graph TD

    A[Warehouse Management System] --> B[ASRS Controller]

    A --> C[Robot Fleet Management]

    B --> D[Storage Racks]

    B --> E[S/R Machines]

    C --> F[AGVs/AMRs]

    E --> G[Picking Stations]

    F --> G

    G --> H[Packing Area]

    F --> H

    D <--> E

    E <--> F

    F <--> D

This diagram shows how the Warehouse Management System coordinates both the ASRS and robot fleet. The ASRS controller manages storage racks and S/R machines, while robot fleet management directs AGVs and AMRs. These systems interact at various points, such as picking stations and storage areas, creating a cohesive and efficient automated warehouse environment.

Implementing ASRS: Considerations for Engineering Professionals

System Design and Planning: Laying the Groundwork for Success

Designing an Automated Storage and Retrieval System (ASRS) requires careful consideration of multiple factors to ensure optimal performance and return on investment. Key considerations include throughput requirements, which determine the speed and capacity of the system, and SKU profiles, which influence storage strategies and equipment selection. The physical characteristics of items to be stored, such as size, weight, and fragility, dictate the type of storage units and handling equipment needed. Warehouse layout and available space, including ceiling height, impact the overall system design and storage density. Environmental factors, such as temperature and humidity requirements for stored goods, may necessitate specialized equipment or climate control systems.

Scalability and flexibility are crucial in ASRS design to accommodate future growth and changing business needs. A scalable system allows for easy expansion of storage capacity and throughput without major disruptions to existing operations. This might involve designing modular rack systems that can be extended or adding additional aisles or levels to the existing structure. Flexibility in ASRS design enables the system to adapt to changes in product mix, order profiles, or seasonal fluctuations. This can be achieved through configurable storage solutions, adaptable picking strategies, and integration capabilities with other warehouse systems.

Conducting a comprehensive cost-benefit analysis is essential for justifying ASRS implementation. This process involves quantifying both direct and indirect benefits against the total cost of ownership. Direct benefits include labor savings, increased storage density, and improved inventory accuracy. Indirect benefits may encompass enhanced worker safety, reduced product damage, and improved customer satisfaction due to faster order fulfillment. Costs to consider include initial capital investment, installation, training, ongoing maintenance, and potential facility modifications. The analysis should also factor in the expected lifespan of the system and potential future expansion costs.

The ASRS planning process typically follows these steps:

• Define project objectives and requirements
• Analyze current operations and identify pain points
• Collect and analyze data on inventory, order profiles, and throughput
• Develop conceptual designs and evaluate alternatives
• Conduct site surveys and assess facility constraints
• Perform detailed engineering and system design
• Develop a comprehensive implementation plan
• Evaluate and select vendors and integrators
• Finalize budget and secure funding
• Create a detailed project timeline
• Develop training programs for staff
• Plan for system testing and commissioning
• Establish performance metrics and monitoring processes
• Design contingency plans for potential disruptions
• Create a long-term maintenance and upgrade strategy

This systematic approach ensures that all aspects of ASRS implementation are thoroughly considered, minimizing risks and maximizing the chances of project success.

Integration Challenges: Overcoming Technical Hurdles

Implementing Automated Storage and Retrieval Systems (ASRS) in existing facilities presents significant integration challenges. One common hurdle is the physical constraints of legacy warehouses, which may not be designed to accommodate the vertical space requirements or floor load capacities of ASRS. Existing IT infrastructure often lacks the necessary interfaces to communicate seamlessly with advanced ASRS control systems, leading to data silos and inefficiencies. Additionally, the complexity of integrating ASRS with multiple existing systems, such as Warehouse Management Systems (WMS), Enterprise Resource Planning (ERP) systems, and material handling equipment, can result in compatibility issues and operational disruptions.

Integrating ASRS with legacy warehouse management systems requires a strategic approach. One effective strategy is to implement middleware solutions that act as translators between the legacy WMS and the ASRS control system. This allows for data exchange without requiring a complete overhaul of the existing WMS. Another approach is to gradually phase in ASRS functionality, starting with specific zones or processes, while maintaining parallel operations with the legacy system. This incremental integration allows for testing and refinement of interfaces before full-scale implementation. Cloud-based integration platforms can also facilitate smoother connectivity between legacy systems and modern ASRS, providing scalability and flexibility.

Standardization and interoperability play crucial roles in successful ASRS integration. Adopting industry standards such as ISA-95 for enterprise-control system integration or VDA 5050 for AGV communication ensures compatibility across different systems and vendors. Standardized data formats and communication protocols enable seamless information flow between ASRS, WMS, and other warehouse systems. Interoperability allows for the creation of a cohesive ecosystem where ASRS can interact efficiently with various automation technologies, such as conveyor systems, robotic picking arms, and autonomous mobile robots (AMRs). This interoperability is essential for achieving a fully integrated and flexible warehouse automation solution.

Best practices for successful ASRS integration include:

1. Conduct a comprehensive assessment of existing systems and infrastructure before ASRS implementation
2. Develop a detailed integration plan with clearly defined interfaces and data exchange requirements
3. Engage all stakeholders, including IT, operations, and maintenance teams, in the integration process
4. Implement robust data mapping and cleansing procedures to ensure data integrity across systems
5. Utilize simulation and emulation tools to test integration scenarios before live implementation
6. Adopt a modular integration approach to allow for future scalability and technology upgrades
7. Invest in training programs to ensure staff are proficient in operating integrated systems
8. Establish clear communication protocols between ASRS and other warehouse systems
9. Implement rigorous testing and validation procedures throughout the integration process
10. Develop contingency plans for system failures or integration issues to minimize operational disruptions

Maintenance and Optimization: Ensuring Long-term Performance

Preventive maintenance is crucial for the long-term performance and reliability of Automated Storage and Retrieval Systems (ASRS). Regular inspections, cleaning, and component replacements help prevent unexpected breakdowns, reduce downtime, and extend the system's lifespan. Preventive maintenance schedules typically include tasks such as lubricating moving parts, checking and tightening electrical connections, and inspecting wear-prone components like belts and bearings. By addressing potential issues before they escalate, preventive maintenance ensures consistent operation, maintains high throughput rates, and minimizes the risk of costly emergency repairs.

Optimizing ASRS performance over time involves a multifaceted approach. One key strategy is continuous software updates and fine-tuning of control algorithms to improve system responsiveness and efficiency. Another approach is to regularly review and adjust storage strategies based on changing inventory profiles and order patterns. This may involve reconfiguring storage locations, optimizing pick paths, or implementing dynamic slotting algorithms. Additionally, periodic training and upskilling of operators and maintenance staff ensure that the human element of the system remains aligned with technological advancements.

Data analytics plays a pivotal role in identifying areas for ASRS improvement. By collecting and analyzing operational data, such as retrieval times, error rates, and equipment utilization, managers can pinpoint bottlenecks and inefficiencies. Predictive analytics can forecast potential equipment failures, allowing for proactive maintenance interventions. Machine learning algorithms can optimize inventory placement and order picking sequences, continuously adapting to changing demand patterns. Real-time performance monitoring through IoT sensors provides immediate insights into system health and operational efficiency, enabling rapid response to anomalies.

This table illustrates how different maintenance approaches impact ASRS performance. While reactive maintenance leads to high downtime and unpredictable costs, preventive and predictive maintenance strategies significantly improve system reliability and longevity. Condition-based maintenance, leveraging real-time data, offers the most optimized approach, ensuring peak performance while minimizing unnecessary interventions.

Conclusion

Automated Storage and Retrieval Systems (ASRS) offer significant benefits to warehouse operations, including improved pick accuracy up to 99.9%, doubled pick throughput rates, enhanced inventory control, and optimized space utilization. These systems also contribute to better workplace ergonomics and safety by reducing the risk of injuries associated with manual material handling. However, implementing ASRS comes with challenges such as substantial initial investment costs, ongoing maintenance requirements, and potential inflexibility for varied tasks.

The transformative potential of ASRS in warehouse automation is undeniable. By integrating advanced technologies like AI, machine learning, and IoT, ASRS is poised to revolutionize inventory management, order fulfillment, and overall supply chain efficiency. These systems enable warehouses to meet the increasing demands of e-commerce and just-in-time manufacturing while optimizing operational costs and improving customer satisfaction.

As ASRS technology continues to evolve rapidly, it is crucial for engineering professionals to stay informed about ongoing developments. Advancements in robotics, data analytics, and system integration are constantly expanding the capabilities and applications of ASRS. By keeping abreast of these innovations, businesses can make informed decisions about implementing or upgrading ASRS to maintain a competitive edge in the rapidly changing landscape of warehouse automation.

Frequently Asked Questions

1. What is the typical return on investment (ROI) for an ASRS?

   The ROI for an ASRS varies depending on factors such as facility size, inventory volume, and operational requirements. However, many businesses report ROI within 3-5 years, primarily through labor cost savings, increased storage density, and improved accuracy.



2. Can ASRS be integrated with existing warehouse management systems (WMS)?

   Yes, most modern ASRS solutions are designed to integrate with existing WMS platforms. Integration typically involves middleware solutions or API connections to ensure seamless data exchange and operational coordination.



3. How does ASRS impact workforce requirements?

   While ASRS reduces the need for manual labor in picking and storing tasks, it often leads to a shift in workforce composition rather than wholesale job elimination. New roles emerge in system operation, maintenance, and data analysis.



4. Are ASRS suitable for small to medium-sized businesses?

   Traditionally, ASRS was primarily adopted by large enterprises due to high implementation costs. However, recent advancements have made scalable and modular ASRS solutions more accessible to small and medium-sized businesses, particularly in e-commerce and specialized manufacturing sectors.



5. How does ASRS handle product variability and seasonal fluctuations?

   Modern ASRS employs dynamic slotting algorithms and AI-driven inventory management to adapt to changing product mixes and demand patterns. However, businesses with highly variable or seasonal inventories should carefully consider system flexibility during the design phase.



6. What are the energy consumption implications of implementing ASRS?

   While ASRS requires electricity to operate, it often leads to overall energy savings compared to traditional warehousing. This is achieved through optimized space utilization (reducing heating/cooling requirements) and more efficient operations. Many systems also incorporate energy recovery mechanisms.

7. How does ASRS ensure inventory accuracy and prevent errors?

ASRS utilizes barcode scanning, RFID technology, and computer vision systems to track and verify inventory movements. These technologies, combined with automated processes, significantly reduce human error, typically achieving inventory accuracy rates of 99.9% or higher.

References

[1] Mwes. AS-RS-system-components. Link

[2] Craftsmanstorage. Automated Storage Systems. Link

[3] Kardex-remstar. ASRS Types. Link

[4] Agvnetwork. ASRS Types. Link
