Can Aluminum Be Powder Coated: Understanding the Process and Best Practices

Introduction

Powder coating on aluminum represents a significant technological evolution from traditional metal finishing techniques such as liquid painting and anodizing. This method offers enhanced durability, superior aesthetic appeal, and better environmental compliance, making it highly relevant in today's engineering and manufacturing landscapes. As industries prioritize sustainability, powder coating stands out  for its ability to  eliminate volatile organic compounds (VOCs), aligning with stricter environmental regulations that steer away from solvent-based finishes.

For engineering professionals, grasping the nuances of powder coating on aluminum is crucial. It not only affects the design and functionality of products across various sectors, including automotive, aerospace, and consumer electronics but also drives innovation in application processes to meet high industry standards and consumer expectations. Understanding this aluminum powder coating process equips professionals to effectively contribute to advancements in metal finishing, ensuring products are both high-quality and environmentally responsible.

What Is Powder Coating?

Powder coating is a dry finishing process where a free-flowing, dry powder is applied to a surface, typically metal, and then cured under heat to form a skin-like layer. Unlike traditional liquid coatings, powder coating does not require solvents, making it environmentally friendly due to reduced volatile organic compound (VOC) emissions. This process offers enhanced durability, resistance to fading, chipping, and scratching, and provides a thicker coating than conventional paints without running or sagging.

Process Breakdown: Powder Coating on Aluminum

In this process breakdown, we explore the key steps involved in achieving a high-quality powder-coated finish on aluminum surfaces. From surface preparation techniques to inspection methods are discussed below.

Surface Preparation Techniques:

Proper surface preparation is crucial for ensuring effective adhesion of powder coating to aluminum. This involves a detailed understanding of the materials used and the environmental conditions they face. The effectiveness of powder coating hinges on precise surface preparation, tailored to ensure optimal adhesion and durability. This process involves a series of steps that induce chemical and physical modifications to the aluminum surface, enhancing its suitability for coating.

• Cleaning: Initially, the aluminum surface must be cleaned thoroughly to eliminate all forms of contaminants such as grease, oils, and environmental debris. This is usually accomplished through a combination of mechanical (such as abrasive blasting) and chemical methods (using specialized degreasers and solvents). Understanding the nature of typical contaminants and their interaction with cleaning agents provides insights into choosing the most effective cleaning method for different aluminum products.

• Etching: After cleaning, the aluminum is treated with an etching solution, typically involving either acidic or alkaline substances. This process is not merely about further cleaning; it microscopically roughens the aluminum surface, enhancing its total surface area and thus improving the mechanical bond of the powder coating. Explaining the choice of acid or base for different aluminum types helps professionals tailor the etching process to achieve desired surface properties and coating outcomes.

• Applying Conversion Coatings: The final preparation step involves the application of conversion coatings—such as chromate, phosphate, or more environmentally friendly zirconium-based alternatives. These coatings play a dual role: they enhance the metal's corrosion resistance and facilitate a stronger chemical bond between the aluminum and the powder coating. Discussing the shift from traditional to newer, less harmful conversion coatings illustrates ongoing advancements in environmental sustainability within the coating industry.

Each stage of surface preparation is critical, as it not only physically prepares the aluminum but also chemically modifies its properties to optimize the effectiveness and longevity of the powder coating.

The Role of Primers

Primers play a crucial role in the powder coating process, particularly when it comes to preparing aluminum surfaces for coating. They serve not only as a foundational layer that enhances adhesion but also significantly improve the durability and performance of the final coating.

Types of Primers and Their Interactions:

• Epoxy Primers: Known for their excellent adhesion and corrosion resistance, epoxy primers form a strong bond with aluminum surfaces. They chemically interact with the metal to create a protective barrier that is impervious to moisture and environmental contaminants. This interaction involves a cross-linking process that enhances the mechanical properties of the coating, making it more durable against physical impacts and chemical reactions.

• Zinc-rich Primers: These primers are favored for their ability to provide cathodic protection to aluminum. The zinc particles in the primer sacrificially corrode in place of the aluminum, thereby extending the life of the substrate. This process is particularly valuable in environments where corrosion is a significant concern, such as in marine or industrial settings.

• Acrylic Primers: Acrylics are used for their quick-drying properties and ease of application. While they do not provide the same level of corrosion resistance as epoxies or zinc-rich primers, they offer a smooth finish with good environmental resistance. Acrylics bond through a drying process that involves the evaporation of solvents, leaving behind a hard, protective layer.

The pre-treatment processes are equally important in ensuring the longevity and effectiveness of the powder coating. These processes prepare the surface at a molecular level, enhancing the bond between the primer and the aluminum substrate. It enhances the mechanical and chemical bonding of the coating, preventing delamination and improving resistance to environmental stresses like UV light and salt spray.

Comparison of Pre-treatment Methods:

Understanding the specific properties and applications of each primer and pre-treatment method allows for optimal selection based on the project requirements, ensuring a high-quality finish that is durable and cost-effective.

Recommended reading: Deoxidizing Aluminum as a Pretreatment

Powder Application Methods for Powder Coating on Aluminum

In powder coating on aluminum, two primary methods are commonly used for powder application: electrostatic spraying and fluidized bed dipping. Each method offers unique advantages and is selected based on factors such as the size, shape, and complexity of the aluminum part being coated.

Electrostatic Spraying:

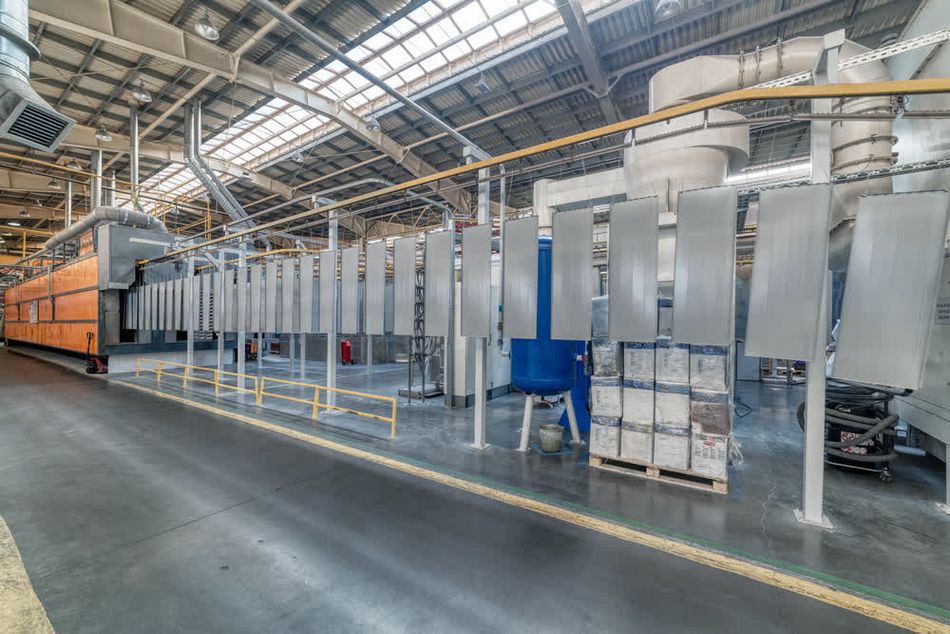

Aluminum Electrostatic Powder Coating

In electrostatic spraying, the dry powder coating material is electrostatically charged as it is sprayed onto the grounded aluminum substrate. The positively charged powder particles are attracted to the negatively charged surface of the aluminum, resulting in efficient and even coverage. Electrostatic spray guns are used to apply the powder coating. These guns impart an electrostatic charge to the powder particles as they exit the nozzle, ensuring precise control over the application process. The advantages of electrostatic spraying are:

• Electrostatic spraying enables accurate and uniform coverage of complex shapes and hard-to-reach areas.

• The electrostatic attraction between powder particles and the aluminum substrate minimizes overspray and waste, leading to higher transfer efficiency.

• Electrostatic spraying is suitable for both small and large aluminum parts, showcasing its versatility in powder application.

Fluidized Bed Dipping:

Fluidized bed dipping involves immersing the preheated aluminum part into a fluidized bed containing the powder coating material. The fluidized bed consists of powder particles suspended in a stream of air, creating a fluid-like consistency. A fluidized bed coating system typically includes a tank filled with the powder coating material and a source of compressed air to fluidize the powder particles. The advantages of fluidized bed dipping are:

• Fluidized bed dipping allows for the application of thick, uniform coatings on aluminum parts, making it suitable for heavy-duty applications.

• Compared to electrostatic spraying, fluidized bed dipping requires fewer steps and equipment, making it a cost-effective option for high-volume production.

• The heat from the preheated aluminum part melts the powder coating material upon immersion, promoting excellent adhesion and coverage.

Both electrostatic spraying and fluidized bed dipping are effective methods for applying powder coatings to aluminum surfaces. The choice between the two methods depends on factors such as the specific requirements of the application, the desired coating thickness, and the production volume.

Curing Process and Methods

Once the powder coating has been applied to the aluminum surface, the curing process is essential to ensure the formation of a durable, uniform finish. Curing involves heating the coated aluminum to a specific temperature, causing the powder particles to melt and chemically react, forming a solid, bonded coating. Here's an overview of the curing process and commonly used methods:

• Heat Curing: The most widely used method involves placing the coated aluminum parts in a curing oven. The temperature and duration of heating are carefully controlled to achieve optimal curing without damaging the coating. Typically, temperatures range between 350°F to 450°F (177°C to 232°C), and curing times vary depending on the specific powder coating formulation and substrate.

• Infrared (IR) Curing: Infrared radiation can also be used to cure powder coatings on aluminum surfaces. IR curing offers faster heating rates and shorter curing times compared to conventional ovens, making it suitable for high-speed production environments. This method is particularly effective for thin coatings or heat-sensitive substrates.

• UV Curing: Ultraviolet (UV) radiation is employed to cure certain types of powder coatings on aluminum surfaces. UV-curable powder coatings contain photo-initiators that react when exposed to UV light, initiating the curing process. UV curing offers rapid curing times and energy efficiency but may require specialized equipment and formulations.

• Electron Beam (EB) Curing: In this method, high-energy electron beams are used to cure powder coatings on aluminum surfaces. EB curing offers precise control over the curing process, allowing for uniform curing without the need for heating. However, it requires specialized equipment and may be less commonly used in powder coating applications.

• Low-Temperature Cure: Some powder coatings are formulated to cure at lower temperatures, reducing energy consumption and the risk of substrate distortion or discoloration. Low-temperature curing options expand the range of substrates that can be powder coated and offer environmental benefits by reducing energy usage.

By carefully selecting the appropriate curing method and parameters, manufacturers can achieve durable, high-quality powder-coated finishes on aluminum surfaces that meet the performance requirements of various applications. Each curing method has its advantages and considerations, allowing for flexibility and optimization based on specific production needs and substrate characteristics.

Cooling Process after Curing

After the cooling process, thorough inspection becomes essential to ensure the quality and integrity of the finished coating on powder-coated aluminum surfaces. Proper cooling prevents thermal stress, minimizes the risk of coating defects, and allows for safe handling of the coated parts. Here's an overview of the cooling process after curing:

• Natural Cooling: The simplest method involves allowing the coated aluminum parts to cool naturally at room temperature. Natural cooling allows for gradual temperature reduction, which helps prevent thermal shock and potential damage to the coating. However, this method may be time-consuming, depending on the thickness of the coating and the ambient temperature.

• Forced Air Cooling: In industrial settings, forced air cooling systems are often used to accelerate the cooling process. Air cooling involves circulating ambient air around the coated aluminum parts, facilitating faster heat dissipation. This method is efficient for reducing cooling times and increasing production throughput, particularly for high-volume manufacturing operations.

• Water Quenching: In some cases, especially with heat-sensitive substrates or thin coatings, water quenching may be employed to rapidly cool the coated aluminum parts. Water quenching involves immersing the hot parts in a water bath or spraying them with water to rapidly reduce their temperature. While effective for rapid cooling, water quenching requires careful control to prevent thermal shock and coating damage.

• Cooling Chambers: For precise temperature control and uniform cooling, specialized cooling chambers or tunnels may be used. These chambers provide controlled environments with adjustable temperature and airflow settings to optimize the cooling process for specific coating formulations and substrate materials. Cooling chambers ensure consistent coating quality and minimize the risk of defects due to improper cooling.

Inspection of Powder-Coated Aluminum

Following the cooling process of powder-coated aluminum surfaces, thorough inspection is essential to ensure the quality and integrity of the finished coating. Post-cooling inspection involves assessing various aspects of the coating for defects, imperfections, and adherence to specifications. The overview of the post-cooling inspection process are:

• Visual Inspection: Visual examination of the coated aluminum parts is conducted to identify any visible defects such as cracks, bubbles, pinholes, or uneven coating thickness. Inspectors examine the entire surface of the parts under adequate lighting conditions to detect any irregularities that may affect the appearance or performance of the coating.

• Adhesion Testing: Adhesion testing is performed to evaluate the bond strength between the powder coating and the aluminum substrate. Various methods, such as cross-cut tape test, pull-off test, or bend test, may be employed to assess the adhesion quality. Adhesion testing helps ensure that the coating adheres securely to the substrate and withstands mechanical stresses during service life.

• Thickness Measurement: Coating thickness measurement is conducted using precision instruments such as magnetic or eddy current thickness gauges. The thickness of the powder coating is measured at multiple points across the surface to ensure uniformity and adherence to specified thickness requirements. Deviations from the target thickness may indicate process inconsistencies or coating application issues.

• Visual Color and Gloss Inspection: Color and gloss levels of the powder-coated surfaces are evaluated visually to ensure consistency and conformity to the desired specifications. Color matching against reference standards and assessment of gloss levels help maintain the aesthetic appeal and uniform appearance of the coated aluminum parts.

• Surface Defect Analysis: In-depth analysis of surface defects, such as orange peel, cratering, or fish eyes, may be conducted using magnification or surface profiling techniques. Surface defect analysis helps identify root causes of defects and implement corrective measures to improve coating quality and appearance.

• Functional Performance Testing: Depending on the application requirements, functional performance testing may be performed to assess specific properties of the powder-coated aluminum parts, such as corrosion resistance, chemical resistance, abrasion resistance, or weathering durability. Performance testing ensures that the coating meets the functional requirements for its intended use.

By conducting comprehensive post-cooling inspection, manufacturers can identify and rectify any issues or discrepancies in the powder-coated aluminum surfaces, ensuring high-quality, durable finishes that meet customer expectations and performance standards.

Recommended reading: Explore 3d scanners and 3d measurement technologies.

Materials Used in Powder Coating

Powder coatings are formulated using different types of polymers, each offering unique properties and advantages. The choice between thermoset and thermoplastic powders plays a crucial role in determining the performance and characteristics of the final coating.

• Thermoset Polymer: These powders undergo a chemical reaction during the curing process, forming a longer molecular chain and creating a high cross-link density. This results in a durable finish that is highly resistant to chemicals and environmental factors. The process has been refined over the years, ensuring consistent and reliable performance in various applications.

• Thermoplastic Polymer: In contrast, thermoplastic powders melt when heated and harden upon cooling, forming a solid film. They offer flexibility and ease of use, making them suitable for applications where recyclability is a priority, such as outdoor furniture. The ability to remelt and reshape thermoplastic coatings facilitates efficient recycling processes.

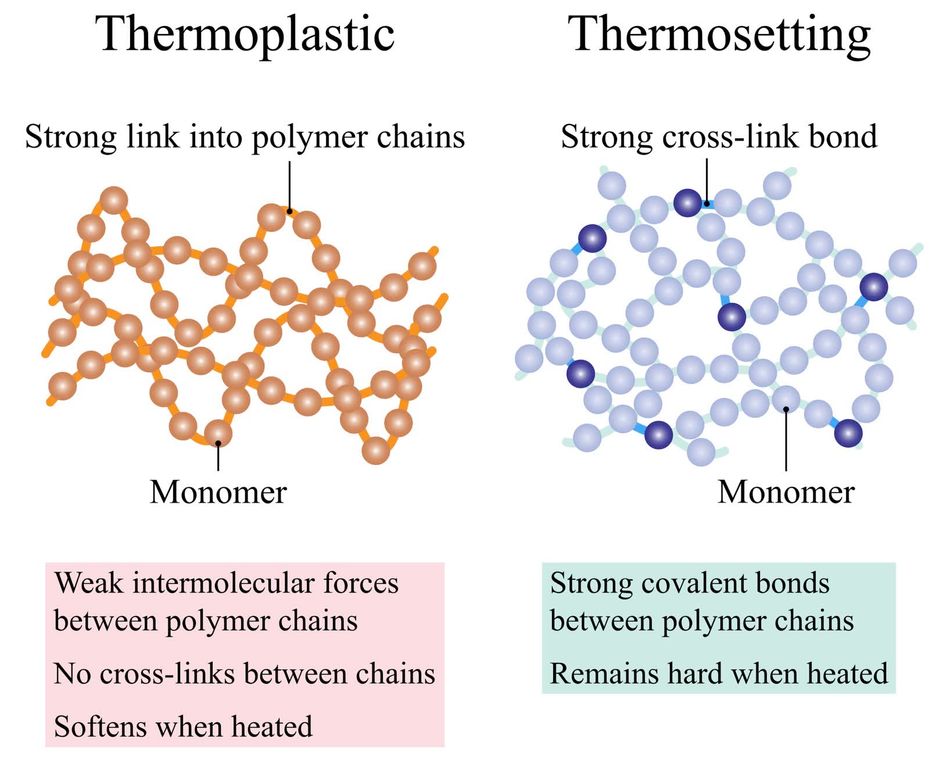

Thermoplastic vs Thermoset Polymer

The choice between thermoset and thermoplastic powders depends on specific application requirements, balancing factors such as flexibility, chemical resistance, and finish quality. Ongoing innovations in powder technology continue to expand the applications of both types of polymers, enhancing environmental alignment and economic benefits.

Benefits of Powder Coating on Aluminum

Powder coating on aluminum offers significant advantages across various industrial applications, making it a superior finishing technique due to its unique properties and advanced application methods:

• Durability: Powder coatings form a thick, adhesive layer that is highly resistant to chipping, scratching, and wear, far exceeding the performance of traditional paints. For example, automotive components treated with powder coating withstand harsh environments and last longer than those treated with standard finishes. This enhanced durability not only extends the life of products but also reduces the need for frequent replacements, contributing to sustainability and cost savings.

• Cost-effectiveness: The initial costs of powder coating are offset by its long-term durability and the reduced need for maintenance. Industries report a significant reduction in operational costs due to fewer repaint cycles and lower labor costs. Additionally, the recycling capability of overspray during application minimizes waste, making it economically efficient and reducing material costs.

• Environmental Friendliness: Unlike liquid coatings, powder coating does not use solvents and emits minimal volatile organic compounds (VOCs), aligning with global environmental standards to reduce air pollution. Recent advancements in eco-friendly powder formulations have further minimized the environmental impact, leading to wider adoption in industries committed to ecological sustainability.

• Aesthetic Versatility: The availability of a broad spectrum of colors and textures in powder coatings allows for creative and diverse applications, from consumer electronics to architectural structures. This versatility supports industry trends towards customization and high-quality finishes. Technological innovations in powder application techniques have also improved the uniformity and quality of finishes, enhancing both aesthetic appeal and functional performance.

These benefits underscore why powder coating is increasingly chosen over traditional methods, providing durable, cost-effective, environmentally friendly, and visually appealing finishes that meet the rigorous demands of modern industry.

Practical Applications: Real-World Usage of Powder-Coated Aluminum

Powder-coated aluminum is extensively utilized across various industries due to its durability and versatility. This section explores the major industries and specific applications that benefit from the properties of powder-coated aluminum, enhanced with real-world examples and a deeper look at the material properties.

Automotive Industry

Powder Coated Aluminum Alloy Rim

In the automotive sector, powder-coated aluminum is crucial for components like wheels, engine parts, and trim. Alloys such as 6061 are favored for their excellent strength-to-weight ratio and corrosion resistance, qualities essential for prolonging the life of automotive parts exposed to harsh environments. For instance, the use of 6061 in car wheels helps manufacturers achieve a balance of performance and lightweight design, contributing to overall vehicle efficiency.

Architecture

Architectural applications of powder-coated aluminum include window frames, panels, and facades. Alloys like 3003 and 5052 are commonly used in these applications because of their formability and resistance to weathering, which is critical for maintaining aesthetic appeal and structural integrity in building exteriors. The application of powder-coated aluminum in the construction of the Louvre Abu Dhabi, where it contributes to both the aesthetic value and the longevity of the building's intricate metalwork, illustrates its value.

Aerospace Industry

The aerospace industry relies on powder-coated aluminum for components that require a high level of precision and durability. Alloy 7075 is particularly valued for its high strength, which is vital for structural components of aircraft that must endure extreme stresses. The use of 7075 in aircraft frames demonstrates its critical role in ensuring safety and durability under intense operational conditions.

These examples illustrate how the inherent properties of different aluminum alloys, combined with the benefits of powder coating, make them ideal for use in environments where performance and durability are paramount. The choice of alloy and coating specifications is tailored to meet the rigorous demands of each industry, ensuring optimal performance and longevity.

Recommended reading: Aluminium Alloys: Go-to materials for automotive, aerospace, and more.

Addressing Common Challenges and Considerations

In the realm of powder coating, several common issues can affect the quality and appearance of the final product. Understanding these challenges and knowing how to address them is crucial for maintaining high standards in powder coating applications.

Uneven Coating:

• Problem: Uneven coating often results from improper application techniques or incorrect settings on the spraying equipment.

• Solution: To prevent uneven coatings, ensure consistent application and maintain the equipment properly. It is crucial to calibrate the powder flow and adjust the distance and angle of the spray gun to ensure uniform coverage. Regular maintenance of the spray equipment can prevent most instances of uneven coating, safeguarding the quality of the finish.

Color Mismatch:

• Problem: Color mismatches can occur due to variations in powder batch quality, incorrect curing temperatures, or uneven powder thickness.

• Solution: Regularly calibrate color matching tools and use a consistent batch of powder from the same manufacturer. Verify that the curing oven is at the correct temperature and that the powder is applied evenly to avoid color variations. Implementing strict quality control on material inputs and process conditions can significantly reduce instances of color mismatch.

Outgassing in Cast Alloys:

• Problem: Outgassing is a common issue with cast alloys where gases trapped in the casting are released during the curing process, creating bubbles or blisters in the finish.

• Solution: To mitigate outgassing, preheat the cast parts to release trapped gases before applying the powder. Using powders specifically formulated for outgassing can also help in creating a smoother finish without defects. Adopting these practices can help minimize the impact of outgassing on the final product's appearance and durability.

Each of these problems, if not addressed properly, can lead to significant issues in the durability and appearance of the coated products. By understanding the technical reasons behind these common challenges and implementing effective solutions, professionals can significantly improve the quality of their powder coating operations.

Repair Techniques for Powder Coating on Aluminum

When damage occurs to powder-coated aluminum surfaces, several repair techniques can be employed to restore their appearance and functionality. Here are common repair methods:

• Touch-Up Applications: For minor imperfections such as small scratches, chips, or abrasions, touch-up applications are often sufficient. This involves using matching powder coating materials to cover the damaged area. The repair material is applied with precision, ensuring seamless integration with the existing coating.

• Spot Treatments with Liquid Paints: In cases where the damage is more extensive or the use of powder coating materials is not feasible, spot treatments with compatible liquid paints can be employed. These liquid paints are carefully applied to the damaged area, following proper surface preparation and application techniques to achieve a uniform finish.

• Re-Coating: When significant damage or deterioration affects large areas of the powder-coated surface, re-coating may be necessary. This process involves stripping the existing powder coating from the aluminum substrate, typically through abrasive blasting or chemical stripping methods. After thorough surface preparation to remove any residue and promote adhesion, a new layer of powder coating is applied using standard powder coating equipment and cured according to the manufacturer's specifications.

Regardless of the chosen repair method, it's essential to follow proper surface preparation techniques, adhere to guidelines for material selection and application, and ensure compatibility between repair materials and existing coatings. By employing appropriate repair techniques, damaged powder-coated aluminum surfaces can be effectively restored, extending their lifespan and maintaining their aesthetic appeal.

Conclusion

The exploration of powder coating on aluminum within this article has provided a deep dive into its essential processes, from preparation to application, highlighting its relevance across various sectors such as automotive, aerospace, and construction. Emphasizing the importance of these processes reflects the broader industry's move towards more durable, cost-effective, and environmentally friendly solutions. The inclusion of recent advancements and the shift towards sustainable practices demonstrate the dynamic nature of the field and underscore the necessity for continuous learning and adaptation among professionals.

Frequently Asked Questions

Q: What is powder coating?

A: Powder coating is a dry finishing process that involves applying a free-flowing, dry powder to a surface. Unlike traditional liquid paint, which is applied via an evaporating solvent, powder coating is typically applied electrostatically and then cured under heat to allow it to flow and form a "skin."

Q: Can powder coating on aluminum be repaired?

A: Yes, powder coating on aluminum can indeed be repaired. The process typically involves sanding the affected area, applying a new layer of powder, and curing it under controlled conditions. Recent innovations, like the development of more adaptable powders and advanced infrared curing techniques, have made repairs more efficient and less noticeable.

Q: How does weather affect powder-coated aluminum?

A: Powder-coated aluminum is highly resistant to various weather conditions, including UV radiation, moisture, and extreme temperatures. The effectiveness of this coating in protecting against environmental degradation is well-documented in studies that examine the long-term performance of powder-coated surfaces exposed to harsh climates. Regular maintenance and timely inspections can further extend the lifespan and preserve the aesthetic qualities of these coatings.

Q: Is powder coating on aluminum environmentally friendly?

A: Yes, powder coating is considered environmentally friendly. It emits no or very low VOCs and overspray can be recycled, reducing waste. The process also does not require harmful solvents.

Q: What are the benefits of powder coating on aluminum?

A: The benefits of powder coating on aluminum are:

• Durability: Powder coating creates a hard, long-lasting finish that is more resistant to chipping, scratching, and fading.

• Environmental Impact: Powder coating has lower environmental impact compared to traditional liquid paints as it contains no solvents and releases negligible amounts of volatile organic compounds (VOCs).

• Variety: Available in numerous colors and finishes, including gloss, matte, and textured.

• Corrosion Resistance: Provides superior protection against corrosion and environmental wear.

Q: What are the key steps involved in powder coating aluminum?

A: The powder coating process on aluminum typically includes:

• Surface preparation: Cleaning, etching, and applying conversion coatings.

• Primer application: Enhancing adhesion and durability.

• Powder application: Electrostatic spraying or fluidized bed dipping.

• Curing: Heating to melt and bond the powder coating.

• Cooling: Allowing the coated parts to cool naturally or using forced air cooling methods.

References:

[1] Sun Y, Ma T, Gong D, Yu M. Study on Organic Modification of Aluminum Powder Coating. In: Haeri H (ed.) Materials in Environmental Engineering: Proceedings of the 4th Annual International Conference on Materials Science and Environmental Engineering. Berlin, Boston: De Gruyter; 2017. p.49-58.

[2] IFS Coatings. A Guide to Applying Powder Coatings.

[3] Maldonado C, Diaz D, Ranallo J, Painter R, Dahir W, Hassouna D, et al. Evaluation of the effects of powder coating cure temperatures on the mechanical properties of aluminum alloy substrates. J Mater Eng Perform. 2009;18:70-8

[4] Pietschmann, J. (2024). Industrial Powder Coating: Basics, Methods, Practical Application. Springer Wiesbaden.

[5] Douma G, Turnhout J, Ong PH. A study of the electrostatic powder-coating process by charge and current measurements. Inst. of Physics Conf. Ser. no 27; 1975.

[6] Bîrcă A, Gherasim O, Grumezescu V, Grumezescu A. Introduction in thermoplastic and thermosetting polymers. In: Materials for Biomedical Engineering. 2019. p. 1-28.
