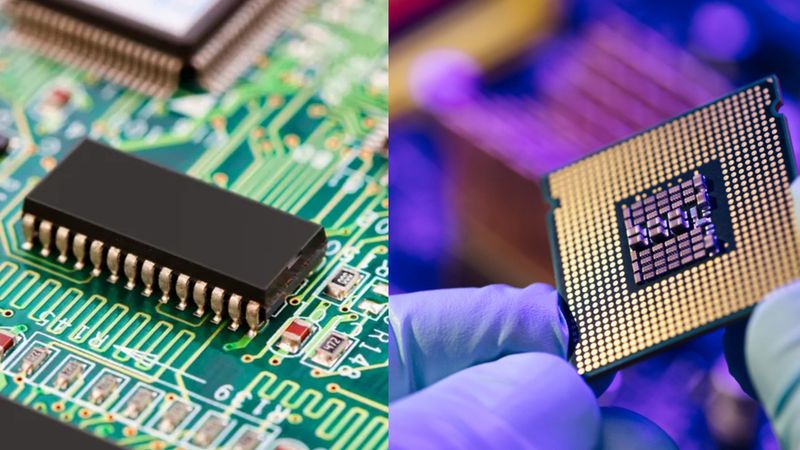

Microprocessor vs Integrated Circuit: Unveiling the Core of Modern Technology

Introduction

The miniaturization of electronics has revolutionized nearly every aspect of our lives. Integrated circuits (ICs) are essentially the building blocks of electronic circuits, containing multiple components like transistors, resistors, and capacitors in a single package. On the other hand, a microprocessor, often considered a specific type of IC, specializes in executing a series of instructions to perform complex computing tasks. Understanding the crucial distinction between a microprocessor vs integrated circuit is essential for appreciating the intricate workings of modern technology.

Microprocessors and integrated circuits (ICs) are the foundational pillars driving the functionality and innovation of countless electronic devices. From the smartphones in our pockets to the computers that power our businesses, these components are critical in shaping the digital world around us.

In exploring the microprocessor vs integrated circuit comparison further, this article will highlight the technical specifications, applications, and innovations driven by these components. This is essential for professionals and enthusiasts alike to fully grasp the intricacies of modern electronics and their development.

Understanding the Basics

What is a Microprocessor?

A microprocessor serves as the central processing unit (CPU) of a computer or other digital devices, effectively acting as the brain that executes instructions from software applications. It is a complex integrated circuit that performs arithmetic and logic operations necessary for computer processing.

Microprocessor with visible silicon core and cache chip, being inserted in socket

The basic architecture of a microprocessor includes several key components: the control unit, which directs the operation of the processor; the Arithmetic Logic Unit (ALU), responsible for carrying out arithmetic and logic operations; and registers, which are small storage locations that hold data, instructions, and addresses for quick access by the ALU.

Over the years, microprocessors have evolved significantly from their inception. Initially, microprocessors were designed with a single core, meaning they could execute one instruction at a time. [1] However, as technology advanced and the demand for faster processing speeds increased, multi-core designs were developed. These multi-core processors contain two or more independent cores, allowing them to perform multiple instructions simultaneously. Companies like AMD are leading players in the design and manufacturing of microprocessors. This evolution has been pivotal in enabling the complex, multitasking operations that modern computers and digital devices can perform today.

What is an Integrated Circuit?

An integrated circuit (IC), often referred to as a chip or microchip, is a set of electronic circuits on one small flat piece (or "chip") of semiconductor material, usually silicon. By embedding thousands or even millions of transistors, amplifiers, diodes, and capacitors onto a tiny chip, ICs have revolutionized the electronics industry. These components are interconnected on a single semiconductor wafer, forming a complete circuit. This wafer is then sliced into individual semiconductor chips housed in protective packages to become functional ICs.  The specific circuitry on an IC determines its function.

Integrated Circuit (IC) soldered on PCB

Memory chips store data,  digital circuits perform basic logic operations, and analog-to-digital converters translate signals between different formats.  ICs are the fundamental building blocks of printed circuit boards (PCBs), the lifeblood of modern electronics. They have enabled the miniaturization of devices while increasing their functionality and computing power.

ICs can be broadly categorized into three main types: analog, digital, and mixed-signal. [2] Analog ICs deal with continuously variable signals, making them essential for amplification and signal processing in devices such as radios and audio equipment. Digital ICs, on the other hand, work with binary data, powering the logic and memory functions in computers, smartphones, and a vast array of digital devices. Mixed-signal ICs combine analog and digital functions on a single chip, facilitating complex tasks such as digital-to-analog conversion and vice versa. These are crucial in modern telecommunications and digital signal processing.

The advent of integrated circuits has been pivotal in the miniaturization of electronic devices. Before ICs, electronic circuits were composed of discrete components that took up significantly more space and were less reliable. By integrating all these components into a compact chip, ICs have enabled the development of smaller, more portable, and more powerful electronic devices, laying the foundation for the modern electronics industry.

Recommended Reading: Microcontroller vs Microprocessor: A Comprehensive Guide to Their Differences and Applications

Diving Deeper: Key Differences

Functionality and Application

Microprocessors and integrated circuits, while often used together in electronic devices, serve distinct roles. Microprocessors contain intricate logic units, arithmetic units, and control units working in concert to handle a vast array of tasks. They are the driving force behind the processing power in PCs, laptops, servers, and microcontrollers in embedded systems.

Analog IC found in a radio frequency device

Integrated circuits, however, encompass a broader range of functionalities depending on their type. For instance, memory chips, which are a type of IC, are used to store data in electronic devices. Analog ICs are found in radio frequency (RF) devices and audio processors, which handle continuous signal processing. Digital ICs appear in electronic timers, switches, and registers, managing binary data.

In complex systems such as computers and smartphones, microprocessors and various types of ICs work in concert to perform a multitude of tasks. A smartphone, for example, contains a microprocessor to run the operating system and applications. At the same time, separate ICs handle memory storage, power management, and the modulation and demodulation of signals for communication. This collaboration between microprocessors and ICs allows for the high functionality and efficiency that modern electronic devices require.

Design and Manufacturing Process

Microprocessors are typically designed for general-purpose use, as they are created to perform a wide range of tasks across various devices. This necessitates a highly complex design process that involves sophisticated software tools for simulation and testing. Microprocessor architects not only define the functionality but also specify the instruction set architecture (ISA).  The ISA dictates the set of instructions the microprocessor can understand and execute.  Furthermore, microprocessor design involves crafting complex logic units, arithmetic units, and control units, ensuring seamless communication and processing of data.

Microprocessor undergoing soldering phase during its manufacture

Integrated circuits, on the other hand, can be designed for either general-purpose use, such as logic gates and memory chips, or for specific applications, like custom ICs for a particular device. Engineers utilize specialized software and hardware description languages (HDLs) to create a blueprint for the circuit's layout and functionality.  This blueprint details the placement and interconnection of various electronic components on the chip.  The design process for ICs can vary depending on the specific type and complexity.

When it comes to manufacturing, microprocessors require a highly advanced and precise fabrication process. They are typically made using silicon wafer technology, involving numerous steps such as photolithography, doping, etching, and layering to create intricate patterns of transistors and connections on the chip. [3] This process is not only complex but also costly, due to the precision and cleanliness required to produce reliable and efficient microprocessors.

Integrated circuits share a similar manufacturing process, especially when it comes to the use of silicon and the basic steps of fabrication. However, the complexity and cost can vary widely. Simple ICs, such as basic analog devices, can be cheaper and less complex to manufacture than microprocessors or highly specialized custom ICs. The materials used can also differ; while silicon is the most common substrate for microprocessors and ICs, applications might use other materials like gallium arsenide for specific ICs, depending on the required electrical properties.

Performance and Power Consumption

The performance capabilities of microprocessors and integrated circuits can vary significantly, primarily due to their differing roles in electronic devices. Microprocessors, designed to execute a series of instructions, are optimized for processing power and speed. They are the workhorses behind computing devices, where their ability to perform complex calculations and process data quickly is paramount. Advances in microprocessor technology, such as increased clock speeds, more efficient architectures, and the addition of multiple cores, have continually enhanced their performance.

Digital signal processor (DSP)

Integrated circuits, while also benefiting from technological advancements, are generally optimized for specific tasks rather than sheer processing power. For example, a digital signal processor (DSP), a type of IC, is optimized for high-speed manipulation of digital signals. In contrast, a power management IC is designed to efficiently distribute power within a device. The performance of an IC is, therefore, measured more by how well it performs its specific function and less by general processing speed.

When it comes to power consumption, both microprocessors and integrated circuits have seen significant improvements in energy efficiency. Microprocessors, which can be power-intensive due to their complex operations, have evolved to include features like dynamic frequency scaling, which allows them to adjust their power usage based on the workload. Similarly, integrated circuits are designed with power efficiency in mind, especially in portable devices with critical battery life. Techniques such as power gating and the use of low-power electronics ensure that ICs contribute to the overall energy efficiency of the devices they power.

The optimization of energy efficiency in both microprocessors and integrated circuits is crucial as electronic devices become more powerful and more ubiquitous. Reducing power consumption not only extends battery life in portable devices but also decreases heat production, improving device longevity and performance.

Recommended Reading: RISC-V vs ARM: A Comprehensive Comparison of Processor Architectures

The Evolution and Future Trends

Historical Milestones

The journey of microprocessors and integrated circuits (ICs) through history is marked by groundbreaking developments that have significantly shaped the landscape of technology. Jack S. Kilby made history by presenting the first functional IC to Texas Instruments management in 1958. [4] This was the first time electronic components were integrated into a single substrate. This innovation laid the groundwork for the miniaturization of electronic devices and paved the way for the development of the microprocessor.

In 1971, Intel introduced the 4004, the world's first commercially available microprocessor. [5] This 4-bit CPU marked the beginning of the microprocessor era, enabling the development of the personal computer and countless other digital devices. The 4004's introduction was a pivotal moment, demonstrating the potential of microprocessors to act as versatile computing engines.

Subsequent decades saw rapid advancements in both microprocessor and IC technologies. The 1980s and 1990s, in particular, were characterized by the exponential growth of microprocessor speed and power, following Moore's Law, which predicted that the number of transistors on a microchip would double approximately every two years. This period also saw the diversification of integrated circuits into various types, including microcontrollers, digital signal processors, and application-specific integrated circuits (ASICs), each tailored for specific applications.

Landmark products such as the Intel 8086, which laid the foundation for the x86 architecture i.e. ARM (Advanced RISC Machine) architectures still in use today. The introduction of multi-core processors in the early 2000s has continued to push the boundaries of what microprocessors can achieve. Similarly, the development of complex ICs for telecommunications, such as the Qualcomm Snapdragon series, has been instrumental in the advancement of mobile technology.

These historical milestones not only highlight the technological evolution of microprocessors and ICs but also underscore their profound impact on the development of modern electronics, computing, and communication devices.

Emerging Technologies

The landscape of microprocessor and integrated circuit (IC) technology is continually evolving, with recent advancements pushing the boundaries of computing power, efficiency, and miniaturization. One of the most notable developments is the advent of quantum computing chips. These chips leverage the principles of quantum mechanics to perform complex calculations at speeds unattainable by traditional microprocessors, offering promising applications in fields such as cryptography, drug discovery, and financial modeling.

Advanced Circuit Board with AI Acceleration Microchip

Another significant advancement is the rise of AI accelerators, specialized hardware designed to speed up AI applications, including machine learning and deep learning tasks. These accelerators, which can be standalone ICs or integrated into microprocessors, are optimized for the parallel processing capabilities required for AI computations, significantly improving the performance and efficiency of AI systems.

Looking towards the future, the trend is towards the integration of more complex systems on a chip (SoC). SoCs integrate all computer or other electronic system components into a single chip, including the microprocessor, memory, input/output ports, and secondary storage. This integration offers numerous benefits, including smaller physical size, less power consumption, and lower manufacturing costs, making it particularly appealing for mobile and embedded applications.

Another promising direction is the move towards nanotechnology in microprocessor and IC fabrication. Nanotechnology involves manipulating materials on an atomic or molecular scale. Its application in microprocessor and IC manufacturing promises to further reduce the size of electronic components while simultaneously increasing performance and reducing power consumption. This could lead to the development of even more powerful, energy-efficient, and compact devices, opening new possibilities for innovation in electronics and computing.

These emerging technologies and future trends underscore the dynamic nature of microprocessor and IC development, highlighting the ongoing quest for more powerful, efficient, and versatile computing solutions.

Recommended Reading: System in Package: A Comprehensive Guide to SiP Technology

Practical Applications in Engineering

In Computing Devices

Microprocessors and integrated circuits (ICs) are fundamental to the operation and advancement of a wide range of computing devices, including personal computers, servers, and mobile devices. In personal computers, microprocessors serve as the central processing unit (CPU), executing instructions from software applications and performing calculations. They work in conjunction with various ICs, such as memory chips (RAM) and graphics processing units (GPUs), to deliver comprehensive computing capabilities.

In the realm of servers, microprocessors are key to handling complex operations and supporting the multitasking of numerous processes simultaneously. Servers also utilize specialized ICs for network connectivity and data storage, ensuring efficient data retrieval and communication.

Electronic circuit board with microprocessor and other electronic components

Mobile devices, including cell-phones and tablets, benefit significantly from the miniaturization and integration capabilities of microprocessors and ICs. These devices rely on system-on-chip (SoC) designs, where the microprocessor and other essential components, such as the modem, GPU, and sensors, are integrated into a single IC. This integration allows for compact designs without compromising performance, enabling the sleek and lightweight devices consumers have come to expect.

The impact of microprocessors and ICs on computing devices extends beyond just performance. Energy efficiency is critical, especially in mobile devices where battery life is a key concern. Advances in microprocessor design and IC technology have led to more energy-efficient architectures, reducing power consumption and heat generation. This extends battery life and contributes to the overall sustainability of technology.

Furthermore, the continuous advancements in microprocessor and IC technology have facilitated device miniaturization, allowing for the development of smaller, more portable devices without sacrificing functionality. This trend towards miniaturization has transformed the computing landscape, making technology more accessible and convenient for users worldwide.

In Robotics and Automation

Microprocessors and integrated circuits (ICs) play a pivotal role in robotics and automation, serving as the core components that enable the intelligence and functionality of robotic systems. Robotics primarily use microprocessors to process inputs from various sensors and execute control algorithms that drive robotic actions. They interpret data such as distance measurements, visual inputs, and tactile feedback to make real-time decisions, ensuring the robot can interact with its environment effectively.

Integrated circuits are equally important in robotics, particularly for sensor integration and signal processing. ICs are used to manage the multitude of sensors in modern robots, from gyroscopes and accelerometers to proximity sensors and cameras. These sensors provide the necessary data that microprocessors use to understand the robot's surroundings and status.

Robotic machine vision system

Microprocessor and IC technology advancements have been instrumental in pushing the boundaries of what is possible in automation and artificial intelligence (AI). For example, the use of SoCs in robotics has allowed for more compact and integrated control systems, which are essential for smaller, more agile robots. Additionally, specialized ICs, such as those designed for machine vision, have enabled robots to interpret visual data better, making them more autonomous and capable of performing complex tasks.

In AI, microprocessors and ICs have facilitated the development of advanced machine-learning models by providing the necessary computational power. AI accelerators, a type of IC, are specifically designed to optimize the processing of AI algorithms, making it possible for robots to learn from their environment and improve their performance over time.

These components have been key enablers in the evolution of robotics and automation, allowing for more sophisticated, efficient, and intelligent systems that can adapt to various industrial, commercial, and domestic applications.

Recommended Reading: Understanding AMR Robots: A Comprehensive Guide

Challenges and Ethical Considerations

Manufacturing and Environmental Impact

The production and disposal of microprocessors and integrated circuits (ICs) pose significant environmental challenges. The manufacturing process for these components is resource-intensive, requiring substantial amounts of water, energy, and raw materials, including precious metals and rare earth elements. Additionally, the production process generates hazardous waste, including chemicals and solvents that can harm the environment if not properly managed.

The disposal of electronic devices, known as electronic waste or e-waste, further adds to environmental concerns. Microprocessors and ICs contain toxic substances such as lead, mercury, and cadmium, which can leach into the soil and water, posing health risks to humans and wildlife. [6] The rapid pace of technological advancement and the consequent shortening of device lifespans have led to increasing volumes of e-waste, making its management a critical environmental challenge.

The electronics industry has been working towards more sustainable manufacturing practices in response to these issues. Initiatives include reducing the use of hazardous materials, improving energy efficiency in production processes, and increasing the recyclability of electronic components. Some companies have also adopted closed-loop recycling systems, where materials from discarded devices are recovered and reused to produce new ones, thereby reducing the demand for raw materials and minimizing waste.

Furthermore, there is a growing emphasis on designing products for longevity and repairability, aiming to extend the useful life of electronic devices and reduce the generation of e-waste. These efforts are supported by regulations in some regions, which mandate the responsible disposal and recycling of e-waste and encourage the development of greener technologies.

Addressing the environmental impact of microprocessor and IC production and disposal is a complex challenge that requires concerted efforts from manufacturers, consumers, and policymakers. The industry can mitigate its environmental footprint and contribute to a more sustainable future through innovation and adherence to sustainable practices.

Security and Privacy

The security vulnerabilities inherent in microprocessors and integrated circuits (ICs) pose significant risks to data privacy and system integrity. These vulnerabilities can arise from various sources, including electronic design flaws, manufacturing defects, and the potential for malicious hardware modifications during the production process. One notable example is the discovery of hardware-based vulnerabilities such as Spectre and Meltdown, which exploit critical vulnerabilities in modern microprocessors to allow attackers to steal data processed on the computer. [7]

These security flaws can have far-reaching implications for data privacy, as they can potentially allow unauthorized access to sensitive information, including personal data, passwords, and encryption keys. The risks are particularly acute in environments where data security is paramount, such as financial services, healthcare, and government systems.

To mitigate these risks, the industry has been taking proactive measures. These include the development of more secure hardware designs that are resistant to tampering and exploitation. There is a need to implement robust security protocols at the software level to protect against vulnerabilities that cannot be entirely eliminated at the hardware level. Manufacturers are also adopting secure manufacturing processes to prevent tampering and ensure the integrity of microprocessors and ICs throughout the supply chain.

In addition to technical measures, there is also a growing emphasis on transparency and responsible disclosure. Companies are increasingly working with security researchers to identify and address vulnerabilities before malicious actors can exploit them. When vulnerabilities are discovered, prompt and transparent communication with users and the implementation of software patches or hardware fixes are crucial for maintaining trust and ensuring the security of devices.

Overall, addressing the security vulnerabilities of microprocessors and ICs is an ongoing challenge that requires a multifaceted approach, combining advanced technology, industry collaboration, and stringent security practices to protect data privacy and maintain the integrity of computing systems.

Recommended Reading: Integrated Circuit Lifecycles and Impact on Security

Conclusion

Microprocessors, often described as the brains of computing devices, execute instructions and process data, driving the performance of computers, servers, and an array of smart devices. Integrated circuits, encompassing a broader category, include various types of chips designed for specific functions, from memory storage to power management, and are integral to the miniaturization and functionality of electronic devices.

As we look to the future, the importance of microprocessors and ICs in driving technological innovation remains undiminished. Their continued development will be critical in realizing the next generation of technological breakthroughs, from quantum computing to AI and beyond. The synergy between microprocessors and ICs will undoubtedly continue to be a cornerstone of engineering progress, shaping the future of technology and its impact on society.

FAQs

Q. What is the difference between a microprocessor and a microcontroller?

A. A microprocessor is a CPU that executes instructions for software applications, typically found in personal computers and servers. On the other hand, a microcontroller is a compact integrated circuit design that includes a microprocessor along with memory and input/output peripherals on a single chip, designed for controlling the operations of embedded systems.

Q. What role do ICs play in future technology?

A. ICs are fundamental to the advancement of future technology, enabling the development of more powerful, efficient, and compact devices. They are crucial in emerging fields such as IoT, where they provide the processing power and connectivity for smart devices, and in sustainable energy solutions, where they manage power distribution and efficiency.

Q. How do I choose between a microprocessor and an IC for my project?

A. The choice between a microprocessor and an IC depends on the specific needs of your project. If you require general-purpose processing power and the ability to run complex software, a microprocessor is likely the right choice. If your project involves specific functions like signal processing, power management, or embedded control, then an IC designed for that particular function would be more appropriate. Consider factors such as performance requirements, power consumption, size constraints, and cost when making your decision.

References

[1] SJSU. The Birth, Evolution and Future of Microprocessor [Cited 2024 March 18] Available at: Link

[2] Ovaga. Different Types of IC [Integrated Circuit] [Cited 2024 March 18] Available at: Link

[3] Wevolver. The Ultimate Guide to Wafer Dicing: Techniques, Challenges, and Innovations [Cited 2024 March 18] Available at: Link

[4] ETHW. Milestones: First Semiconductor Integrated Circuit (IC), 1958 [Cited 2024 March 18] Available at: Link

[5] Wired. The Secret History of the First Microprocessor, the F-14, and Me [Cited 2024 March 18] Available at: Link

[6] ResearchGate. The Impact of Electronic Waste Disposal and Possible Microbial and Plant Control [Cited 2024 March 18] Available at: Link

[7] TechRepublic. Spectre and Meltdown explained: A comprehensive guide for professionals [Cited 2024 March 18] Available at: Link
