Types of Industrial Control Systems: Examples and Applications

Introduction

Industrial control systems (ICS) form the backbone of modern industrial operations, ensuring efficiency, precision, and safety across various sectors. These systems are integral to monitoring and managing processes in manufacturing, energy, transportation, and critical infrastructure. Understanding the types of industrial control systems is essential for engineers, operators, and decision-makers to implement the right solutions for specific applications.

From PLC and DCS to SCADA, each ICS type enables precision, scalability, and adaptability, thereby enhancing operational efficiencies across global industries. Exploring the types of industrial control systems reveals their role in automating complex tasks, reducing human intervention, and enhancing reliability. This article delves into the types of industrial control systems, providing practical examples and insights into their functionalities. Whether you're optimizing a production line or securing power grids, selecting the appropriate types of industrial control systems is pivotal to achieving industrial excellence.

Core Varieties of Control Systems

Feedback Loops and Controllers

Feedback loops are fundamental components in industrial control systems, central to adjusting operations based on real-time sensor data. These systems operate on a basic cycle of:

• Measurement, where field devices like sensors collect data from the environment

• Comparison, where the collected data is analyzed against a predefined setpoint

• Correction, where control devices such as actuators implement the necessary adjustments

This iterative process ensures that the system maintains stability and achieves the desired outcomes.

PID Loop Function Diagram

This mechanism is exemplified by the Proportional Integral Derivative (PID) controller, widely used in industrial process control systems. [1] In applications like water treatment facilities or wastewater systems, PID controllers regulate temperature, pressure, or flow rates with exceptional precision. For instance, maintaining a specific thermal setpoint in a heat exchanger demands continuous feedback from temperature sensors and real-time adjustment of the heating elements.

Programmable Logic Controller (PLC) is another type, a versatile tool in industrial automation. PLCs execute complex algorithms and sequence control for manufacturing processes, ensuring optimal performance and error detection in production lines. They are vital for handling repetitive tasks in automotive assembly, where precise coordination between machines and tools is essential. Sequential controllers, an extension of feedback mechanisms, are also integral to automated systems, managing interdependent operations across multifaceted production cycles.

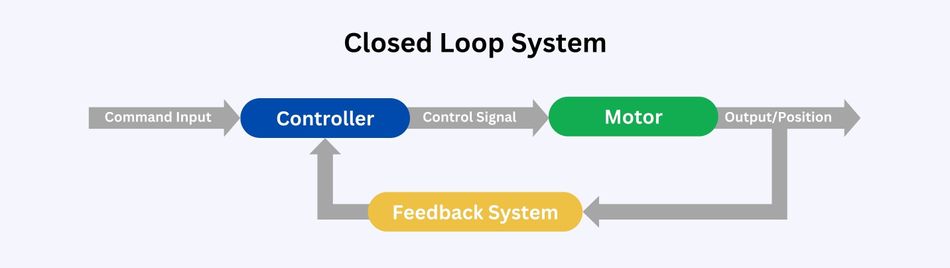

Closed Loop System Diagram

Additionally, control systems can be as simple as basic On/Off controllers or as complex as sequential controllers that handle multifaceted operations in automated lines. Historically, the evolution from manual to automated and closed-loop control systems in industries like manufacturing and HVAC. This has significantly boosted efficiency and accuracy, addressing increasing demands for high-quality production and energy management.

Today, these controllers incorporate IoT connectivity, enabling remote terminal units (RTUs) and local controllers to synchronize with centralized systems for data-driven decision-making.

Classification by Functionality and Protocols

Industrial control systems can be categorized into several distinct types based on their functionality and the specific control environments they are designed for.

Distributed Control Systems (DCS) Architecture

Distributed Control Systems (DCS): Designed for large-scale industrial process control systems, DCS is widely used in sectors like oil refining, petrochemicals, and power generation. These systems often employ standardized protocols like IEC 61850, enhancing connectivity and ensuring seamless integration across subsystems. [2] This facilitates robust communication and system interoperability crucial in substation automation. For example, in refineries, DCS manages the complexity of temperature, pressure, and flow to optimize production and maintain safety standards.

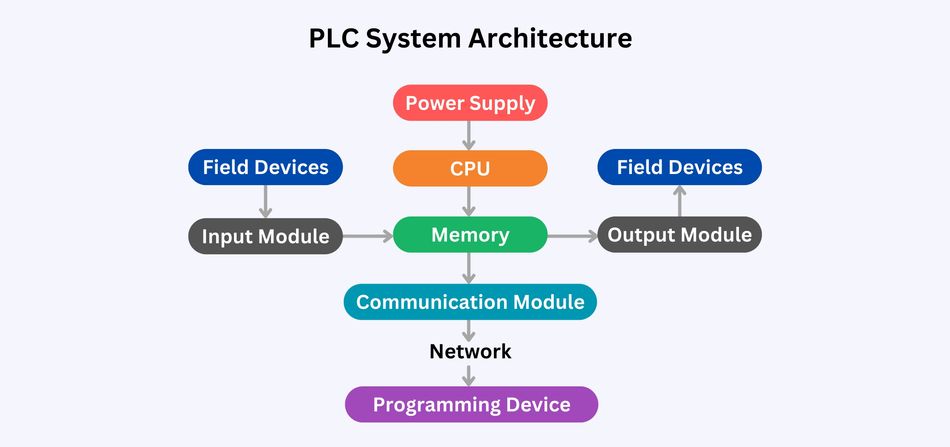

Programmable Logic Controllers (PLC) Architecture

Programmable Logic Controllers (PLC): Known for their adaptability, PLCs serve in diverse applications, from discrete manufacturing to infrastructure automation. PLCs often employ protocols such as EtherNet/IP and PROFIBUS, supporting the high-speed automation tasks and the precise control necessary in these varied settings. For example, in automotive assembly lines, PLCs coordinate robotics, conveyor belts, and inspection systems to ensure precision and speed.

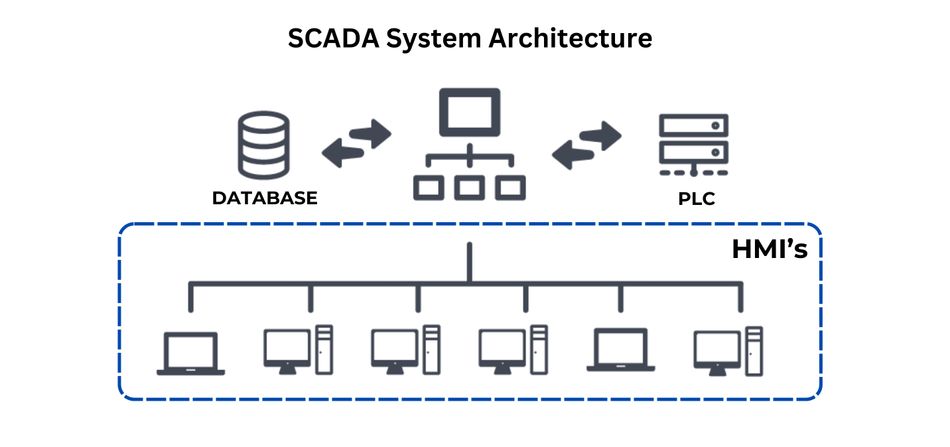

Supervisory Control and Data Acquisition (SCADA) systems Architecture

Supervisory Control and Data Acquisition (SCADA) systems: SCADA systems are essential in applications requiring broad real-time data acquisition—such as in utility grids or nationwide railway systems. SCADA systems utilize protocols like MODBUS, DNP3 and MQTT, known for their reliable real-time data transfer capabilities, which are vital for operations spanning extensive geographical networks. For instance, in water treatment facilities, SCADA monitors and regulates pump stations and chemical dosing to maintain water quality and distribution efficiency.

The evolution of these systems and their protocols from simple mechanical relays to networked controllers equipped with microprocessors reflects significant technological advancements. By understanding these classifications and their protocols, engineers can better design systems that optimize operational efficiency and resilience in specific industrial environments.

Recommended Reading: PID Controller & Loops: A Comprehensive Guide to Understanding and Implementation

The Evolution of Industrial Control Systems

Smart Connectivity and Automation

The integration of the Internet of Things (IoT) within industrial control systems marks a transformative era in manufacturing and processing. IoT-enabled devices collect and transmit real-time data from sensors, significantly enhancing system responsiveness to operational changes. For instance, in automotive manufacturing, IoT facilitates detailed monitoring of production processes, enabling the precise synchronization of assembly line operations, further resulting in improved production efficiency.

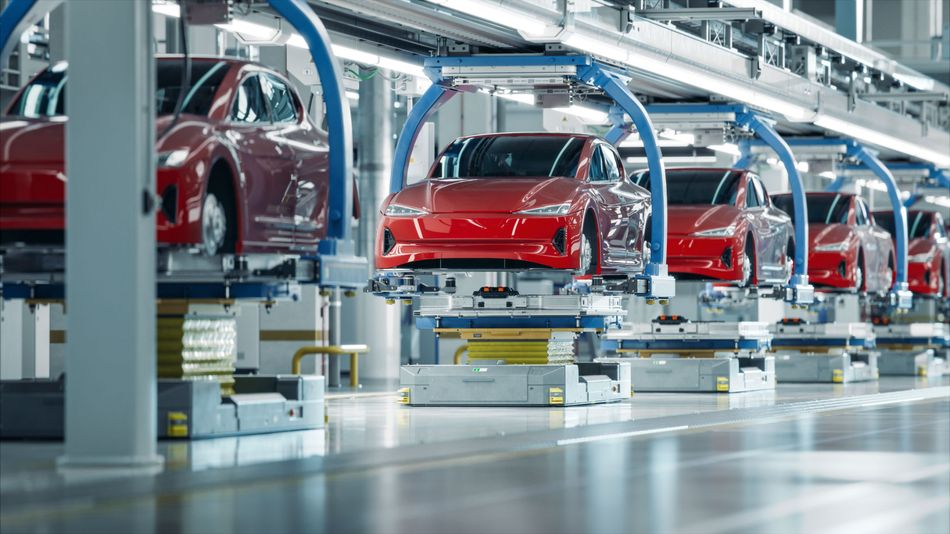

EV Production Line on Advanced Automated Smart Factory

Cloud-based automation systems further extend this evolution by offering scalable solutions that dynamically adapt to shifting production demands. [3] These platforms support instantaneous adjustments to production parameters, reducing downtime and manual intervention. For example, in sectors like pharmaceuticals, where production conditions are critical, cloud solutions ensure consistent oversight and immediate adjustments.

The strategic incorporation of artificial intelligence (AI) and machine learning (ML) within these systems transforms raw data into actionable insights. AI-powered algorithms analyze variables such as temperature fluctuations, vibration patterns, and output consistency, enabling predictive maintenance and operational optimization. For instance, in the energy sector, AI helps optimize grid distributions by predicting peak usage times, minimizing energy wastage, and reducing operational costs. This is achieved through the integration of intelligent electronic devices (IEDs) and advanced instrumentation that monitor and regulate systems with unparalleled precision.

By tracing the lineage of automation from basic, manually set controls to intelligent, interconnected systems today, we witness significant strides made towards achieving unparalleled efficiency and reliability. This narrative not only reflects tech evolution but also underscores the role of IoT, AI, and cloud computing in shaping the future of industrial applications.

Software and Security Measures

The increasing reliance on internet-based technology in industrial control systems has amplified the need for robust cybersecurity measures within system software. The interconnected nature of these systems makes them vulnerable to a range of cyber threats, including data breaches, unauthorized access, and system disruptions.

To address these vulnerabilities, modern ICS software integrates advanced encryption protocols, real-time anomaly detection mechanisms, and smart access control strategies. These features are essential for safeguarding communication across networked devices and protecting against unauthorized interference.

Industrial PLC-based Automation System

Recent advancements in ICS software include the deployment of patches and updates designed to enhance system security. These updates focus on strengthening firewall configurations, improving virtual private network (VPN) protocols for secure remote access, and implementing multi-factor authentication for better user verification.

In addition to patch management, the adoption of industrial automation platforms with built-in security measures is transforming how industries approach threat mitigation. Features such as feedback control loops, which monitor for irregular system behaviour, and automated response mechanisms help prevent potential breaches before they escalate. Furthermore, robust control loop designs, in conjunction with setpoint adjustments, ensure that malicious inputs do not destabilize system operations.

The integration of cybersecurity tools with operational technology highlights the shift from reactive to proactive security strategies. For example, the use of remote terminal units (RTUs) with embedded security protocols and HMI (Human-Machine Interfaces) are becoming standard practices across industries. These measures are not just optional safeguards but critical components in maintaining the operational integrity of modern ICS environments.

Recommended Reading: HMI Technologies: The Ultimate Guide to Human-Machine Interface Innovations

Real-World Applications of Control Systems

Industrial Automation

Industrial automation systems, particularly Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS) have revolutionized operations in numerous sectors. They are all active in replacing labour-intensive processes with high-speed, precision-driven automation. These systems are pivotal in optimizing production lines, reducing errors, and enhancing operational safety.

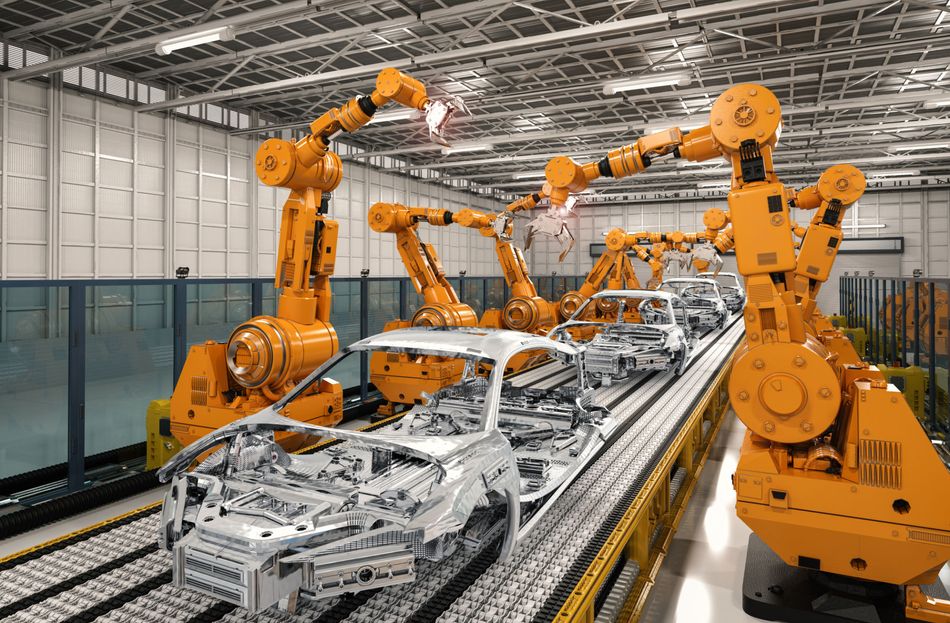

Robotic Assembly Line in Automotive Manufacturing

PLCs, known for their robust control, timing accuracy, and flexibility, are indispensable in sectors like automotive manufacturing. Here, they orchestrate the intricate coordination of robotic arms, conveyor systems, and quality inspection units. This integration has not only doubled assembly speeds but also reduced error rates by 40% compared to legacy systems reliant on manual or semi-automated processes. The real-time adaptability of PLCs enables seamless adjustments during production, improving overall throughput and product consistency.

DCS systems play a critical role in the pharmaceutical industry, where precision and environmental control are imperative. This technology manages vital parameters like temperature and humidity during the drug formulation process. DCS control is essential for maintaining the stability and efficacy of medications. This implementation has improved regulatory compliance by 50% and increased production output by 30%, showcasing its capacity to handle stringent operational demands.

These systems also utilize advanced human-machine interfaces (HMIs) to provide operators with intuitive control and monitoring capabilities. HMIs bridge the gap between operators and machines, enabling detailed insights into system performance, real-time alerts, and actionable data. [4] Furthermore, both PLCs and DCS integrate seamlessly with IoT devices, enhancing connectivity and enabling predictive maintenance. This is done by collecting data from field devices and analyzing it using AI algorithms.

These advancements underscore the transformative impact of industrial automation, highlighting a significant leap from traditional manually intensive methods to highly efficient, automated environments. The integration of technologies like PLCs and DCS not only streamlines complex processes but also escalates productivity and safety, marking a new era in industrial operations.

Integration Challenges and Technological Overcoming

Integrating advanced control systems within industrial settings presents significant challenges such as system compatibility issues, substantial cost considerations, and operational complexity. These hurdles typically arise from the need to retrofit sophisticated technology into established infrastructures that might not initially accommodate such upgrades. This is further coupled with the considerable financial investments required for top-tier systems. To overcome these challenges, industries adopt various strategies:

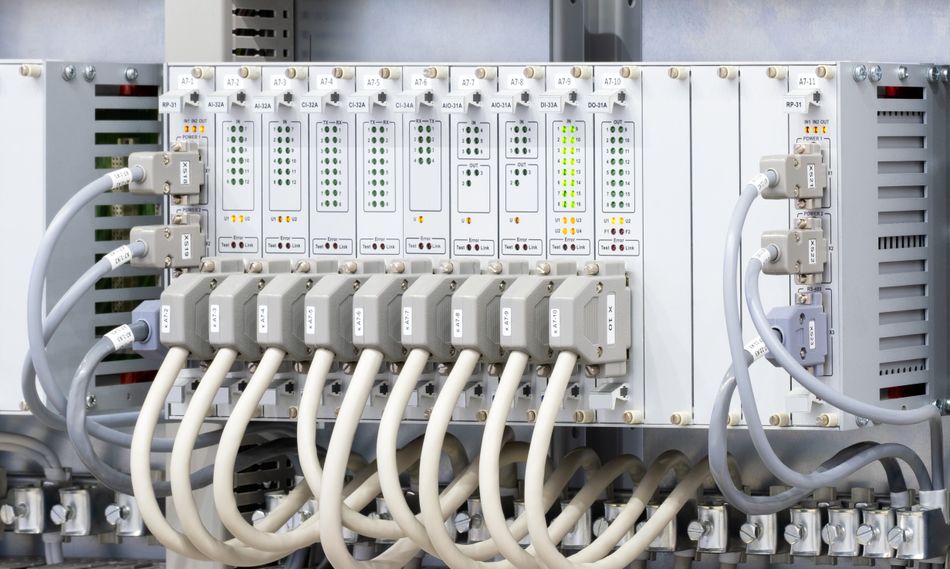

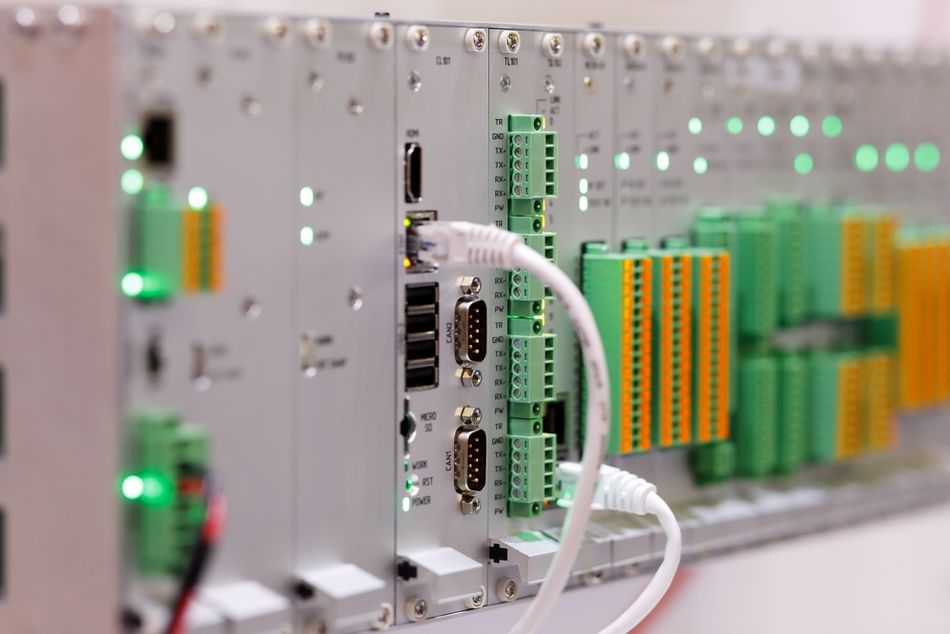

Industrial PLC-based Modular Controller System in a Rack

Modular integration strategies are particularly effective, enabling gradual technological upgrades with minimal disruptions. An example of this can be seen in a manufacturing firm that successfully phased advanced robotics into its assembly line. This gradual implementation minimized downtime and ensured compatibility with pre-existing control software and central control systems.

Cost challenges are strategically managed through detailed long-term planning and ROI analyses that help justify the expansive outlays. Their implementation, although costly initially usually leads to a 50% increase in production capacity and a 30% reduction in labour costs over five years.

Furthermore, operational complexity is mitigated by developing comprehensive training programs that prepare staff to manage and maximize the new systems effectively. For example, a pharmaceutical company introduced a specialized training program for their DCS, which not only reduced the learning curve but also improved overall safety and compliance rates. This program incorporated hands-on modules covering RTUs, HMI interfaces, and feedback control mechanisms, which reduced the learning curve and enhanced operational safety.

Additionally, many industries are leveraging IoT and cloud-based platforms to simplify system management. These platforms provide centralized access to critical data, enabling operators to remotely monitor and control systems from field sites or remote access points, thereby reducing operational complexity.

Thoughtful implementation of advanced technologies can transform potential challenges into opportunities for growth and efficiency, substantially benefiting industrial sectors.

Recommended Reading: Industrial Process Automation: The Future of Manufacturing

Critical Analysis: Addressing Operational Limits

Potential Risks and Failures

Industrial control systems, crucial for enhancing operational efficiency and safety, can be susceptible to various risks that undermine their effectiveness.

System failures, for example, can lead to significant production stoppages or safety hazards. This has occurred in a chemical processing plant, where a system glitch resulted in an unexpected shutdown, leading to millions in losses and heightened safety risks.

Environmental factors like extreme temperatures or excessive moisture can also critically impair system components. In regions with high humidity, for example, corrosion of electronic circuitry can create failures that disrupt normal operations.

Human error remains a prevalent threat, often due to misconfigurations or maintenance oversights. For instance, incorrect data entry by an operator at a power station once led to a cascade of errors, culminating in a widespread power outage. This incident underlined the critical need for stringent training protocols and the integration of fail-safes that can alert operators to potential errors before they escalate.

To address these risks, industries are adopting advanced diagnostic technologies and following strict international regulations:

• Predictive Maintenance and Diagnostics: Technologies such as AI-driven feedback control systems and IoT-enabled instrumentation allow for real-time monitoring and anomaly detection. These systems predict failures by analyzing sensor data, such as temperature fluctuations or vibration patterns, enabling preemptive action.

• Adherence to Standards: Standards like ISO 55000 and IEC 61508 provide a framework for managing the lifecycle of assets and ensuring the functional safety of systems. [5]

Through these measures, industries strive to strengthen the reliability and security of control systems. This safeguards their operations against the inherent risks of complex technological environments.

Regulatory and Maintenance Considerations

Compliance with international standards such as ISO 55000 and IEC 61508 is crucial for the optimal functioning of industrial control systems. This mandates regular maintenance and compliance with rigorous safety protocols.

• ISO 55000 and Asset Management: ISO 55000 focuses on effective lifecycle management of industrial assets, enabling organizations to optimize productivity and extend the life of their equipment. Recently, a petrochemical plant implemented ISO 55000 guidelines, leading to a 20% reduction in unplanned downtimes and a 15% increase in asset utilization.

• IEC 61508 and Functional Safety: IEC 61508 addresses the safety of electrical and electronic systems, emphasizing risk reduction. A manufacturing plant upgrading its control systems to meet these standards reported enhanced operational safety, reduced workplace incidents, and improved reliability in handling hazardous processes.

• Routine Maintenance and Upgrades: Regular updates to control software and hardware are essential for maintaining compliance and incorporating the latest technological advancements. For example, integrating IoT capabilities into existing SCADA systems not only enhances real-time monitoring but also reduces manual intervention. Upgrading firewalls and implementing real-time anomaly detection further strengthen system resilience against phishing threats.

• ROI Analyses: Conducting detailed ROI analyses and phased implementations can help organizations strategically allocate resources. For instance, modular upgrades to automation systems and control loops minimize disruptions and ensure steady improvements in efficiency and safety.

By addressing potential risks and embracing rigorous regulatory and maintenance frameworks, industries can enhance the reliability, safety, and sustainability of their operations. This ensures resilience in the face of evolving technological and environmental challenges.

Recommended Reading: Difference between PLC and DCS: Decoding the Automation Divide

Conclusion

Industrial control systems have evolved significantly, transitioning from fundamental mechanical components to complex networks essential to the operational integrity of modern industries. This evolution reflects both technological advancements and the escalating demands of precision, efficiency, and sustainability in industrial operations. It is crucial for industry professionals to stay informed about the latest technological developments and system upgrades.

Looking ahead, the integration of artificial intelligence and machine learning promises to further revolutionize these systems, making them more adaptive and intelligent. Staying ahead in this rapidly evolving field is not just beneficial—it is essential for the sustainability and growth of modern industries.

Frequently Asked Questions

Q. What are the primary differences between DCS, SCADA, and PLC?

A. DCS is typically employed in complex, process-oriented industries like chemical manufacturing, where precise control over various plant sections is required from a central location. SCADA systems are crucial in sectors like utility management, where they monitor remote sites and collect data for operational decisions. PLCs are commonly found in both discrete and continuous manufacturing environments due to their robustness and reliability, controlling machinery on production lines efficiently.

Q. How do environmental factors influence the choice and design of industrial control systems?

A. Environmental conditions play a critical role in selecting and designing control systems. For example, in offshore oil rigs, control systems must withstand saltwater corrosion, requiring specialized protective measures and materials. Similarly, in semiconductor manufacturing, systems need to operate in ultra-clean environments, influencing the design to minimize particulate contamination.

Q. What are the best practices for maintaining cyber-security in complex control systems?

A. Keeping complex control systems secure involves several layers of defence. The use of advanced intrusion detection systems, timely application of security patches, and comprehensive training for operational staff helped counter the attack. Regular risk assessments, coupled with a disciplined approach to security protocol updates and employee cybersecurity awareness training, remain cornerstone practices in safeguarding these critical systems.
