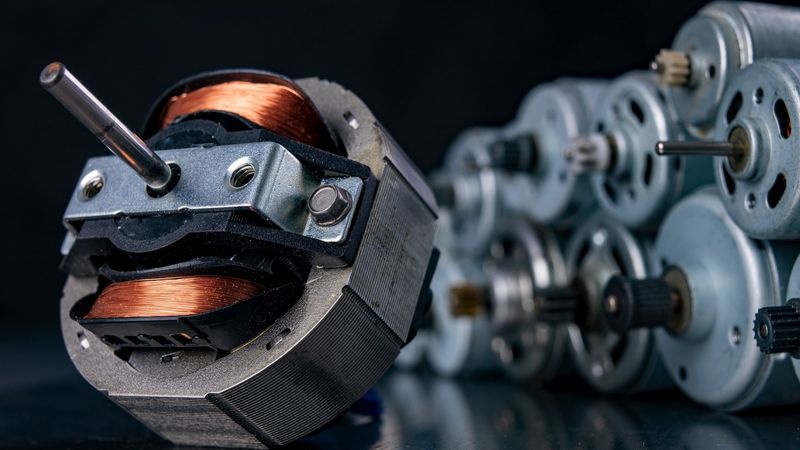

AC vs DC Motor: Unpacking Their Engineering Applications and Innovations
Explore the distinct functionalities, advantages, and industries driving the innovations of AC and DC motors. Delve into the technologies that shape our modern world, focusing on recent advancements and real-world applications. Understand their role in future engineering challenges and opportunities.
Introduction
Alternating Current (AC) and Direct Current (DC) motors are one of the pillars of modern engineering, powering the entirety of dynamic mechanical systems. From their inception in the early days of electrical engineering, these motors have powered countless innovations, adapting and evolving to meet the changing demands of technology. But when it comes to understanding the difference between AC vs DC motor, there are several technical intricacies that engineers must understand.
AC motors are characterized by their ability to handle high voltages and efficiency, and dominate industrial applications where robustness and longevity are paramount.
DC motors, with their exceptional speed control, are preferred in precision applications such as in automotive electric systems and robotics.
In AC vs DC motor comparison, it’s critical to understand the fundamental principles that drive these motors, for instance, the role of electromagnetic fields in converting electrical energy into mechanical motion—is crucial. This foundation clarifies why certain types of motors excel in specific scenarios. For instance, the alternating nature of the current in AC motors makes them ideal for applications in power generation and large machinery, where power and durability are required, while the direct nature of DC motors offers superior precision and efficiency in speed-sensitive applications.
The primary aim of this article is to delve deeply into the comparative analysis of AC vs DC motors, illuminating their distinct characteristics, advancements, and technological applications
Suggested Reading: What is an Actuator? Types, Principles, and Applications
Core Principles Behind Motor Technology
Motors, whether AC or DC work on a basic engineering principle of electromagnetic induction. When a rectangular electric coil is placed in a magnetic field and current passes through it, a force causes the coil to rotate continuously.
It follows Ampere’s Law, according to which, when current flows in a conductor, it induces a magnetic field which can interact with other magnetic fields to produce force that actually drives the rotational movement. They are essentially a generator running backward, as current is used to produce the mechanical energy.
where
B·dl represents the line integral of the magnetic field B in a closed loop.
I is the current in the loop
μ₀ is the magnetic constant, which has a value of approximately 410-7N/A2 in a vacuum.
The Mechanics of AC Motors
Alternating Current (AC) motors have been pivotal in engineering since their development in the late 19th century. In the 1880s, the first designs of AC motors were introduced in the form of synchronous motors followed by induction motors. AC motors were originally designed to address the limitations of Direct Current (DC) motors, and have evolved significantly thanks to the advancements in electromagnetic theory and materials science.
At the core of an AC motor is the stator, an outer stationary shell that houses wire coils. When alternating current flows through these coils, it generates a rotating magnetic field, a phenomenon first observed by Nikola Tesla. This rotating magnetic field interacts dynamically with the rotor, a central shaft embedded with conductors.
As the magnetic field rotates, it induces a secondary current in the rotor, causing it to spin and generate mechanical power. The principle of electromagnetic induction, central to this process, was a groundbreaking discovery by Michael Faraday, which has since been optimized for better efficiency and control in modern AC motors.
Fig 1: Cross Section of an AC motor, showing the rotor, coil and inside parts
AC Motor Types
There are two basic types of AC motors:
Synchronous Motors - The rotor speed is tied to the AC voltage frequency. These motors don’t use brushes and can operate with a permanent magnet inside. These are typically used in household fans, and smaller applications.
Induction Motors - The stator drive current induces a magnetic field which induces a field in the rotor wires. Unlike synchronous motors which use a permanent magnet, rotor wires are used in induction motors. Hence, they are also referred to as Asynchronous motors. The interaction of rotor and stator fields causes mechanical rotation. These motors are further divided into two types, i.e. Single-Phase and Three-Phase induction motors.
Synchronous Rotor Speed
The synchronous speed of the rotor is perhaps the most critical element in determining the type and size of an AC motor. It’s critical for speed-sensitive applications, and depends on the number of poles and input frequency. The formula is:
Where;
N = rotor speed (rpm)
f = AC power supply frequency
P = no. of poles.
The design of a Variable Frequency Drive (VFD) relies heavily on the above formula, as the motor speed is directly proportional to the input power frequency.
The Dynamics of DC Motors
Direct Current (DC) motors are critical for precise speed control applications. These motors were introduced during the early experiments with electricity. With technological advancements, DC motors have become a pivotal part of various industrial setups and modern-day robotics applications.
Recommended Reading: DC Motor & DC Gear Motor Basics
DC motors operate on the principles of direct current electricity, with commutation at their core—a mechanism essential for reversing the direction of current flow within the motor, thereby ensuring continuous rotation. The direction of force of rotation is determined by Fleming’s left hand rule, and the magnitude is given by:
where
B = Magnetic Flux
I = current in the coil
l = length of the coil
'Theta' is the angle between magnetic field and current
Fig 2: Basic design of a DC motor
What’s Commutation in DC Motors?
Commutation in DC motors involves a commutator and brushes which interact to reverse current and adjust the motor’s magnetic fields dynamically. This function is critical for converting electrical energy into mechanical motion efficiently. The switching action of the commutator is finely timed with the rotor's position to optimize the motor's torque output and rotational speed, a feature that has been refined over the years through advancements in materials and electronic controls.
The mathematical model of a DC motor illustrates how torque (T) and speed (ω) are influenced by electrical input and mechanical design:
where
Kt = torque constant
I = current
V = applied voltage
Ke = electromotive force constant.
These equations quantify motor performance providing a guide for optimising motor designs for specific applications, from robotics to automotive systems.
DC Motor Types
Brushed DC Motors - These motors have brushes that make physical contact with the commutator, which is responsible for switching the current direction in the motor windings. They are simple and inexpensive but require maintenance due to brush wear.
Brushless DC Motors (BLDC) - Unlike brushed DC motors, BLDC motors use electronic commutation instead of brushes. They offer better efficiency, reliability, and longevity but are typically more complex and expensive. While there are many types of brushless DC motors, the following are most commonly used:
Stepper Motors - precise motors that move in discrete steps, ideal for applications requiring accurate positioning, such as 3D printers and CNC machines.
Fig 3: Stepper motors installed in a CNC machine
- Servo Motors - Servo motors are versatile motors known for their ability to precisely control position, velocity, and acceleration, widely used in robotics, industrial automation, and remote-controlled vehicles. While they aren’t strictly DC motors, most of their applications are powered by DC voltages.
Recommended Reading: Stepper vs Servo Motors: What's the Difference?
AC vs DC Motor Comparison
Selecting the right motor type for a specific application involves a detailed comparison of various performance metrics. The historical evolution of motor technology has seen significant advancements that influence today's efficiency, cost, maintenance needs, and lifespan of motors.
The table below provides a snapshot of how AC and DC motors compare across several critical metrics:
Metric | AC Motor | DC Motor |
Power Source | Operate on alternating current only | Operate on DC power derived from batteries, AC to DC converters, etc. |
Efficiency | High at constant speeds. Comparatively less efficient than DC motors due to motor slip and induction current losses0 | High at variable speeds. Higher efficiency than AC motors due to no induction losses. |
Speed Control | Speed can be adjusted by changing the input frequency, typically through a VFD | Speed is adjusted by changing the armature current which is typically controlled by the voltage source. |
Maintenance Needs | Lower maintenance due to fewer sub parts. | Higher due to brushes and commutators |
Applications | Used for high-power and high-torque applications | Ideal for high speed applications. |
Lifespan | Longer lifespan because there are no commutators and brushes | Shorter lifespan as commutators and brushes wear out with time. |
Factors Affecting the Choice of Motor
Some of the critical factors to consider while choosing between AC vs DC motor include:
Efficiency
Efficiency curves and power factors vary significantly depending on the motor type, reflecting their suitability for different operational conditions.
AC motors are generally more efficient at constant speeds, so they are preferred in industrial settings where operations are continuous and predictable.
DC motors exhibit higher efficiency across a broader range of speeds and are thus ideal for applications requiring frequent speed adjustments, such as in vehicle traction systems.
Load Variations
Load variations are critical in engineering applications where operational demands can change rapidly.
For example, in elevator systems, DC motors are often favored for their ability to handle varying load conditions with superior torque control. This adaptability is crucial for ensuring safety and efficiency in response to the elevator's frequent stops and variable passenger loads.
Fig 4: Electric motor in Elevator Engine Room
Maintenance
The differences in maintenance needs primarily stem from the structural and operational characteristics of each motor type.
DC motors, with their brushes and commutators, require more frequent maintenance to address wear and tear.
In contrast, the simpler design of AC motors, often without these components, leads to lower maintenance costs and contributes to their longer lifespan.
Further Reading: Benefits of Early Engagement With an Applications Engineer: DC Motors and Gear Motors
Advancements and Technological Developments
Innovations in AC Motor Design - The Variable Frequency Drive
The introduction of Variable Frequency Drives (VFDs) marks a significant technological leap in the control systems of AC motors. VFD has better functionality and operational capabilities than conventional motors, as they it successfully overcomes efficiency and flexibility challenges with conventional motors. challenges in motor efficiency and operational flexibility.
How VFD Works?
Variable frequency drives enhance AC motor operations by allowing for precise control of motor speed and torque through adjustments in electrical frequency and voltage. Such control precision is achieved by altering the input frequency and voltage of the motor, which directly affects the speed and torque based on the demand, optimizing energy usage.
Success Stories with VFD
The integration of VFDs with AC motors has led to dramatic improvements in energy efficiency and operational cost reductions.
The implementation of VFDs in the HVAC industry has allowed systems to adjust airflow based on real-time occupancy levels, resulting in energy savings up to 40% in large commercial buildings.
The manufacturing sector shows a textile factory that reduced its energy consumption by 25% after retrofitting their AC motors with VFDs.
Breakthroughs in DC Motor Technology
Impact of Brushless DC Motors
The introduction of brushless DC motors fundamentally transformed motor efficiency and reliability. Brushless DC motors eliminated physical brushes and instead used electronic commutation, a breakthrough that significantly altered the use of DC motors in industrial applications. This change not only reduces mechanical wear but also enhances motor efficiency by reducing friction losses associated with brushes.
Integration with Smart Electronics
Electronic control systems have also undergone significant refinements, notably with the integration of smart electronics that allow for real-time adjustments and optimizations. These systems can dynamically alter motor parameters to suit specific operational needs, effectively responding to varying load demands with unprecedented precision.
Enhanced Efficiency of Solar Trackers
Brushless DC motors can adjust the panels to optimally face the sun throughout the day, significantly enhancing energy capture. One notable implementation saw a 30% increase in energy production compared to fixed solar panel setups.
Fig 5: A solar panel is mounted on a DC motor powered tracker
Enhanced Robotic Agility
The adoption of advanced DC motors in robotics has led to more agile and precise robotic movements, crucial in industries where precision is critical.
For example, in automated production lines, these motors have contributed to a 20% increase in assembly speed, alongside improvements in quality control.
Recommended Reading: The Motors Inside Autonomous Robots
Engineering the Future: Applications of AC and DC Motors
Industrial and Commercial Applications
AC and DC motors come from simple designs aimed at basic mechanical tasks. But the technology has grown to encompass sophisticated applications tailored to specific industry needs.
AC Motors in HVAC Systems
AC motors are characterized by their efficiency at constant speeds. So, they are pivotal for modern HVAC systems, leveraging motors' ability to handle high operational voltages and sustain prolonged activity without significant wear, making them ideal for powering fans and compressors that demand consistent performance.
DC Motors in Automotive Industry
With the advancements in speed control and high torque management, DC motors have revolutionized mobility. Electric vehicles, in particular, benefit from DC motors due to their quick response times and precision in handling varying speeds—essential for performance-critical automotive applications.
The use of DC motors in electric vehicles highlights a critical shift towards more energy-efficient and environmentally friendly transportation options, aligning with broader sustainability goals.
Recommended Reading: Solving Automotive Motor Control for Electric Vehicles
Innovative Uses in Modern Engineering
Boosting Aerospace Operations
The trajectory of motor technology, specifically the development of AC and DC motors, has dramatically shifted to address the intricate demands of fields like robotics and aerospace. These industries require not just reliability and efficiency but also precision control that these motors are uniquely equipped to provide.
While AC motors are typically employed in robotics for their robustness, DC motors are essential in aerospace applications due to their precise speed control, and torque.
Overcoming Technical Limitations
Feedback Control to Cater Torque Fluctuations
AC and DC motors face critical challenges such as torque fluctuations and heat generation, which can compromise efficiency and performance. In DC motors, torque fluctuations can disrupt applications demanding high precision, like robotic assembly.
Technological advancements and ongoing research aim to resolve the issue by incorporating enhanced feedback control systems. These systems can stabilize torque by adjusting electrical inputs in real time, ensuring consistent performance
Cooling Techniques for Preventing Heat Damages
AC motors often suffer from excessive heat during prolonged operations. Such overheating can potentially damage insulation and shorten motor lifespan.
. Hence improved cooling techniques and heat-resistant materials help maintain safe operational temperatures, extending durability.
Electromagnetic Shielding to Prevent Signal Disruptions
Electromagnetic interference (EMI) presents another hurdle, particularly in environments dense with electronic devices, leading to potential control system disruptions. Implementing robust shielding techniques for electromagnetic compatibility (EMC) are crucial in mitigating these effects and ensuring motor reliability. Additionally, addressing efficiency losses at high speeds, innovations like integrating permanent magnets in AC motors help reduce energy losses and boost overall performance.
These strategic enhancements not only refine motor functionality but also advance the field of motor technology, enabling more reliable and efficient applications across various engineering disciplines.
Conclusion
Throughout this discussion, AC and DC motors have been explored in depth, highlighting their distinct functionalities and applications across various industries. AC motors are typically favored in settings that require consistent speed and high power efficiency, while DC motors excel in applications demanding precise speed control and high starting torque. The choice between these motor types should be guided by a thorough understanding of their operational characteristics and the specific requirements of the intended application.
Frequently Asked Questions
What are the main differences between AC and DC motors?
AC (alternating current) motors only operate on alternating current while DC (direct current) motors run on electricity that flows in only one direction. AC motors are typically simpler in construction and more commonly used in household appliances and industrial applications due to their ability to generate higher power levels. DC motors are often preferred for applications requiring precise speed control or where variable speed is essential.
Which motor type is more energy-efficient and under what conditions?
DC motors are typically more energy-efficient than AC motors when variable speed capabilities are required. However, AC motors can be more efficient in applications that operate at constant speeds.
How do I choose between an AC and a DC motor for a new project?
Choosing between an AC and a DC motor should be based on specific project requirements such as power needs, control, efficiency, cost, and maintenance. Consider factors like the operational environment, load characteristics, and speed control requirements. Further reading on motor specifications and expert consultations can aid in making an informed decision.
What are the preventative maintenance measures for electric motors?
Preventative maintenance for AC and DC motors includes regular inspections for signs of wear or damage, such as worn bearings or overheating, and promptly addressing any issues identified. Lubrication of moving parts, tightening of electrical connections, and cleaning of air vents to prevent dust buildup are also essential. Additionally, monitoring motor operating conditions and adhering to manufacturer-recommended maintenance schedules can help prevent unexpected failures and downtime, ultimately maximizing motor reliability and efficiency.
What are the typical applications of AC and DC motors, and how do they differ?
AC motors are commonly found in a wide range of applications such as
Household appliances such as fans, air conditioners, refrigerators, and washing machines
Industrial machinery such as pumps, compressors, conveyors, and manufacturing equipment
Power generation systems like generators and alternators, Renewable energy systems such as wind turbines and hydroelectric generators.
DC motors, on the other hand, are often preferred for specific applications that require:
Precise speed control, such as in robotics, conveyor belts, and machine tools.
Variable speed operations, commonly found in electric vehicles, elevators, and cranes.
Battery-powered devices like cordless power tools, electric scooters, and drones.
Regenerative braking systems in hybrid and electric vehicles, where energy is captured during braking and fed back into the battery.
