Introduction

IPC standards form the backbone of the electronics manufacturing industry, providing crucial guidelines for producing high-quality electronic assemblies. These standards, developed by the Association of Connecting Electronics Industries (IPC), cover various aspects of the manufacturing process, from design to assembly and inspection. The most critical IPC standards are IPC-A-610 for the acceptability of electronic assemblies and IPC-6012 for the qualification and performance of rigid PCBs.

Understanding the differences between IPC Class 2 vs Class 3 is critical for electronics professionals, as it directly impacts product performance, reliability, and longevity. The choice between these two classes influences every aspect of the manufacturing process, from component selection to testing protocols.  This post will discuss IPC Class 2 vs Class 3 standards, as the choice of standard affects the products' immediate quality and long-term reliability. Therefore it’s a crucial consideration for engineers and project managers alike, significantly impacting the success of their electronic products in various industries and applications.

Recommended Reading: PCBA Manufacturing: Revolutionizing Modern Electronics Assembly

Head-to-Head: IPC Class 2 vs Class 3 - A Comprehensive Comparison

Acceptance Criteria Comparison

The acceptance criteria for IPC Class 2 and Class 3 electronic assemblies differ significantly, reflecting their intended applications and reliability requirements.

• Class 2 products are designed for dedicated service electronic products where extended life and uninterrupted service are desired

• Class 3 products are used in high-performance or critical applications where downtime cannot be tolerated.

The following table outlines the key differences in acceptance criteria between IPC Class 2 and Class 3:

• Solder Fillet - The higher solder fillet height requirement in Class 3  is crucial for applications subject to high vibration or thermal cycling.

• Component Alignment - Component alignment tolerances are five times tighter in Class 3. , This precision is essential for maintaining the integrity of fine-pitch components in high-density assemblies.

• Trace Width - Class 3 recommends tighter spacing which promotes better component density and reduces the overall size of PCBs.

• Board Thickness - Class 2 somewhat compromises on board size due to its generic use while Class 3 strictly promotes thicker boards with more layers, to make boards more compact and sturdy.

Suggested Reading: What is a Multilayer PCB?

• PCB Laminate Material - PCB laminate material specifications for Class 3 require a higher glass transition temperature. This is critical for applications exposed to extreme temperatures or frequent thermal cycling.

• Cleanliness Levels  - are also more stringent for Class 3, with ionic contamination limits set at half the level allowed for Class 2 It is critical for long-term reliability in harsh environments or high-humidity conditions.

Inspection and Testing Protocols

Inspection and testing protocols for IPC Class 2 and Class 3 electronic assemblies differ significantly in their stringency and comprehensiveness. These protocols ensure that the final products meet the required quality and reliability standards for their respective applications.

Visual Inspection

• Class 2 assemblies typically require 3X to 10X magnification for visual inspection

• Class 3 assemblies demand 10X to 30X magnification.

The higher magnification requirement for Class 3 allows for a more detailed examination of the solder joints, component placement, and potential defects.

In-Circuit Testing (ICT):

In-circuit testing protocols for Class 3 assemblies typically include more test points and tighter tolerance limits than Class 2. For instance, Class 3 ICT might require 100% node coverage, while Class 2 might accept 90-95% coverage.

Fig 1: A tester visually inspecting a PCB for solder and connection quality

Automated Optical Inspection (AOI)

AOI parameters for Class 3 are more stringent than Class 2.

• Class 3 may require detection of solder joint defects as small as 0.1mm

• Class 2 might allow defects up to 0.2mm.

Class 3 AOI systems often use multiple camera angles and advanced algorithms to detect subtle defects that might be overlooked in Class 2 inspections.

Further Reading: What is AOI (Automated Optical Inspection): A Comprehensive Guide

X-ray Inspection

X-ray inspection is more commonly required for Class 3 assemblies, especially for components with hidden solder joints like Ball Grid Arrays (BGAs). Class 3 X-ray inspections often use higher resolution settings and more advanced void analysis techniques compared to Class 2.

Environmental Stress Screening

Class 3 assemblies undergo more rigorous environmental stress screening. This may include extended temperature cycling (-55°C to +125°C for Class 3 vs -40°C to +85°C for Class 2), vibration testing, and humidity cycling. These tests are conducted in accordance with IPC-TM-650 test methods.

The typical inspection process for each class can be outlined as follows:

Class 2 Inspection Process:

1. Visual inspection (3X-10X magnification)

2. Automated Optical Inspection (AOI)

3. In-circuit testing (ICT) with 90-95% coverage

4. Functional testing

5. Sample-based environmental stress screening

Class 3 Inspection Process:

1. Visual inspection (10X-30X magnification)

2. Automated Optical Inspection (AOI) with tighter parameters

3. X-ray inspection for critical components

4. In-circuit testing (ICT) with 100% coverage

5. Functional testing under various environmental conditions

6. Comprehensive environmental stress screening

7. Burn-in testing for extended periods

The inspection and testing protocols for both classes are guided by several IPC standards, including IPC-A-610 for the acceptability of electronic assemblies, IPC-6012 the for qualification and performance of rigid PCBs, and IPC-TM-650 for test methods.

Decoding IPC Standards: A Primer

What Are IPC Standards?

IPC standards are a set of guidelines and requirements developed by the Association of Connecting Electronics Industries (formerly known as the Institute for Printed Circuits) to ensure quality, reliability, and consistency in the electronics manufacturing industry. These standards serve as a common language between manufacturers, suppliers, and customers, providing benchmarks for design, production, and acceptance of electronic assemblies and printed circuit boards (PCBs).

The IPC classification system divides electronic products into three classes based on their intended use and reliability requirements:

1. Class 1 - General Electronic Products

2. Class 2 - Dedicated Service Electronic Products

3. Class 3 - High-Performance/Harsh Environment Electronic Products

Each class has specific criteria for acceptability, with Class 3 having the most stringent requirements and Class 1 the least. These criteria cover aspects such as solder joint quality, component placement accuracy, and overall workmanship.

Key areas covered by IPC standards include:

• IPC-A-610: Acceptability of Electronic Assemblies

  • Provides visual acceptance criteria for electronic assemblies

  • Covers aspects like solder joints, component placement, and damage to PCBs

• IPC-6012: Qualification and Performance Specification for Rigid Printed Boards

  • Establishes requirements for qualification and performance of rigid PCBs

  • Includes specifications for materials, electrical properties, and mechanical properties

• IPC-7711/7721: Rework, Modification and Repair of Electronic Assemblies

  • Provides procedures for rework, repair, and modification of electronic assemblies

  • Covers techniques for component removal, replacement, and circuit board repair

• IPC-J-STD-001: Requirements for Soldered Electrical and Electronic Assemblies

  • Describes materials, methods, and verification criteria for producing soldered electrical and electronic assemblies

  • Includes requirements for through-hole and surface mount assemblies

These standards are regularly updated to keep pace with technological advancements and industry needs, ensuring that they remain relevant and effective in maintaining high-quality standards in electronics manufacturing.

The Hierarchy of IPC Classes

The IPC classification system establishes a hierarchy of electronic product classes based on the intended end-use environment, reliability requirements, and overall product lifecycle expectations. This system helps manufacturers, designers, and customers align their expectations and processes to achieve the desired level of quality and reliability.

IPC Class 1

These products are designed for general electronic applications where cosmetic imperfections are acceptable and the major requirement is the function of the completed assembly. IPC Class 1 has the simplest design and the fewest PCB layers.  These products are most cost-effective, typically have a limited life cycle, and are used in non-critical applications. Examples include toys, simple consumer electronics, and disposable electronic devices.

IPC Class 2

These products are intended for dedicated service electronic products where extended performance and longer life are required, and for which uninterrupted service is desired but not critical. These products typically operate in more demanding environments than Class 1 products and have higher reliability expectations. Examples include high-end consumer electronics, commercial-grade computing equipment, and industrial control systems.

IPC Class 3

These products represent the highest level of reliability and performance in the IPC classification system. These products are designed for harsh environments where performance is critical. It’s least tolerant for any visual flaws, equipment downtime isn’t acceptable, as the end-use environment may be uncommonly harsh. Class 3 products must function when required, such as life-support systems, critical military and aerospace equipment, and advanced medical devices.

The following table compares the general characteristics and specific technical requirements of each IPC class:

These hierarchical differences in IPC classes allow manufacturers to tailor their processes and quality control measures to meet the specific needs of different product types and end-use environments.

IPC Class 2: Dedicated Service Electronics

Defining Characteristics of Class 2

IPC Class 2 products are designed for dedicated service electronic applications, where extended performance and longer life are required, and for which uninterrupted service is desired but not critical. These products typically operate in more demanding environments than Class 1 products and have higher reliability expectations.

Typical applications for Class 2 products include:

• High-end consumer electronics (e.g., smartphones, laptops)

• Commercial-grade computing equipment

• Industrial control systems

• Automotive electronics

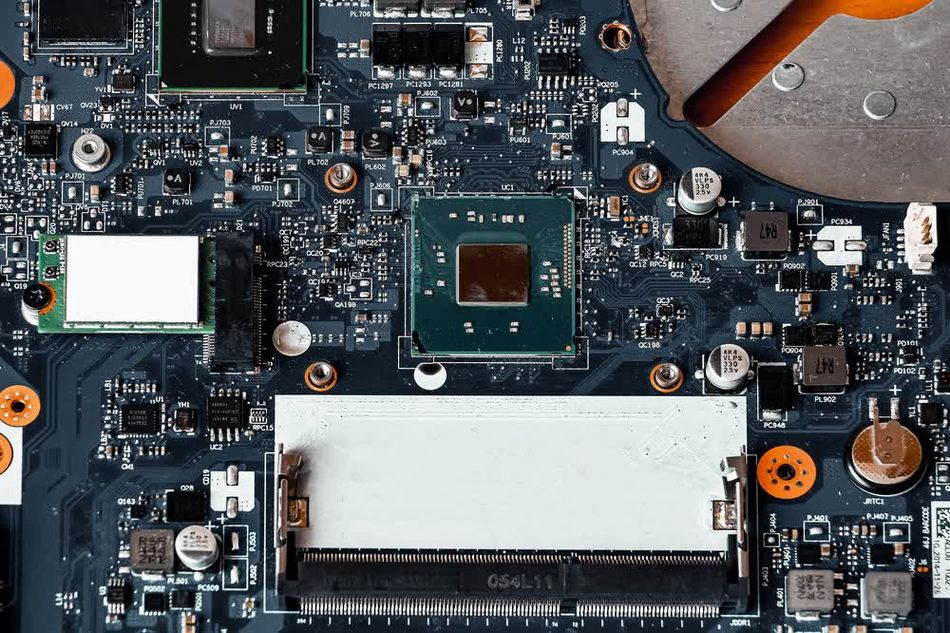

• Telecommunications equipmentFig 2: IPC Class 2 PCB (a laptop circuit board)

Key requirements and acceptance criteria for Class 2 products, as outlined in IPC-A-610, include:

1. Solder Joint Quality: Class 2 requires good wetting and a smooth appearance for solder joints. According to IPC-A-610 section 7.5.5, a minimum of 75% side joint fillet is required for chip components.

2. Component Placement: As per IPC-A-610 section 8.2.2, component placement tolerance for most components is ±0.5 mm, which is more stringent than Class 1 but less strict than Class 3.

3. PCB Quality: IPC-A-600 Class 2 requirements apply, allowing for minor imperfections that do not affect functionality or reliability.

4. Cleanliness: IPC-A-610 section 10.6.4 specifies that no visible residues are allowed, and ionic contamination should not exceed 1.56 μg NaCl/cm².

Specific features of Class 2 products include:

• Extended life expectancy requirements:

• Designed for an operational life of 5-10 years

• Components selected for longevity and reliability

• Design considerations for thermal management and stress reduction

• Uninterrupted service expectations:

• Emphasis on consistent performance over time

• Incorporation of redundancy in critical circuits where feasible

• Design for maintainability to minimize downtime during servicing

• Specific environmental condition tolerances:

• Operating temperature range typically -20°C to +75°C

• Humidity resistance up to 85% RH non-condensing

• Moderate shock and vibration resistance

• Limited protection against harsh chemicals or corrosive environments

These characteristics make Class 2 products suitable for applications where reliability is important, but the extreme demands and zero-failure tolerance of Class 3 are not necessary. The balance between performance, reliability, and cost makes Class 2 the most common choice for a wide range of electronic products in commercial and industrial settings.

Manufacturing Processes and Tolerances

IPC Class 2 products require precise manufacturing processes and adherence to specific tolerances to ensure reliability and performance in dedicated service applications. These processes and tolerances strike a balance between the less stringent requirements of Class 1 and the highly demanding standards of Class 3.

Reflow Soldering Profiles: Class 2 reflow soldering typically follows a profile with four stages:

1. Preheat: 150-200°C for 60-120 seconds

2. Soak: 150-200°C for 60-120 seconds

3. Reflow: Peak temperature 230-250°C for 30-90 seconds (not exceeding 260°C)

4. Cooling: Natural cooling to 50°C

Wave Soldering Parameters: For through-hole components, wave soldering parameters for Class 2 include:

• Preheat temperature: 90-150°C

• Solder pot temperature: 245-255°C

• Conveyor speed: 0.9-1.5 m/min

• Contact time: 3-5 seconds

Component Placement Accuracy: Class 2 requires moderate placement accuracy, typically:

• Chip components: ±0.5 mm

• Small outline packages: ±0.5 mm

• Ball Grid Arrays (BGAs): ±0.1 mm

Acceptable Tolerances:

1. Solder Joint Fillet Height and Wetting:

   • Minimum side fillet height: 25% of lead thickness

   • Minimum end fillet height: 0% (wetting should be visible)

   • Wetting angle: ≤ 90°

2. Component Alignment and Spacing:

   • Chip component rotation: ≤ 50% of width

   • Minimum spacing between components: 0.5 mm

   • Minimum spacing from board edge: 1.0 mm

3. PCB Laminate Material Requirements:

   • Glass transition temperature (Tg): ≥ 130°C

   • Time to delamination at 260°C: ≥ 60 seconds

IPC Class 3: High-Performance Electronics

Stringent Requirements of Class 3

IPC Class 3 products represent the pinnacle of electronic manufacturing standards, designed for applications where performance is critical and equipment downtime cannot be tolerated. These high-reliability electronics are typically used in life-support systems, critical military and aerospace equipment, and advanced medical devices. The stringent requirements for Class 3 products ensure their ability to function flawlessly in demanding and often harsh environments.

Key requirements and acceptance criteria for Class 3 products, as outlined in IPC-A-610 and IPC-6012, include:

1. Solder Joint Quality: IPC-A-610 section 7.5.3 specifies that Class 3 solder joints must have a minimum of 75% circumferential fillet for through-hole components and 100% side joint fillet for surface mount components.

2. Component Placement: According to IPC-A-610 section 8.2.2, component placement tolerance for most components is ±0.1 mm, which is significantly tighter than Class 2 requirements.

3. PCB Quality: IPC-6012 Class 3 requirements apply, allowing for minimal imperfections. Section 3.3.1 specifies stricter conductor width and spacing tolerances compared to Class 2.

4. Cleanliness: IPC-A-610 section 10.6.4 mandates that no visible residues are allowed, and ionic contamination should not exceed 0.78 μg NaCl/cm², which is half the limit for Class 2.

5. Thermal Management: IPC-6012 section 3.9 requires enhanced thermal management considerations for Class 3 boards, including stricter requirements for thermal stress testing.

Specific features of Class 3 products include:

• Continuous performance requirements:

• Designed for uninterrupted operation over extended periods

• Incorporation of redundant systems and fail-safe mechanisms

• Extensive burn-in testing to ensure long-term reliability

• Zero downtime expectations:

• Implementation of predictive maintenance capabilities

• Use of high-reliability components with extremely low failure rates

• Design for quick fault isolation and repair to minimize any potential downtime

• Harsh environment survivability criteria:

• Ability to withstand extreme temperature ranges (typically -55°C to +125°C)

• Resistance to high humidity, salt spray, and corrosive environments

• Enhanced protection against electromagnetic interference (EMI) and electrostatic discharge (ESD)

• Capability to endure high levels of shock and vibration

These stringent requirements ensure that Class 3 products can meet the demands of mission-critical applications where failure is not an option. The combination of precise manufacturing processes, high-quality materials, and rigorous testing protocols results in electronic assemblies that offer the highest level of reliability and performance in the most challenging operational environments.

Suggested Reading: Mastering PCB Testing: Techniques, Methods, and Best Practices Unveiled

Advanced Manufacturing Techniques

IPC Class 3 products demand the most advanced manufacturing techniques to ensure precision, consistency, and quality throughout the manufacturing process.

Precision Component Placement

Class 3 products utilize state-of-the-art pick-and-place machines with enhanced vision systems and ultra-precise positioning capabilities. These machines typically achieve placement accuracies of ±0.025mm or better, compared to ±0.1mm for Class 2. Advanced fiducial recognition systems and real-time position feedback mechanisms involving pick-and-place machines are employed to maintain this high level of accuracy.

Fig 3: A pick-and-place robot precisely places silicon chips on a PCB.

Specialized Soldering Methods

Vapor phase soldering is often used for Class 3 products due to its ability to provide uniform heating and minimize thermal stress on components. This method involves immersing the PCB in a vapor of an inert fluorocarbon liquid, ensuring even heat distribution and reducing the risk of component damage. Additionally, selective soldering techniques may be used for through-hole components to achieve precise control over the soldering process.

Suggested Reading: Types of Solder: A Comprehensive Guide for Engineering Professionals

Conformal Coating

Class 3 products frequently require a conformal coating to protect against harsh environments. Advanced application methods such as selective robotic coating or vapor deposition are used to ensure uniform coverage and precise thickness control. UV-curable coatings are often preferred for their rapid curing times and excellent chemical resistance.

Tighter Tolerances and Higher Quality Standards

1. Stricter Solder Joint Acceptance Criteria:

   • Class 3 requires 100% side fillet for surface mount components, compared to 75% for Class 2.

   • Void content in BGA solder joints must not exceed 9% for Class 3, versus 25% for Class 2.

2. More Rigorous Cleanliness Requirements:

   • Ionic contamination limit of 0.78 μg NaCl/cm² for Class 3, half the limit for Class 2.

   • Use of advanced cleaning processes such as vapor degreasing or plasma cleaning to achieve higher cleanliness levels.

3. Enhanced Thermal Management:

   • Incorporation of thermal vias, copper coins, or embedded heat spreaders in PCB design.

   • Use of advanced thermal interface materials with higher thermal conductivity.

   • Implementation of active cooling solutions for high-power components.

Choosing Between Class 2 and Class 3

Factors to Consider

When deciding between IPC Class 2 and Class 3 for electronic assemblies, several critical factors must be evaluated to ensure the final product meets the required performance and reliability standards. These factors encompass various technical and operational aspects that directly impact the product's suitability for its intended application.

1. Application Criticality and Reliability Requirements

Class 3 is essential for mission-critical systems where failure could result in catastrophic consequences, such as loss of life or significant financial impact.

Class 2 is suitable for applications where high reliability is desired but not absolutely critical.

2. Environmental Conditions

The operating environment plays a crucial role in class selection. Class 3 is designed to withstand harsh conditions, including:

• Extreme temperatures (typically -55°C to +125°C)

• High humidity and moisture exposure

• Severe vibration and shock

• Exposure to corrosive substances or radiation

Class 2 is suitable for less demanding environments, typically operating in the range of -20°C to +75°C with moderate humidity and vibration levels.

3. Expected Product Lifespan

Class 3 products are engineered for extended operational life, often 20 years or more, with minimal maintenance. Class 2 products typically have a lifespan of 5-10 years, which is sufficient for many commercial and industrial applications.

Recommended Reading: Accelerated Electronics Product Design Using Cloud Manufacturing

4. Signal Integrity Considerations

High-speed and high-frequency applications often require Class 3 standards due to:

• Tighter impedance control requirements

• Stricter crosstalk and EMI/EMC specifications

• More precise component placement for optimal signal performance

Class 2 can accommodate moderate signal integrity requirements but may not be suitable for cutting-edge high-speed designs.

5. Thermal Management Requirements

Class 3 designs often incorporate advanced thermal management techniques to ensure reliable operation in high-power or thermally challenging environments. This includes:

• Use of thermal vias and copper planes

• Integration of heat sinks and active cooling systems

• Selection of high-temperature-rated components Class 2 designs typically have less stringent thermal management requirements, suitable for moderate power applications.

Pros and Cons of IPC Classes

The following summary shows the benefits and demerits of IPC Class 2 and IPC Class 3.

IPC Class Products Examples

Class 2 products are typically found in industries and applications where there are budget constraints, and the products are intended for use in a controlled environment. For instance:

1. Consumer Electronics: High-end smartphones and laptops require reliability but operate in controlled environments. The balance of performance and cost makes Class 2 ideal.

2. Industrial Control Systems: Many factory automation systems use Class 2 standards due to their controlled operating environments and the ability to tolerate brief downtimes.

Class 3 products are found in more challenging environments which require high-level precision and robustness:

1. Aerospace: Avionics systems require Class 3 due to extreme operating conditions (temperature, pressure, vibration) and zero-failure tolerance.

2. Medical Implants: Devices like pacemakers demand Class 3 standards due to their critical nature, long lifespan requirements, and the need to operate reliably within the human body.

Conclusion

IPC Class 2 and Class 3 standards represent distinct levels of reliability and performance in electronic manufacturing. Class 2, designed for dedicated service electronics, offers a balance between reliability and cost-effectiveness. It features moderate component placement tolerances (±0.5 mm), allows for 75% solder joint fillet coverage, and operates within temperature ranges of -20°C to +75°C. In contrast, Class 3, tailored for high-reliability electronics, demands stricter manufacturing processes with tighter component placement tolerances (±0.1 mm), requires 100% solder joint fillet coverage, and withstands extreme temperatures from -55°C to +125°C.

Selecting the appropriate class is crucial and should be based on thorough technical analysis of the product's intended application. Factors such as operating environment, expected lifespan, signal integrity requirements, and thermal management needs must be carefully evaluated. Class 2 is suitable for many commercial and industrial applications where occasional failures can be tolerated, while Class 3 is essential for mission-critical systems where failure is not an option.

Frequently Asked Questions

1. What are the key differences in solder joint acceptance criteria between Class 2 and Class 3?

Class 3 requires 100% side fillet for surface mount components, compared to 75% for Class 2. For through-hole components, Class 3 mandates a minimum of 75% circumferential fillet, while Class 2 allows for 50%. These criteria are specified in IPC-A-610.

2. How do PCB material selection considerations differ for Class 2 and Class 3?

Class 3 PCBs typically require materials with higher glass transition temperatures (Tg ≥ 170°C) and longer time-to-delamination at elevated temperatures, as per IPC-6012. Class 2 allows for more standard materials with Tg ≥ 130°C.

3. What are the thermal cycling test requirements for Class 2 vs Class 3?

Class 3 products undergo more rigorous thermal cycling tests, often from -55°C to +125°C for 1000 cycles or more, as specified in IPC-TM-650. Class 2 products typically face less extreme conditions, such as -40°C to +85°C for 500 cycles.

4. How do conformal coating specifications differ between Class 2 and Class 3?

Class 3 conformal coatings are generally thicker (30-130 μm) and must pass more stringent environmental tests as per IPC-CC-830. Class 2 coatings are typically thinner (25-75 μm) with less rigorous testing requirements.

5. What are the key differences in component placement accuracy between Class 2 and Class 3?

Class 3 requires tighter component placement tolerances, typically ±0.1 mm for most components, while Class 2 allows for ±0.5 mm. This is crucial for high-density assemblies and is specified in IPC-A-610.

6. How do cleanliness requirements differ for Class 2 and Class 3 assemblies?

Class 3 has stricter cleanliness requirements, with an ionic contamination limit of 0.78 μg NaCl/cm², half the limit for Class 2 (1.56 μg NaCl/cm²). This is crucial for preventing electrochemical migration and is specified in IPC-A-610.

7. What are the key differences in inspection requirements between Class 2 and Class 3?

Class 3 requires more rigorous inspection processes, including 100% X-ray inspection for hidden solder joints and higher magnification (10X-30X) for visual inspections. Class 2 typically uses lower magnification (3X-10X) and may not require 100% X-ray inspection, as per IPC-A-610 guidelines.

References

1. Decoding IPC Standards: Class 1, 2, & 3 PCBs Explained (rowsum.com)

2. IPC Class 2 vs 3: The Differences in PCB IPC Standards (nextpcb.com)

3. IPC Class Definition | Class 2 vs Class 3: Different PCB Design Rules (pcbasic.com)

4. IPC Class 2 vs Class 3: The Different Design Rules | Sierra Circuits (protoexpress.com)
