Understanding Transistors: What They Are and How They Work

This article dives into the compelling history of transistors, tracing their evolution from early breakthroughs to their current pivotal role in the digital age. It explains how transistors function as semiconductors, providing amplification and switching capabilities, and the progress in transistor manufacturing techniques, emphasizing the materials and processes driving modern electronics. Additionally, it navigates the present-day challenges, including the pursuit of enhanced performance and reduced power consumption.

Introduction to Transistors

Transistors are fundamental building blocks of modern electronic devices. They are semiconductors that amplify or switch electronic signals and electrical power. Essentially, transistors are crucial components in nearly all modern electronics, including computers, smartphones, and digital watches, to name a few.

The importance of transistors in modern electronics cannot be overstated as they have revolutionized technology and have played a central role in the digital age by making it possible to miniaturize electronic devices and, therefore, resulting in smaller, faster, and more energy-efficient products. They are the key elements that drive the functionality of integrated circuits, which are the heart of all digital devices.

Moreover, transistors have enabled the development of countless devices that have transformed society. From radios and televisions to computers and mobile phones, transistors have made a significant impact on our daily lives. They have also played a crucial role in advancing technology, enabling the development of microprocessors, digital signal processing, and data storage.

In essence, transistors have made the digital age possible. Without them, the technological advancements we enjoy today would not have been possible. Thus, understanding how transistors work and their role in electronics is fundamental to understanding modern technology.

The History of Transistors

The history of transistors dates back to the early 20th century. The first transistor was invented in 1947 by a team of scientists at Bell Laboratories in the United States, which included William Shockley, John Bardeen, and Walter Brattain. This invention was a monumental breakthrough in electronics, marking the beginning of the semiconductor era. [1]

The transistor was a revolutionary invention because it offered a more reliable and compact alternative to the vacuum tubes used in electronic devices at the time. Vacuum tubes were bulky, consumed a lot of power, and had a limited lifespan, whereas transistors were small, required less power, and had a much longer lifespan, making them ideal for use in a wide range of electronic devices.

The first transistors were made of germanium, which was readily available then. [2] However, germanium had several drawbacks, including a high cost and a tendency to perform poorly at high temperatures. Consequently, in the 1950s, researchers began to explore the use of silicon as an alternative to germanium. Silicon had several advantages over germanium, including a higher melting point and better electrical properties. By the late 1950s, silicon had become the material of choice for transistor production. [3]

The invention and subsequent development of the transistor have had a profound impact on the evolution of modern electronics. Transistors have enabled the miniaturization of electronic devices, leading to the development of integrated circuits and microprocessors. These advancements have, in turn, paved the way for the digital age, transforming society in countless ways. From computers and smartphones to medical devices and space exploration, transistors have played a crucial role in shaping the world as we know it today.

Evolution and Modern Transistors

Following the invention of the point-contact transistor in 1947, the field of electronics entered a period of rapid evolution and innovation. However, the point-contact transistor, while revolutionary, was difficult to manufacture reliably and was not suitable for mass production. This demand pushed the development of the junction transistor, a more reliable and easier-to-manufacture design, in the early 1950s. [2],[3]

The junction transistor, a three-layer device with a thin layer of one type of semiconductor material sandwiched between two thicker layers of the other type, was more robust and reliable than the point-contact transistor. Consequently, it quickly became the standard for transistor design.

In the 1950s and 1960s, the transistor underwent further evolution with the development of the bipolar junction transistor (BJT) and the field-effect transistor (FET)4. While the BJT, operating on a different principle, is also a three-layer device, the FET is a four-layer device that controls the width of a 'channel' through which current flows.

Developing these new types of transistors opened up new possibilities for electronic design. Transistors could now be used not only to amplify signals but also to switch them on and off, making digital electronics possible. This advancement led to the development of integrated circuits, which are collections of transistors and other components on a single chip, in 1958 By the 1960s, integrated circuits were being used in a wide range of electronic devices. [2]

The evolution of the transistor continued, as in the 1970s, the metal-oxide-semiconductor field-effect transistor (MOSFET) was developed, becoming the most common type of transistor in use today, as it has several advantages over earlier types of transistors. For instance, it is easier to manufacture, can be made very small, and consumes very little power.

Today, transistors are ubiquitous in modern electronics, and their evolution is far from over. They are used in everything from computers and smartphones to cars and household appliances, driving the digital revolution and enabling the development of increasingly powerful and complex electronic devices.

Transistor Materials and Manufacturing Process

The materials used to produce transistors and their manufacturing process are critical to their performance and functionality. Silicon, a semiconductor, is the most commonly used material in transistor production due to its excellent semiconductor properties, abundance, and relatively low cost. It has a crystalline structure that allows the controlled introduction of impurities, a process known as doping, which is crucial for the operation of transistors.

Doping involves introducing impurities into the silicon to change its conductivity. There are two types of doping: n-type, where the dopant atoms have more valence electrons than silicon, and p-type, where the dopant atoms have fewer valence electrons. The interaction between n-type and p-type materials in a transistor allows the control and amplification of electrical signals.

The manufacturing process of transistors is complex and involves several steps. The process begins with creating a silicon wafer, a thin slice of silicon crystal. Then, the wafer is subjected to various processes, including oxidation, photolithography, etching, and diffusion or ion implantation, to create the transistor's structure. Oxidation involves growing a silicon dioxide layer on the wafer, which acts as an insulator. Photolithography is used to transfer the transistor's pattern onto the wafer, etching removes unwanted material to reveal the transistor's structure, and diffusion or ion implantation introduces the dopants into the silicon.

The final steps involve depositing metal contacts to connect the transistor to the rest of the circuit and packaging the finished transistor for electronic devices. The entire process is carried out in a cleanroom environment to prevent contamination, which could negatively affect the transistor's performance.

Over the years, the manufacturing process of transistors has evolved significantly thanks to technological advances, enabling the production of increasingly smaller and more powerful transistors. Today, transistors are manufactured using advanced techniques such as FinFET (Fin Field-Effect Transistor) and GAAFET (Gate-All-Around Field-Effect Transistor) technology, which allow for the production of transistors with features as small as a few nanometers.

These advances in materials and manufacturing processes have been key to the ongoing evolution of transistor technology, enabling the development of increasingly powerful and energy-efficient electronic devices.

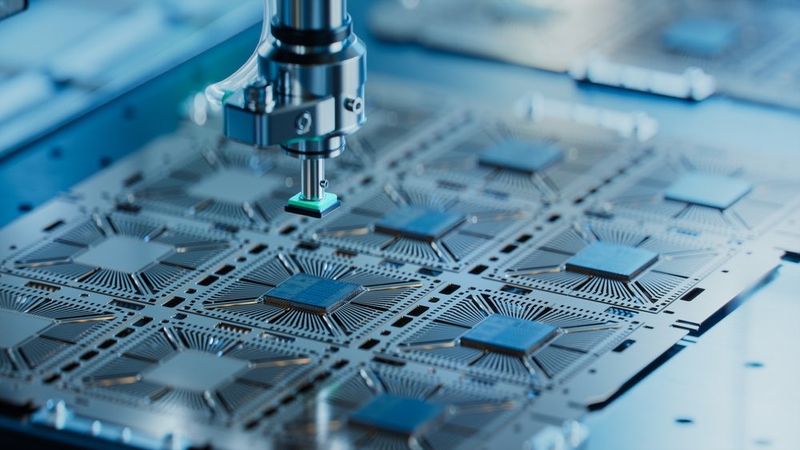

Illustration of a semiconductor chip production.

Recommended Reading: Chips and Wafers: Making of the semiconductor industry

Basic Principles of Transistors

Transistors operate based on the principles of semiconductor physics. At the core of these principles is the concept of charge carriers, which may be either electrons or holes (the absence of an electron). These charge carriers’ behavior in a transistor's semiconductor material allows it to control and amplify electrical signals.

Typically, a transistor consists of three layers of semiconductor material: the emitter, base, and collector. The emitter and collector are generally heavily doped, meaning they have a high concentration of charge carriers, while the base is lightly doped. The emitter and collector belong to one doping type (either n-type or p-type), while the base belongs to the other type.

The key to a transistor's operation is the base-emitter junction, which acts as a gate. By applying a small current to the base, it allows a much larger current to flow from the emitter to the collector. This is the amplification effect of a transistor.

The base-emitter junction can also act as a switch. When no current is applied to the base, the junction prevents current from flowing from the emitter to the collector, and when a current is applied to the base, it allows the current to flow. This switching capability is what makes transistors so valuable for digital electronics.

The operation of a transistor can be further understood by looking at its characteristic curves, which plot the output current against the input voltage for different levels of base current. These curves show how the transistor's output current changes with changes in input voltage and base current, providing a graphical representation of the transistor's amplification and switching properties.

The principles of transistor operation are the same for all types of transistors, although the specifics can vary depending on the type of transistor and its intended application. Regardless of the type, the basic principles of charge carrier behavior, doping, and junction operation make transistors such a powerful tool in electronics.

Semiconductors and Transistors

Semiconductors are the foundation of modern electronics due to their electrical conductivity, which falls between conductors and insulators. The most frequently used semiconductor material in transistors is silicon, although other materials like germanium and gallium arsenide are also used in some applications.

The unique properties of semiconductors arise from their atomic structure and the behavior of their electrons. These materials have a valence band, which contains the outermost electrons of the atoms, which is separated from the conduction band by a small energy gap called the bandgap. Fundamentally, a semiconductor behaves as an insulator at absolute zero temperature, with all its electrons occupying the valence band. However, as the temperature increases, some electrons gain enough energy to jump across the bandgap and enter the conduction band, allowing the material to conduct electricity.

The electrical properties of semiconductors can be regulated by introducing impurities, a process known as doping. This involves adding a small amount of another element to the semiconductor material, creating either an excess or a deficiency of electrons. Consequently, it results in two types of semiconductors: n-type, which has an excess of electrons, and p-type, which has a deficiency of electrons (or an excess of holes, which are the absence of electrons).

Transistors exploit the properties of semiconductors to control and amplify electrical signals, alternating n-type and p-type layers in its three-layer configuration. The interaction between these layers and the flow of electrons and holes within them allows transistors to function as amplifiers or switches.

In a transistor, the flow of charge carriers (electrons or holes) between the layers is controlled by a voltage applied to one of the layers, called the base. By varying the voltage at the base, the current flowing between the other two layers, the emitter and the collector, can be controlled. This allows the transistor to amplify or switch electrical signals, making it a fundamental building block of modern electronic devices.

Recommended Reading: What is a Semiconductor? A Comprehensive Guide to Engineering Principles and Applications

The Role of Doping in Transistor Function

Doping is a critical process in the fabrication of transistors, as it allows for the control of the electrical properties of semiconductor materials. By introducing impurities into the semiconductor, the concentration of charge carriers (electrons or holes) can be adjusted, which in turn affects the material's conductivity.

There are two types of doping: n-type and p-type. In n-type doping, impurities with more valence electrons than the semiconductor material are added, resulting in an excess of electrons. Consequently, these additional electrons can move within the material, increasing its conductivity. Common n-type dopants include phosphorus and arsenic, which have five valence electrons compared to silicon's four.

p-n junction of semiconductor materials.

On the other hand, in p-type doping, impurities with fewer valence electrons than the semiconductor material are added, creating a deficiency of electrons or an excess of holes. These holes can accept electrons from neighboring atoms, allowing the movement of charge and increased conductivity. Boron is a common p-type dopant, as it has three valence electrons compared to silicon's four.

The interaction between n-type and p-type materials is at the core of transistor operation. A transistor typically consists of three layers of semiconductor material, with alternating n-type and p-type layers. The middle layer, called the base, is lightly doped, while the outer layers, the emitter and collector, are heavily doped.

When a voltage is applied to the base, it controls the flow of charge carriers between the emitter and the collector. In an n-p-n transistor, for example, electrons flow from the n-type emitter to the p-type base and then to the n-type collector. By controlling the flow of charge carriers, the transistor can amplify or switch electrical signals.

In summary, doping is essential for the proper functioning of transistors, as it enables the precise control of electrical properties in semiconductor materials. This control allows transistors to perform their critical roles in modern electronics, acting as amplifiers and switches in a wide range of devices and applications.

Transistor Innovations and Breakthroughs

Since its invention in 1947, transistors have undergone numerous innovations and breakthroughs, and each of these developments has contributed to the advancement of technology and the digital revolution. Over the years, the journey from the first point-contact transistor to today's nanoscale transistors has been marked by continuous innovation and the relentless pursuit of Moore's Law, which predicts the doubling of transistor density on a chip approximately every two years.

One of the earliest breakthroughs was the invention of the bipolar junction transistor (BJT) in 19482. Unlike the point-contact transistor, the BJT was easier to manufacture and more reliable, making it suitable for mass production. As a result, the BJT was the workhorse of the electronics industry for many years, powering everything from radios to computers.

The next major innovation came in 1959 with the invention of the metal-oxide-semiconductor field-effect transistor (MOSFET), also known as the MOS transistor5. The MOS transistor offered several advantages over the BJT, including lower power consumption and the ability to be miniaturized, making it ideal for integrated circuits. Today, MOS transistors are the most widely used type of transistor in the world.

In the 1970s, complementary metal-oxide-semiconductor (CMOS) technology was introduced, which uses both n-type and p-type MOS transistors to reduce power consumption5. Nowadays, CMOS technology is the standard for most digital circuits, including microprocessors, memory chips, and other digital logic circuits.

In the 21st century, as transistor dimensions approached the nanometer scale, innovations were needed to overcome the physical limitations of traditional transistor designs. One such innovation is the FinFET, a type of MOS transistor that uses a 3D structure to improve control of the current flow, enabling further miniaturization and improved performance.

Another recent breakthrough is the development of carbon nanotube transistors, which promise even more outstanding performance and energy efficiency than silicon transistors. While still in the research stage, carbon nanotube transistors represent a potential future direction for transistor technology.

All these innovations and breakthroughs have transformed the transistor from a laboratory curiosity into the fundamental building block of modern electronics, powering everything from smartphones to supercomputers. They demonstrate the incredible potential of transistor technology and its central role in the ongoing digital revolution.

NEW CHALLENGE JUST LAUNCHED

The Global Photonics Engineering Contest invites engineers, innovators, and startups to push the boundaries of Photonic Integrated Circuits (PIC) and create applications that address complex engineering challenges and push the boundaries of the industry. Whether you’re in semiconductors, data & telecom, medtech, or agritech, we want to see your breakthrough idea that can harness the power of PICs to change the world.

• Prize: €50,000 worth of services from the PhotonDelta ecosystem to to make your idea market-ready + a chance to receive up to €2 million in pre-seed funding.
• Audience: Open to all engineers, researchers, OEMs, hardware manufacturers, startups/scale-ups, research teams, and students working on innovative PIC applications.
• End date: March 3rd 2025

LEARN MORE NOW

Types of Transistors

Transistors come in a variety of types, each with its unique characteristics and applications. The two most common types are the Bipolar Junction Transistor (BJT) and the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET).

The BJT is a transistor that uses both electron and hole charge carriers, and it comes in two types: NPN and PNP. It consists of three layers of semiconductor material, called the emitter, base and collector, forming two pn junctions. BJTs are known for their high current gain and are commonly used in audio amplifiers and signal-processing circuits.

The MOSFET, on the other hand, is a type of field-effect transistor that uses an electric field to control the flow of charge carriers, and it comes in two types: n-channel and p-channel, depending on whether they use electrons or holes as charge carriers. It has four terminals: the source, gate, drain, and body, whereas the gate voltage determines whether the MOSFET conducts or insulates. MOSFETs are widely used in digital circuits and microprocessors due to their high input impedance and low power consumption.

In addition to these two types, the Junction Field-Effect Transistor (JFET) is another transistor that uses a pn junction to control the flow of charge carriers rather than a metal-oxide layer. JFETs have a high input impedance and are commonly used in input stages of amplifiers and oscillators.

The Insulated-Gate Bipolar Transistor (IGBT) is yet another type of transistor that combines the high input impedance of a MOSFET with the high current-carrying capability of a BJT. IGBTs are commonly used in power electronics, such as inverters and electric motor drives.

Finally, the FinFET is a type of MOSFET that uses a 3D structure to improve control of the current flow, enabling further miniaturization and improved performance. FinFETs are used in the latest generation of microprocessors and memory chips.

In conclusion, each type of transistor has its advantages and disadvantages, and the choice of which to use depends on the specific requirements of the application. Regardless, all transistors operate based on the same basic principles of semiconductor physics and charge carrier behavior.

Bipolar Junction Transistors (BJTs)

In an NPN BJT, the emitter is made of n-type material, the base is made of p-type material, and the collector is made of n-type material. Conversely, in a PNP BJT, the emitter is made of p-type material, the base is made of n-type material, and the collector is made of p-type material.

When a small current is applied to the base-emitter junction, it allows a much larger current to flow from the emitter to the collector. This current amplification is quantified by a parameter called the current gain, denoted by the symbol β. The current gain is the ratio of the output current (collector current) to the input current (base current).

BJTs are known for their high current gain and fast switching speeds, making them suitable for a wide range of applications, including audio amplifiers, signal processing circuits, and power electronics. Additionally, they are also used in analog circuits, such as operational amplifiers and voltage regulators, due to their ability to provide precise control over the flow of current, but it is critical to manage the heat generated during their operation to ensure optimal performanceTo address this issue, heat sinks and other thermal management techniques are often employed to dissipate heat and maintain optimal operating conditions.

Recommended Reading: NPN vs PNP BJT Transistor: Understanding the basics

Illustration of PNP and NPN BJT transistor types.

Field-Effect Transistors (FETs)

The most common type of FET is the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). In a MOSFET, a thin insulating layer of metal oxide separates the gate terminal from the semiconductor material. By applying a voltage to the gate, an electric field is created that controls the flow of charge carriers between the source and drain terminals.

MOSFETs offer several advantages over BJTs, including lower power consumption, higher input impedance, and the ability to be miniaturized more easily. These characteristics make MOSFETs ideal for use in digital circuits, such as microprocessors and memory chips.

Another type of FET is the Junction Field-Effect Transistor (JFET), which is similar to the MOSFET but uses a pn junction instead of a metal-oxide layer to control the flow of charge carriers. JFETs also come in n-channel and p-channel varieties and are known for their high input impedance. They are commonly used in analog circuits, such as amplifiers and oscillators.

FETs are widely used in a variety of applications, ranging from digital logic circuits to power electronics and radio-frequency (RF) devices. Their ability to control the flow of charge carriers using an electric field makes them versatile and efficient components in modern electronics. In fact, as transistor technology continues to evolve, FETs will likely play an increasingly important role in the development of new electronic devices and systems.

How Transistors Work

A transistor is essentially a switch that can control the flow of electric current. It has three terminals: the emitter, the base, and the collector in a Bipolar Junction Transistor (BJT), or the source, the gate, and the drain in a Field-Effect Transistor (FET). The behavior of the transistor depends on the voltages applied to these terminals.

In a BJT, a small current applied to the base-emitter junction allows a much larger current to flow from the emitter to the collector. This current amplification is a key feature of BJTs. The ratio of the output current (collector current) to the input current (base current) is called the current gain, denoted by the symbol β.

In a FET, the flow of charge carriers between the source and drain terminals is controlled by an electric field, which is created by applying a voltage to the gate terminal. Unlike BJTs, FETs do not require a base current to operate, which makes them more energy-efficient.

The ability of transistors to control the flow of electric current makes them useful in a wide range of applications. They can be used to amplify signals, as in audio amplifiers and radio transmitters, or to switch signals on and off, as in digital circuits. By combining millions or even billions of transistors on a single chip, it is possible to create complex electronic devices like microprocessors and memory chips.

The Role of the Base, Emitter, and Collector

The emitter is the layer from which charge carriers are injected into the base. It is heavily doped with either n-type or p-type impurities, depending on whether the transistor is an NPN or PNP type. The high concentration of charge carriers in the emitter ensures that a sufficient number of carriers are available for injection into the base.

The base is the middle layer and is lightly doped. Its primary function is to control the flow of charge carriers from the emitter to the collector. The base is thin, which allows for efficient control of the current flow. When a small current is applied to the base-emitter junction, it modulates the flow of charge carriers from the emitter to the collector, enabling the transistor to amplify or switch electrical signals.

The collector is the layer that collects the charge carriers from the base. Like the emitter, it is heavily doped, but its doping type is opposite to that of the emitter. The collector is designed to handle the high current flow resulting from the amplification process. It is typically larger than the emitter to dissipate heat generated during operation and to prevent the transistor from overheating.

The interaction between the emitter, base, and collector is what allows the transistor to function as an amplifier or switch, and understanding its operation is essential for designing and optimizing transistor-based circuits.

The Role of Voltage in Transistor Function

Voltage plays a critical role in the operation of a transistor. It is the driving force that controls the flow of charge carriers within the transistor, thereby determining its amplification and switching properties.

In a Bipolar Junction Transistor (BJT), the voltage applied to the base-emitter junction controls the flow of charge carriers from the emitter to the collector. When a positive voltage is applied to the base of an NPN BJT (or a negative voltage to a PNP BJT), it reduces the barrier at the base-emitter junction, allowing charge carriers to flow from the emitter to the base. This current then modulates the flow of charge carriers from the emitter to the collector, enabling the transistor to amplify or switch electrical signals.

Moreover, the voltage at the collector-base junction also plays a role in the operation of a BJT. Suppose, this junction is reverse-biased (i.e., a negative voltage is applied to the collector of an NPN BJT or a positive voltage to a PNP BJT).In that case, it prevents charge carriers from flowing from the collector to the base, ensuring that the current flow is primarily from the emitter to the collector.

In a Field-Effect Transistor (FET), on the other hand, the voltage applied to the gate terminal creates an electric field that controls the flow of charge carriers between the source and drain terminals. By varying the gate voltage, the conductivity of the channel between the source and drain can be modulated, allowing the transistor to function as a variable resistor or a switch.

Furthermore, in both BJTs and FETs, the voltages applied to the terminals must be carefully controlled to ensure proper operation. Excessive voltage can lead to breakdown and permanent damage to the transistor. Therefore, voltage regulation and protection circuits are often used in transistor-based devices to maintain the voltages within safe limits.

The role of voltage in transistor function is a fundamental aspect of semiconductor physics and is crucial for understanding how transistors work. By controlling the voltages applied to the terminals of a transistor, it is possible to manipulate the flow of charge carriers within the transistor, enabling it to amplify or switch electrical signals.

Applications of Transistors

Transistors have a wide range of applications due to their ability to amplify and switch electronic signals. They are crucial for modern electronic devices and systems and are utilized in various applications across different industries.

One of the primary applications of transistors is in amplification circuits. In audio systems, for example, transistors are used in the amplification stage to increase the amplitude of the audio signal before it is sent to the speakers. Similarly, in radio and television broadcasting, transistors are used to amplify the radio frequency signals before they are transmitted.

Transistors also play a crucial role in digital electronics. They are used as switches in digital circuits to control the flow of digital signals. In a digital circuit, a transistor can be in one of two states: on or off, representing the binary values 0 and 1. This switching capability is the basis for digital logic, which is used in computers, smartphones, and many other digital devices.

In computer processors, billions of transistors are integrated into a single chip to perform complex computations. Each transistor acts as a switch that controls the flow of digital signals through the processor's circuits. The speed at which these transistors can switch on and off determines the processor's clock speed, which is a measure of its computational power.

Transistors are also used in power electronics to control and convert electrical power. For example, in a power supply unit, transistors are used to convert the alternating current (AC) from the main supply into direct current (DC) for electronic devices. They can also be used in inverters to convert DC back into AC.

In radio-frequency (RF) applications, transistors are used in oscillators and mixers to generate and modulate RF signals. They are also used in RF amplifiers to increase the power of the RF signals before they are transmitted.

The versatility and efficiency of transistors have made them indispensable in modern electronics. As transistor technology continues to evolve, they will likely play an increasingly important role in the development of new electronic devices and systems. Understanding the applications of transistors is essential for anyone working in electronics or related fields.

Transistors in Amplification

Transistors play a pivotal role in amplification, a process that increases the power, voltage, or current of a signal. They are critical to diverse amplification systems, from small audio amplifiers to large radio and television broadcast transmitters.

In an amplifier circuit, a transistor can convert a small input signal into a larger output signal. This is achieved by using the small input signal to modulate a larger supply of power. The transistor, acting as a variable valve, controls the amount of current flowing through it based on the input signal. This results in an output signal that is a larger copy of the input signal.

There are different types of transistor amplifiers, each with its unique characteristics and applications. Common-emitter amplifiers, for instance, are widely used due to their high voltage and power gain. In this configuration, the emitter terminal of the transistor is common to both the input and output and the input signal is applied to the base-emitter junction.

Another type is the common-base amplifier, where the base terminal is common to both the input and output. This type of amplifier has a high-frequency response and is often used in radio frequency applications.

The common-collector amplifier, also known as an emitter follower, is another type where the collector terminal is common to both the input and output. This amplifier has a high input impedance, low output impedance, and a voltage gain of approximately one, making it ideal for impedance matching and buffering applications.

In audio amplification, transistors are used in various stages of an audio system. For instance, in a typical stereo system, the audio signal from the source is first pre-amplified using a transistor-based preamplifier. This pre-amplified signal is then fed into a power amplifier, also built with transistors, which further amplifies the signal to drive the speakers.

In radio and television broadcasting, transistors are used in the transmitter's power amplifier stage to amplify the radio frequency signals before they are sent to the antenna for transmission.

The use of transistors in amplification has revolutionized electronics, enabling the development of a wide range of electronic devices and systems. Their ability to amplify signals with high fidelity and efficiency has made them an indispensable component in modern electronics.

Recommended Reading: The first topological acoustic transistor

Transistors in Switching

In the 'on' state, a transistor allows current to flow between its collector and emitter (for a Bipolar Junction Transistor, or BJT) or between its drain and source (for a Field-Effect Transistor, or FET). This state represents the binary value 1. Conversely, in the 'off' state, the transistor prevents current flow, representing the binary value 0.

The switching action of a transistor is controlled by the voltage applied to its base (for a BJT) or gate (for a FET). For a BJT, a sufficient base-emitter voltage causes the transistor to conduct, while a lack of base-emitter voltage causes it to stop conducting. For a FET, a sufficient gate-source voltage induces a conducting channel between the source and drain, while a lack of gate-source voltage removes this channel.

Transistors' switching capabilities are utilized in a variety of digital circuits, including logic gates, flip-flops, and memory cells. Logic gates, which perform basic logical functions such as AND, OR, and NOT, are the building blocks of digital circuits. Flip-flops are used to store binary data, while memory cells, composed of several transistors, form the basis of computer memory.

In microprocessors, millions or even billions of transistors are used to perform complex computations. Each transistor acts as a switch that controls the flow of digital signals through the processor's circuits. The speed at which these transistors can switch on and off, typically measured in gigahertz (GHz), determines the processor's clock speed, which measures its computational power.

Transistors are also used in power electronics as switches to control and convert electrical power. For example, in a switching power supply, transistors are used to switch the input power on and off rapidly to convert the voltage level.

The use of transistors as switches has revolutionized the field of electronics, enabling the development of digital technology and transforming every aspect of society, from communication and entertainment to science and medicine.

Transistors in Sustainable and Green Technologies

Transistors, due to their versatility and efficiency, have found their way into sustainable and green technologies. They play a crucial role in the development and operation of these technologies, contributing to energy efficiency and the reduction of carbon emissions.

In renewable energy systems, such as solar panels and wind turbines, transistors are used in power electronic converters to convert and control the electrical power generated. For instance, in a solar panel system, the direct current (DC) generated by the solar cells is converted into alternating current (AC) by a power inverter. Transistors in the inverter switch on and off rapidly to create an AC waveform from the DC input, allowing the generated power to be used in AC electrical systems or fed into the power grid.

Furthermore, transistors also play a key role in energy-efficient lighting solutions, such as Light Emitting Diodes (LEDs). LEDs use tiny semiconductor devices (essentially miniature transistors) to produce light, consuming significantly less energy than traditional incandescent or fluorescent lights. Additionally, the dimming and color control of LED lights are also achieved through the use of transistors.

Moreover, in electric vehicles (EVs), transistors are used in the motor controllers to control the power delivered to the electric motor. They are also used in the charging systems to manage the charging of the vehicle's battery. The efficiency of these transistor-based systems contributes to the overall energy efficiency of the EV, making them a more sustainable mode of transportation compared to conventional internal combustion engine vehicles.

In smart grid technology, transistors are used in various applications such as power converters, energy storage systems, and smart meters. They enable the efficient management and distribution of electricity, facilitating the integration of renewable energy sources into the grid and improving the overall efficiency and reliability of the power system.

Transistors are also used in energy-efficient appliances and systems in homes and businesses, contributing to energy savings and reducing the carbon footprint of these buildings. For example, in air conditioning systems, transistors are used in the control circuits to regulate the operation of the system, optimizing its performance and energy consumption.

The use of transistors in sustainable and green technologies is a testament to their versatility and efficiency. As the world continues to strive for sustainability and the reduction of carbon emissions, the role of transistors in these efforts is likely to become increasingly important. Understanding the role of transistors in these technologies is crucial for anyone working in the field of electronics or sustainable technology.

The Future of Transistors

The future of transistors is closely tied to the ongoing evolution of technology and the demands of increasingly sophisticated electronic devices. As we continue to push the boundaries of miniaturization and performance, new transistor designs and materials are being explored.

One of the key challenges in transistor technology is the physical limit of silicon, the material most commonly used in transistor fabrication. However, as transistors become smaller, the properties of silicon begin to change, leading to issues such as increased power consumption and heat generation. To overcome these challenges, researchers are exploring alternative materials such as graphene and molybdenum disulfide, which have properties that could potentially enable even smaller and more efficient transistors.

In addition, another area of research is the development of three-dimensional (3D) transistors. Traditional transistors are planar and occupy a two-dimensional space. However, 3D transistors, such as FinFETs (Fin Field Effect Transistors), have a vertical structure that allows for greater control of the current flow, leading to improved performance and energy efficiency.

Quantum computing represents another frontier for transistor technology. Quantum bits, or qubits, can exist in multiple states at once, unlike traditional bits that can be either 0 or 1. This property could potentially enable quantum computers to perform complex calculations much faster than current computers. However, creating stable qubits is a significant challenge, and researchers are exploring the use of transistors to control and manipulate qubits.

Transistors are also expected to play a crucial role in the development of neuromorphic computing, a field of study that aims to mimic the neural structure of the human brain to create more efficient and powerful computing systems. Neuromorphic chips use transistors to emulate neurons and synapses, potentially leading to computers that can learn and adapt in ways similar to the human brain.

Regarding sustainable and green technologies, the role of transistors is likely to expand. As the demand for energy-efficient and low-carbon technologies grows, the use of transistors in applications such as renewable energy systems, energy-efficient lighting, and electric vehicles is expected to increase.

The future of transistors is undoubtedly exciting and filled with potential. As we continue to innovate and push the boundaries of what is possible, transistors will undoubtedly continue to play a crucial role in shaping the future of technology.

Conclusion

Transistors, since their invention, have been instrumental in the rapid advancement of technology. They have revolutionized the field of electronics, enabling the development of a wide range of devices, from simple radios to complex computers. As we continue to innovate and push the boundaries of what is possible, transistors will undoubtedly continue to play a crucial role in shaping the future of technology.

The ongoing research and development in the field of transistor technology promise exciting advancements. From alternative materials to three-dimensional designs, the future of transistors holds immense potential. The exploration of quantum computing and neuromorphic computing also presents new frontiers for transistor technology.

As the demand for energy-efficient and low-carbon technologies grows, the use of transistors in applications such as renewable energy systems, energy-efficient lighting, and electric vehicles is expected to increase.

Frequently Asked Questions (FAQs)

1. What is a transistor and what does it do?

A transistor is a semiconductor device that can amplify or switch electronic signals and electrical power. It is a fundamental building block of modern electronic devices and is commonly used in a wide variety of applications, including signal amplification, regulation of electrical signals, and digital switching.

2. What are the different types of transistors?

There are several types of transistors, including Bipolar Junction Transistors (BJTs), Field-Effect Transistors (FETs), and Junction Gate Field-Effect Transistors (JFETs). Each type has its unique characteristics and applications.

3. How do transistors work in amplification and switching?

In amplification, a transistor can convert a small input signal into a larger output signal. This is achieved by using the small input signal to modulate a larger supply of power. In switching, a transistor can be in one of two states: on (conducting) or off (non-conducting), representing the binary values 1 and 0, respectively.

4. What is the role of transistors in sustainable and green technologies?

Transistors play a crucial role in sustainable and green technologies. They are used in renewable energy systems, such as solar panels and wind turbines, to convert and control the electrical power generated. They are also used in energy-efficient lighting solutions, electric vehicles, and smart grid technology.

5. What is the future of transistors?

The future of transistors is closely tied to the ongoing evolution of technology and the demands of increasingly sophisticated electronic devices. New transistor designs and materials are being explored to overcome the challenges of miniaturization and performance. Transistors are also expected to play a crucial role in the development of quantum computing and neuromorphic computing.

References

[1] The Transistor - Linda Hall Library. The Linda Hall Library.

[2] Zorpette, G. How the First Transistor Worked. IEEE Spectrum.

[3] Electronics notes. First Silicon Transistor Invention.

[4] ScienCentral, M. Evolution of Transistors.

[5] Wright, G. What is a MOSFET
